Troubleshooting chart - see
"Standard Repairs, Trouble-
shooting" handbook.

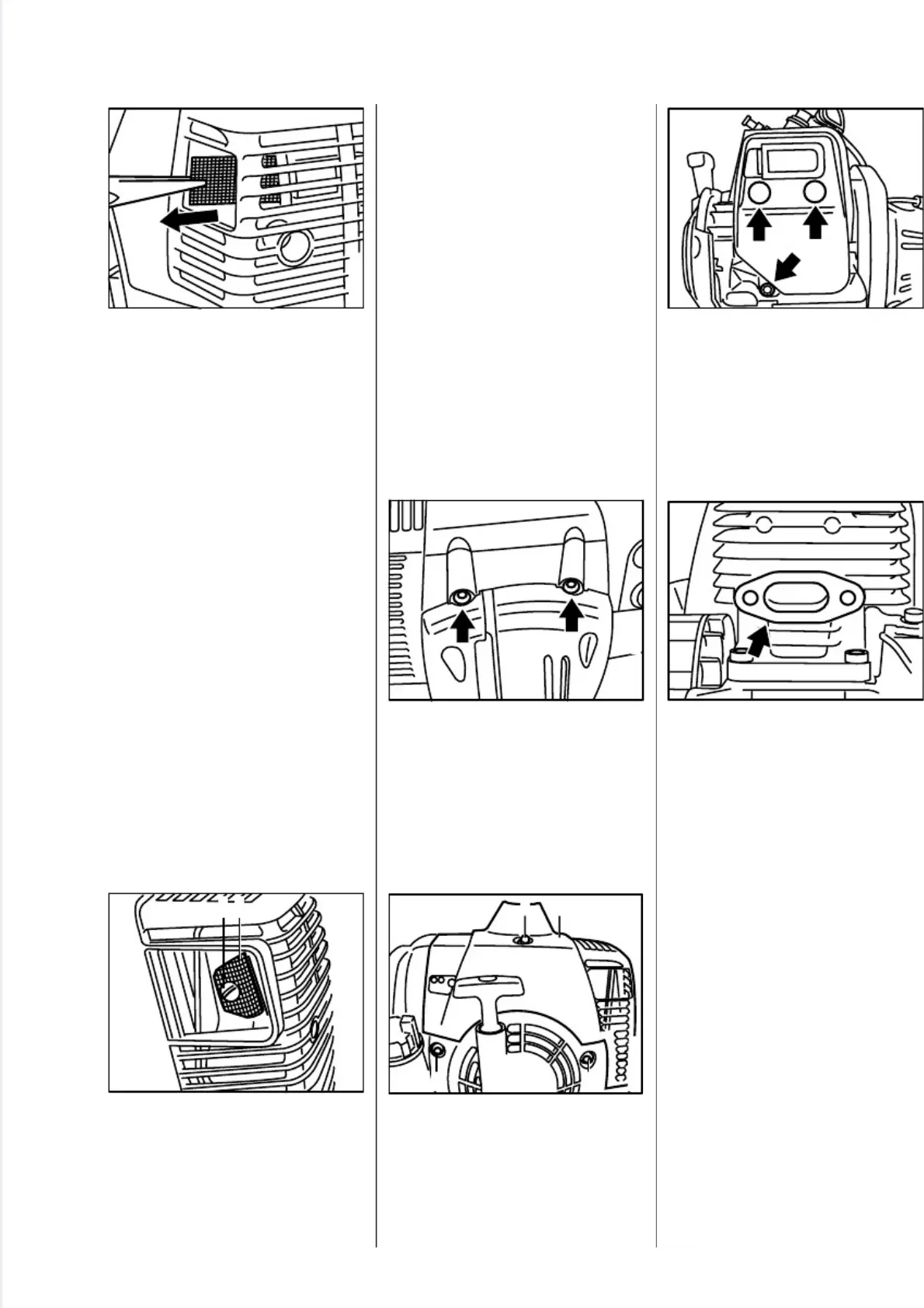

Spark arresting screen
FS 120...350, FR 350
•
Pull spark arresting screen out of
the muffler.
- Clean or replace spark arresting
screen if necessary.
FS 400/450, FR 450
•
Take out the screw (1).
•
Pull spark arresting screen (2)
out of the muffler.
- Clean or replace spark arresting
screen if necessary.
- Tighten down screw to 2.5 Nm
(1.8 lbf.ft).
Muffler
FS 400/450, FR 450
- Remove air filter cover -see 8.1.
All models
•
Remove screws from clutch
housing.
•
Take out screws (1).
•
Press down the decompression
valve (2).
•
Remove the shroud (3).
•
Take out the screws.
- Lift away the muffler.
•
Remove the gasket.
Reassemble in the reverse
sequence.
- Use a new gasket.
- Tighten down screws to 8.5 Nm
(6.3 lbf.ft).
