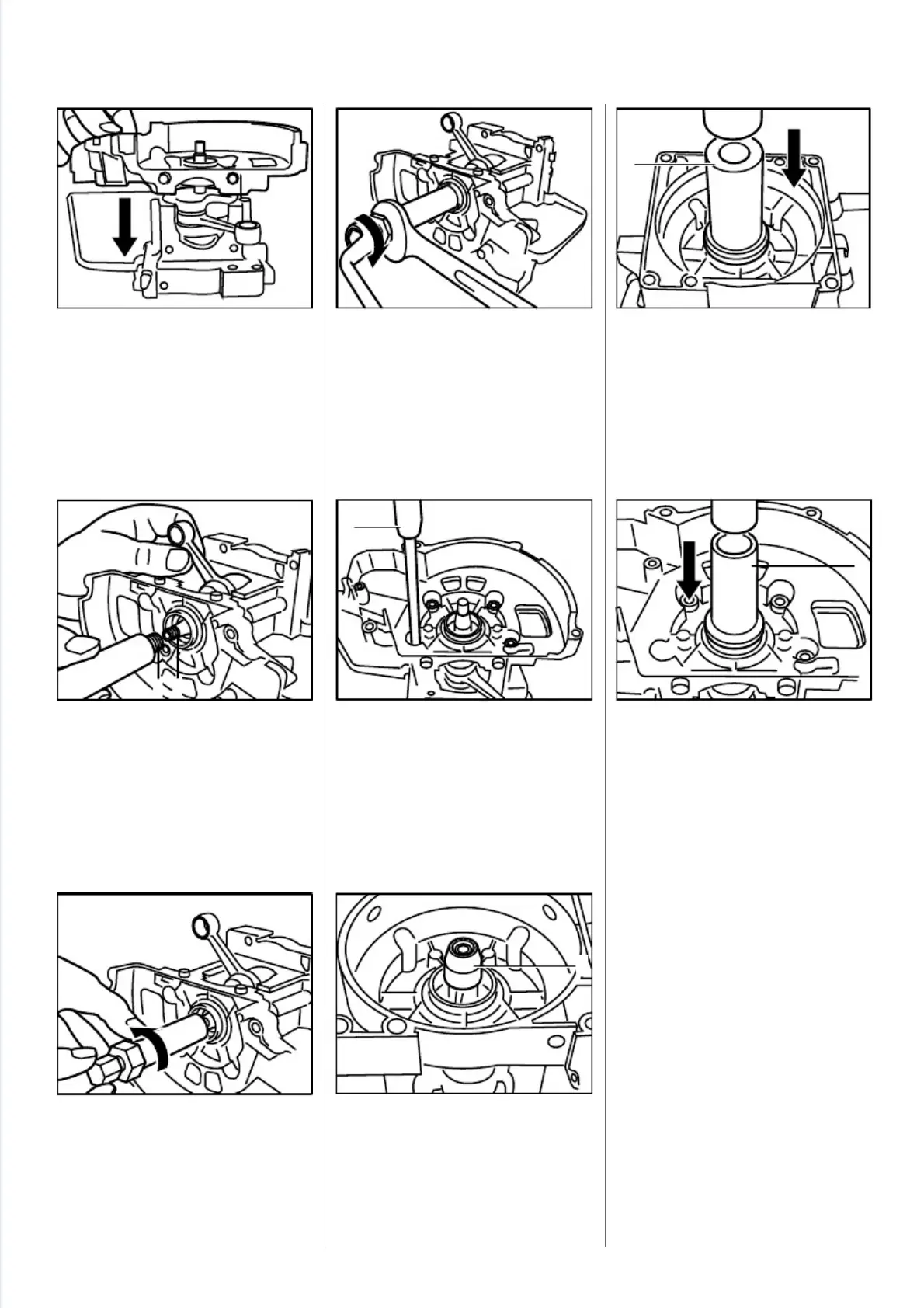

Fit starter side of crankcase over
the crankshaft stub.
•
Hold crankshaft steady and
screw the spindle (1) clockwise
onto the stub (2) as far as stop.
•
Hold the spindle steady and
rotate sleeve counterclockwise
until it butts against the ball
bearing.
•
Hold the sleeve steady and
rotate spindle clockwise until the
two halves of the crankcase are
together.
- Remove the installing tool.
•
Insert screws and use socket (1)
0812 542 2104 to tighten them
down to 8.5 Nm (6.3 lbf.ft).
- Lubricate sealing lips of oil seals
with grease -see 13.2.
•
Fit installing sleeve (1) 4112 893
2400 over the clutch end of the
crankshaft.
- Slide the oil seal, open side
facing the crankcase, over the
installing sleeve.
•
Press home with press sleeve
(1) 1118 893 2401.
- Remove the installing sleeve.
- Slide the oil seal, open side
facing the crankcase, over the
starter end of the crankshaft.
•
Press home with press sleeve
(1) 4112 893 2401.
Assemble as other parts in the
reverse sequence.
- Adjust throttle cable -see 7.5.2.
2
5
0
R
A
0
8
2
V
A
2
5
0
R
A
0
7
9
V
A
2
5
0
R
A
0
8
5
1
V
A
2
5
0
R
A
0
8
0
21
V
A
2
5
0
R
A
0
8
3
1
V
A
2
5
0
R
A
0
8
6
1
V
A
2
5
0
R
A
0
8
4
1
V
A
2
5
0
R
A
0
8
1
V
A
22 FS 120, 200, 300, 350, 400, 450, FR 350, 450
