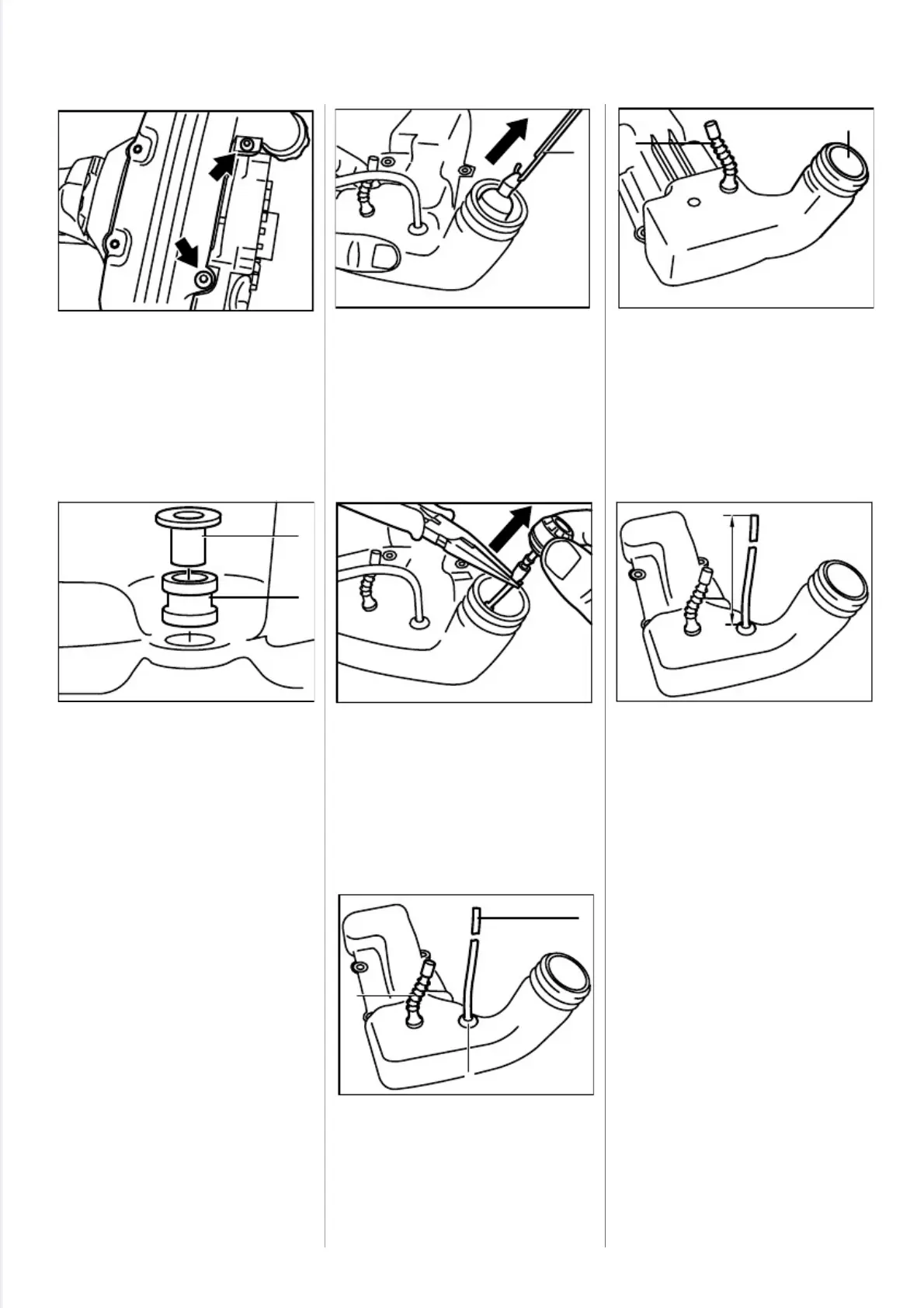

Take out the screws.
- Remove the fuel tank.
•
Take sleeves (1) out of
grommets.
•
Ease grommets (2) out of fuel
tank.
- Remove fuel hoses if necessary.
Reassemble in the reverse
sequence.
- Tighten down screws to 6.0 Nm
(4.4 lbf.ft).
Fuel hoses
- Unscrew filler cap and remove
together with retainer.
•
Use hook (1) 5910 893 8800 to
pull pickup body out of tank.
•
Pull pickup body off the fuel hose.
•
Pull out the fuel hose (1).
•
Pull out the return hose (2)
together with grommet (3).
Install in the reverse sequence.
•
On FS 400/450, FR 450, fit fuel
hose (1) next to filler neck (2).
•
Length "A" of return hose must
be 190 mm (7.5") on FS
120...350 and 200 mm (7.9") on
FS 400/450.
