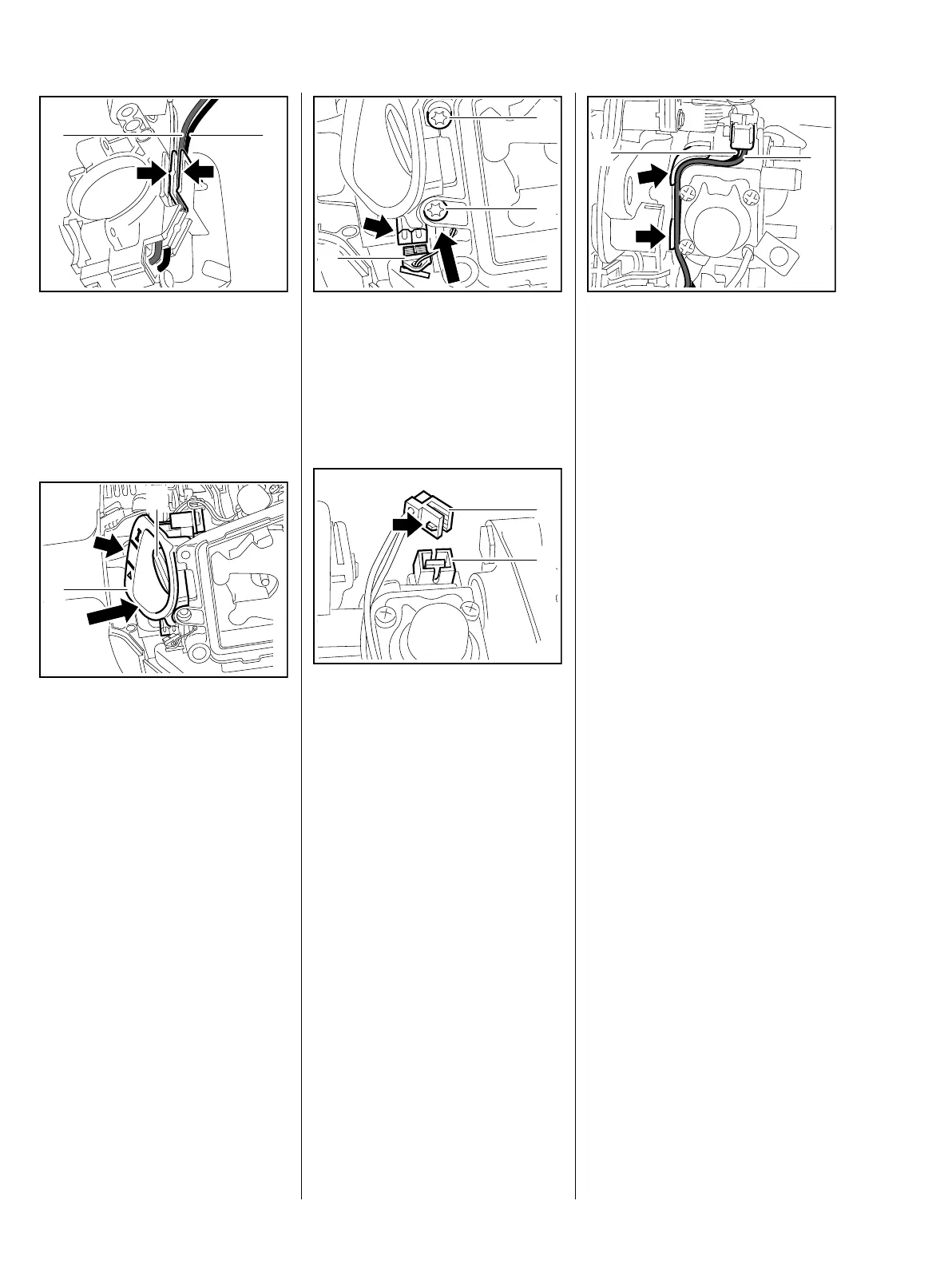

Run the black lead under the red
lead – for right guide, see illustration
: Press black lead (2) and red
lead (1) as far as they will go into
the guide that is offset by
90° (arrows)
– Move choke lever to position "F"
: Orient bushing (1) so that the
scale (arrow) faces the cylinder
: Guide bushing (1) over the choke
lever (2) and position
5904RA182 TG
1 2
1
5904RA183 TG
2
: Insert and tighten down the
screws (1)
: Press plug (2) into the diagnostic
connector (arrow) as far as it will
go
: Orient plug (1) so that the
lug (arrow) aligns with the groove
in the mount (2)
– Push plug into the mount as far
as it will go
2
1
5904RA184 TG
1
1
5904RA185 TG
2
Do not expose plug to tensile loads,
thus run leads so that they form a
90° loop at the plug.
: Press black lead (1) as far as it
will go into the guides (arrows),
starting at the plug
: Press red lead (2) as far as it will
go into the guides (arrows),
starting at the plug
– Install wiring harness and throttle
cable on engine, install
M-Tronic leads in cable holder,
b 6.6.3
– Reassemble remaining parts in
reverse order
1
2
