FS 260 C, FS 360 C
English
22

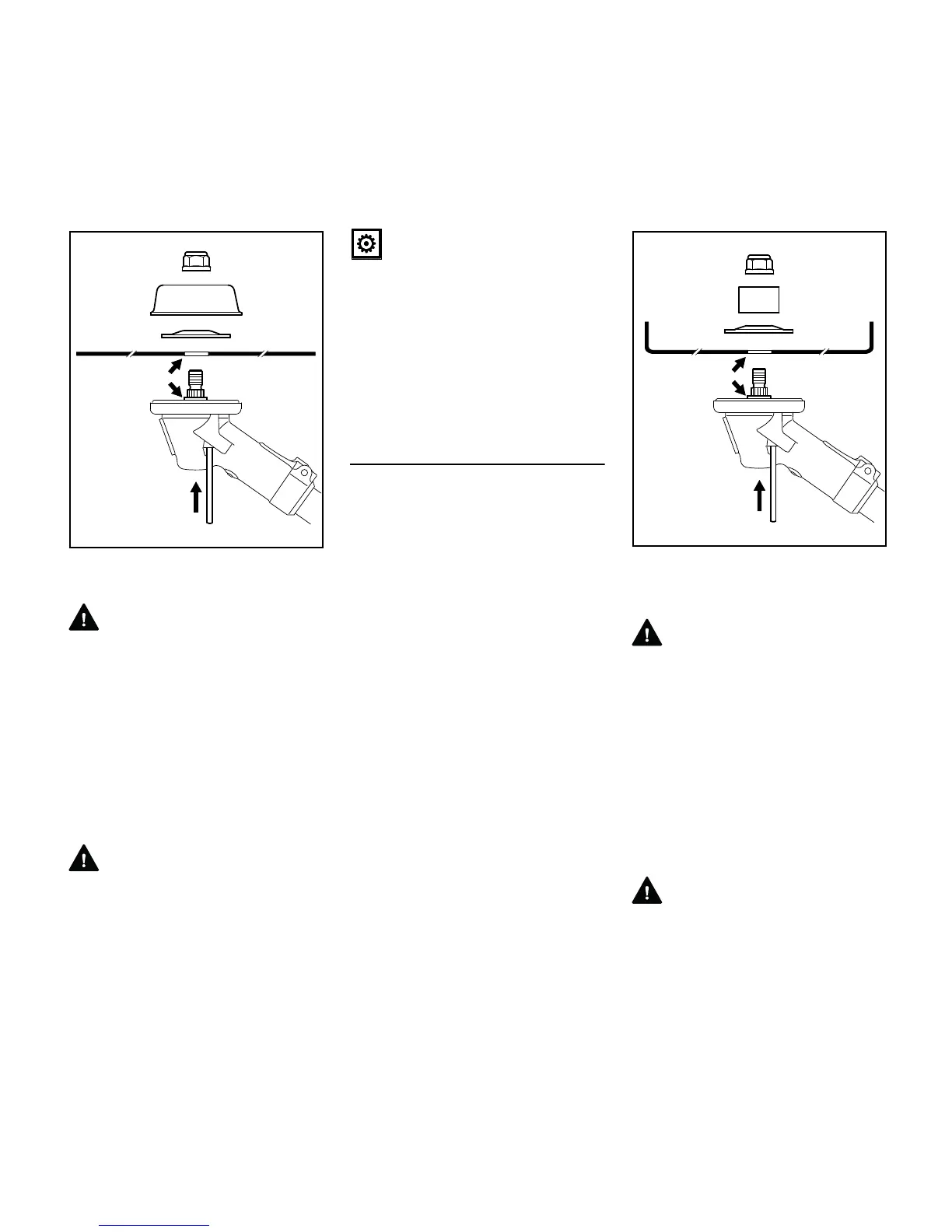

N Place the cutting attachment (1) in
position.
WARNING
Collar (a) must locate in the cutting
attachment's mounting hole (b).
Securing the cutting attachment
N Fit the thrust washer (2) – convex
side must face up.
N Fit the rider plate (3).
N Block the shaft.
N Fit the nut (4) counterclockwise and
tighten it down firmly.
WARNING
If the mounting nut has become too
loose, fit a new one.
NOTICE
Remove the tool used to block the shaft.
Removing the cutting attachment
N Block the shaft.
N Unscrew the mounting nut
clockwise.
N Pull the cutting attachment with its
mounting hardware off the gearbox.
Mounting Shredder Blade 270-2
Notice on new machines that come
standard with a mowing head only: In
addition to the "shredder blade mounting
kit", a "shredder blade retrofit kit" is
required to mount a shredder blade. Kits
are available from your servicing dealer.
N Use guard ring for mowing
attachments.
N Place the shredder blade (1) in
position – the cutting edges must
point upwards.
WARNING
Collar (a) must locate in the cutting
attachment's mounting hole (b).
Securing the cutting attachment
N Fit the thrust washer (2) – convex
side must face up.
N Fit the shredder blade guard ring (3)
– opening must face up.
N Block the shaft.
N Fit the nut (4) counterclockwise and
tighten it down firmly.
WARNING
If the mounting nut has become too
loose, fit a new one.
2
3
1
4
002BA409 KN
b
a
b
002BA410 KN
3
4
2
a
1
