WARNING
The limit stop (4) is approved as a
deflector for circular saw blades only
and must therefore be mounted before
fitting a circular saw blade. It is also
necessary to change the guard ring (5),
see "Mounting the Cutting Attachment" /
"Mounting Circular Saw Blades".

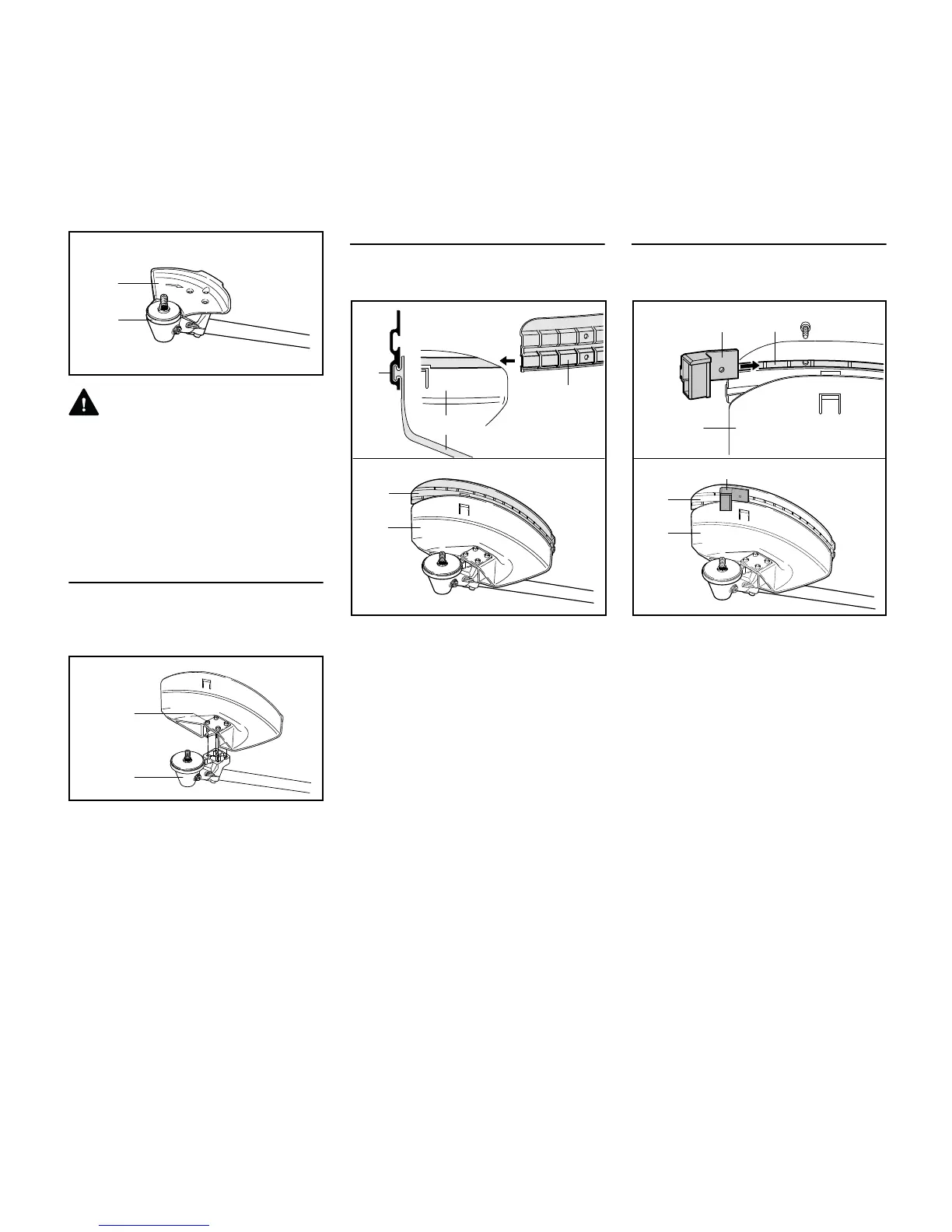

Mounting the Deflector
Deflectors (1 to 4) are mounted to the
gearbox in the same way.
N Remove dirt from joints on gearbox
and deflector – make sure that no
dirt gets into the screw holes in the
gearbox.
N Place the deflector on the
gearbox (6).
N Insert the screws (7) and tighten
them down firmly.
Fitting the Skirt
When using mowing heads
The deflector for metal mowing
attachments (1) must be equipped with
the skirt (2) when you use mowing
heads.
N Slide the lower guide slot (3) of the
skirt (2) onto the deflector (1) – it
must snap into position.
Mounting the Blade
When using nylon line mowing heads
The deflector for metal mowing
attachments (1) must be equipped with
the line limiter blade (4) when you use
nylon line mowing heads.
N Push the blade (4) into the upper
guide slot (5) on the skirt (2) and
line it up with the first hole.
N Insert the screw and tighten it down
firmly.
002BA517 KN
4
5
002BA520 KN
6
7
2
1
3
2
002BA526 KN
1
4
002BA527 KN
5
1
4
1
2

Stihl FS 450 Specifications

General

Engine Power	2.1 kW
Engine Type	2-stroke
Fuel Tank Volume	0.67 L
Sound Pressure Level	101 dB(A)
Shaft Type	Straight
Displacement	44.3 cm³
Cutting Attachment	Metal blade
Cutting Diameter	480 mm
