Stihl FS 70 User Manual

FS 70 RC
English
35
1 Fuel Pump
2 Fuel Filler Cap
3 Fuel Tank
4 Starter Grip
5 Spark Plug Boot
6 Muffler with Spark Arresting Screen
7 Drive Tube
8 Loop Handle
9 Barrier Bar (Special Accessory)
10 Carrying Ring
11 Momentary Stop Switch
12 Throttle Trigger Lockout
13 Throttle Trigger
14 Carburetor Adjusting Screws
15 Choke Lever
16 Air Filter Cover
17 Machine Support
# Serial Number

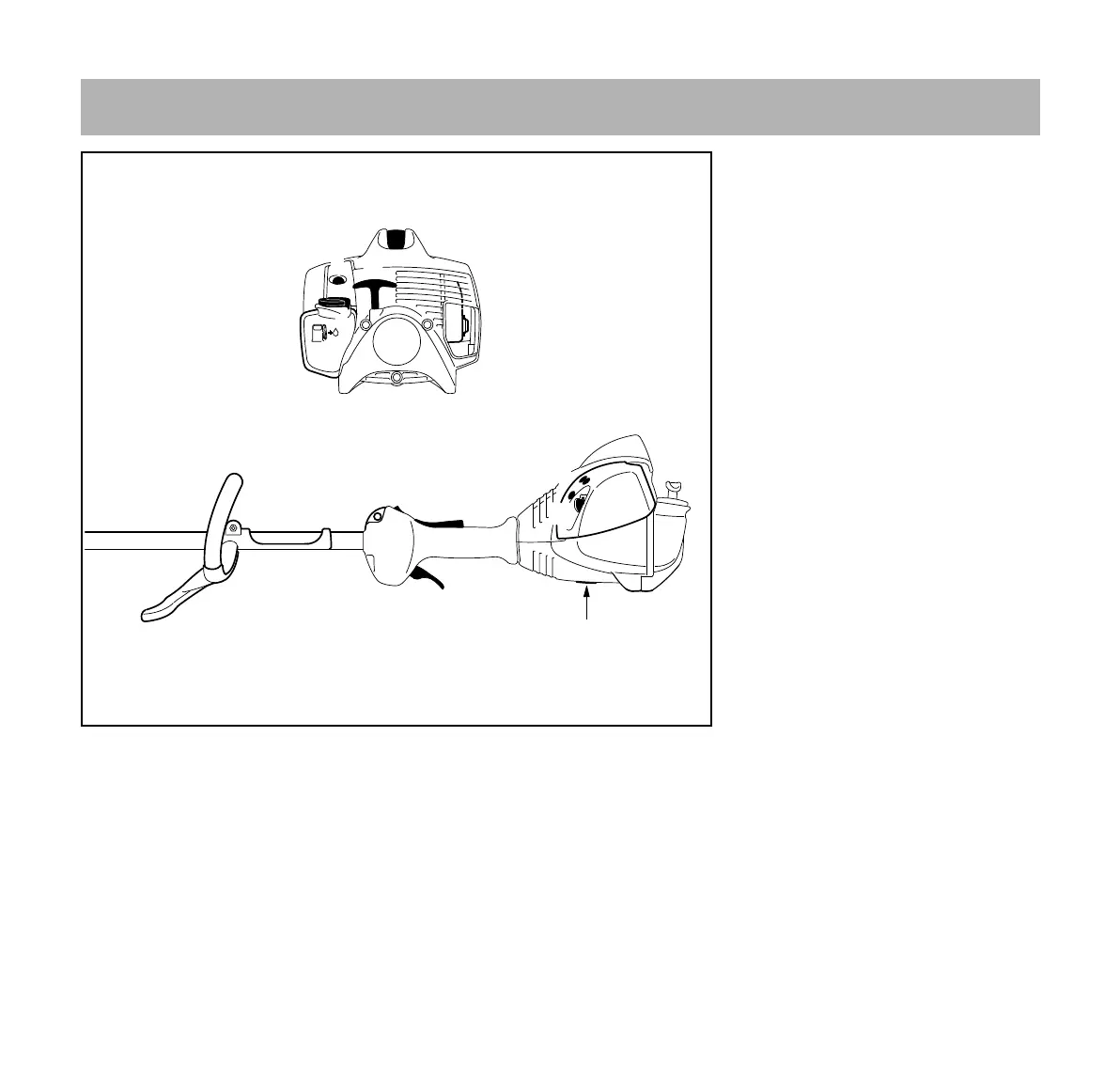

Main Parts
5
2
16
15
14
4
11
10
13
12
0414BA016 KN
#
8
7
1
3
6
17
9

Stihl FS 70 Specifications

General

Engine Displacement	27.2 cc
Engine Type	2-stroke
Shaft Type	Straight
Fuel Capacity	0.34 l
Engine Power	1.2 bhp
Overall Length	1.7 m
Starter System	Recoil
Power Output	0.9 kW
