Stihl FS 85 Service Manual

30 FC 75, FC 85, FH 75, FS 75, FS 80, FS 85, HL 75, KM 85, KW 85

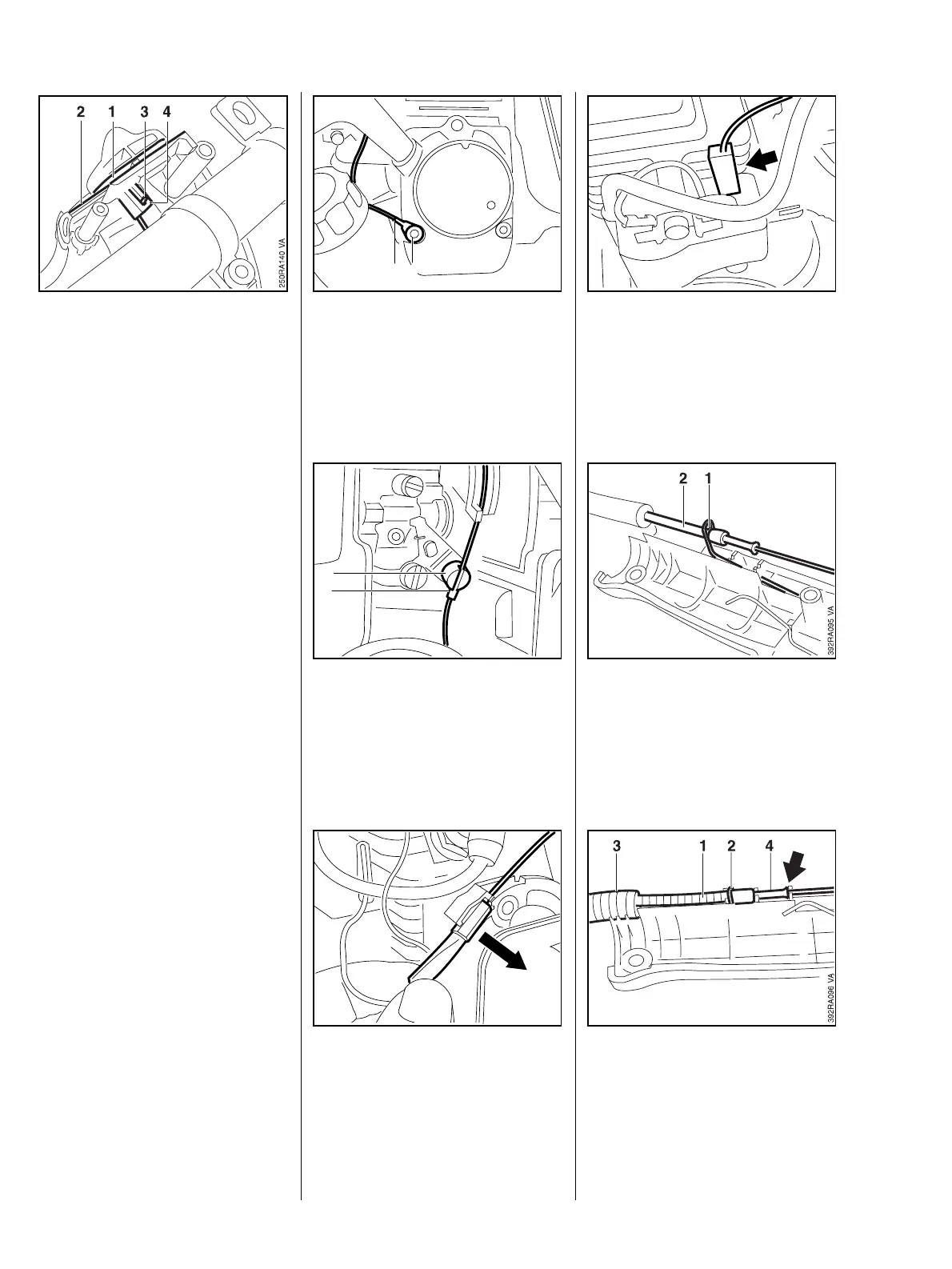

– Tighten down the clamp screws
firmly, b 3.2
: The slot (1) in the slide control
must engage over the outer edge
(2) of the handle molding.
: Torsion spring (3) must locate in
recess (4) in slide control.
– Remove the shroud, b 5.1
: Take out the screw (1).
: Remove the extended throttle
cable (2).
VA
936RA115
2 1
: Disconnect throttle cable nipple
(1) from slotted pin (2) on
carburetor’s throttle lever.
VA
936RA116
2
1
: Pull the throttle cable out of the
tensioner.
VA
936RA117
: Pull the short circuit wire
connector off the tag on the
ignition module.
– Remove the throttle trigger,
b 8.2.1
VA
936RA118
: Lift the contact spring (1) slightly
and remove the throttle cable (2).
Install in the reverse sequence.
: Check that the throttle cable (1),
contact spring (2), protective
tube (3) and insulator (4) are
properly seated.
8.2.3 Throttle Cable

Stihl FS 85 Specifications

General

Engine Type	2-stroke
Displacement	25.4 cc
Weight	5.2 kg
Shaft Type	Straight
Starter	Recoil
Vibration Damping	Yes
Power Output	0.95 kW
Fuel Capacity	0.44 liters
