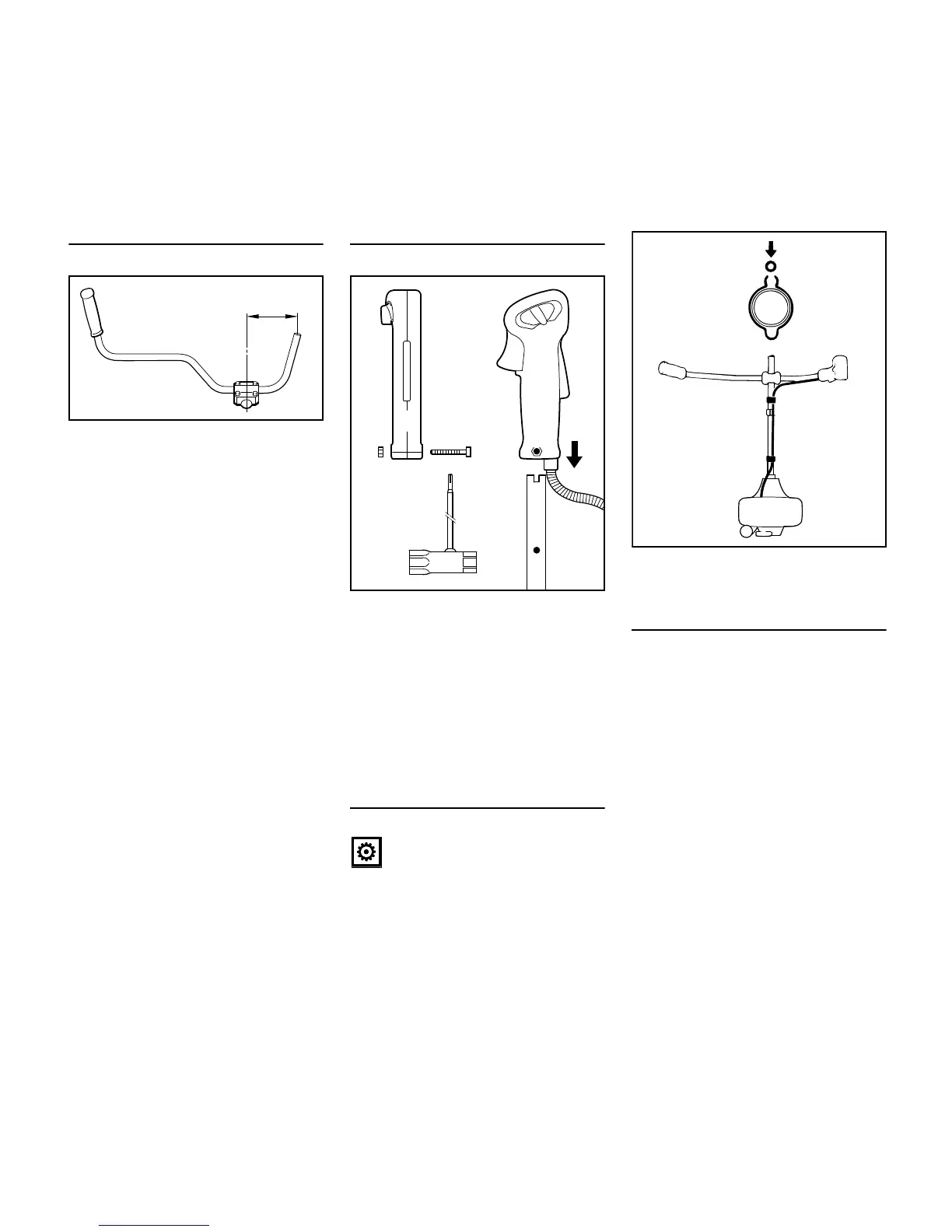

Securing the handlebar
N Place the handlebar (1) in the
handle support so that distance A is
no more than 15 cm (6 in) – the
rubber handle (5) must be on the left
(viewed from engine).
N Place the clamp (6) on the handle
support.
N Insert the screws (7) through the
holes in the parts and screw them
into the clamp (3) as far as stop.
N Line up the handlebar.
N Tighten down the screws firmly.
Mounting the control handle
N Take out the screw (8) – the nut (9)
remains in the control handle (10).
N Push the control handle onto the
end of the handlebar (1) until the
holes (12) line up – the throttle
trigger (11) must point towards the
gearbox.
N Insert the screw (8) and tighten it
down firmly.
Fitting the throttle cable
Do not kink the throttle cable or lay it in
tight radii – make sure the throttle trigger
moves freely.
N Push the throttle cable (13) into the
retainer (14).
Throttle cable adjustment
Some machine versions are equipped
with a throttle cable adjuster.
N Check adjustment of throttle cable –
see chapter on "Adjusting the
Throttle Cable".
1
A
002BA237 KN
5
1
8
10
11
12
002BA238 KN
12
9
002BA239 KN
13
14
13
14
14
