FS 87, FS 87 R
English
12
Approved Combinations
Select correct combination from the
table according to the cutting
attachment you intend to use.
For safety reasons only the cutting
attachments, deflectors, handles and
harnesses/shoulder straps shown in
each row of the table may be used
together. No other combinations are
permitted because of the risk of
accidents.
Cutting Attachments
Mowing heads
1 STIHL SuperCut 20
-
2
2 STIHL AutoCut C 25
-
-2
3 STIHL AutoCut 25-2
4 STIHL TrimCut 31-2
5 STIHL FixCut 25-2
6 STIHL PolyCut 20-3
Metal cutting attachments
7 Grass cutting blade 230-2
8 Grass cutting blade 230-4
9 Grass cutting blade 230-8
10 Grass cutting blade 250-40 Spezial
11 Brush knife 250-3
12 Scratcher tooth circular saw blade
200
13 Chisel tooth circular saw blade 200
Non-metal grass cutting blades, brush
knives and circular saw blades are not
approved.
Deflectors
14 Deflector only for mowing heads
15 Deflector with
16 Skirt and blade for all mowing heads
only (see "Mounting the deflector")
17 Deflector without skirt and blade for
all metal mowing attachments and
brush knife
18 Limit stop for circular saw blades
Handles
19 Loop handle
20 Loop handlewith
21 Barrier bar
22 Bike handle
Harnesses
23 Shoulder strap may be used
24 Shoulder strap must be used
25 Full harness may be used
26 Full harness must be used

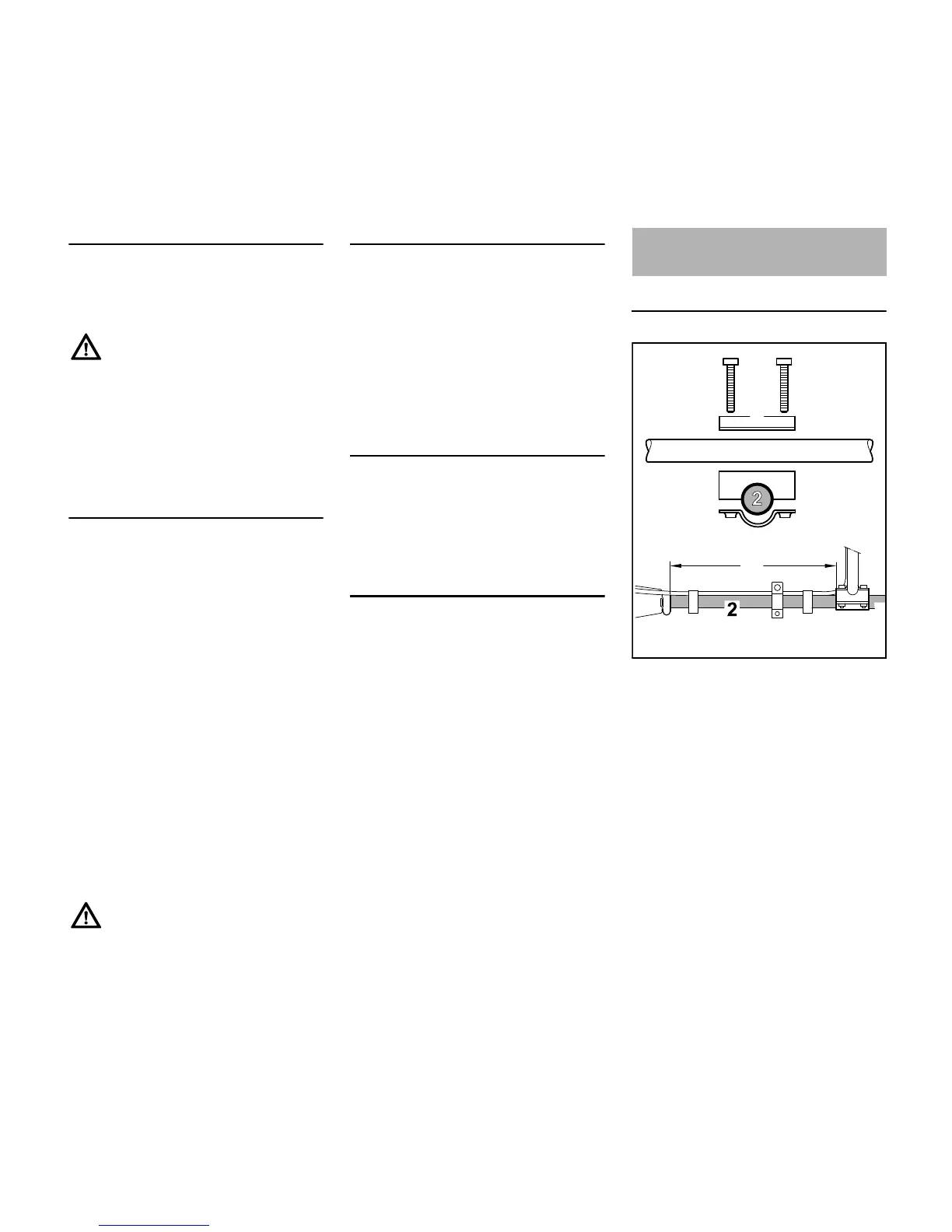

Mounting the handlebar
N Mount the handlebar (1) on the
drive tube (2) about 40 cm (15 in)
(A) forward of the engine housing.
N Place the clamp (3) and handle
support (4) against the drive tube
(2).
Mounting the Bike Handle
1
3
4
6
7
A
7
002BA236 KN
