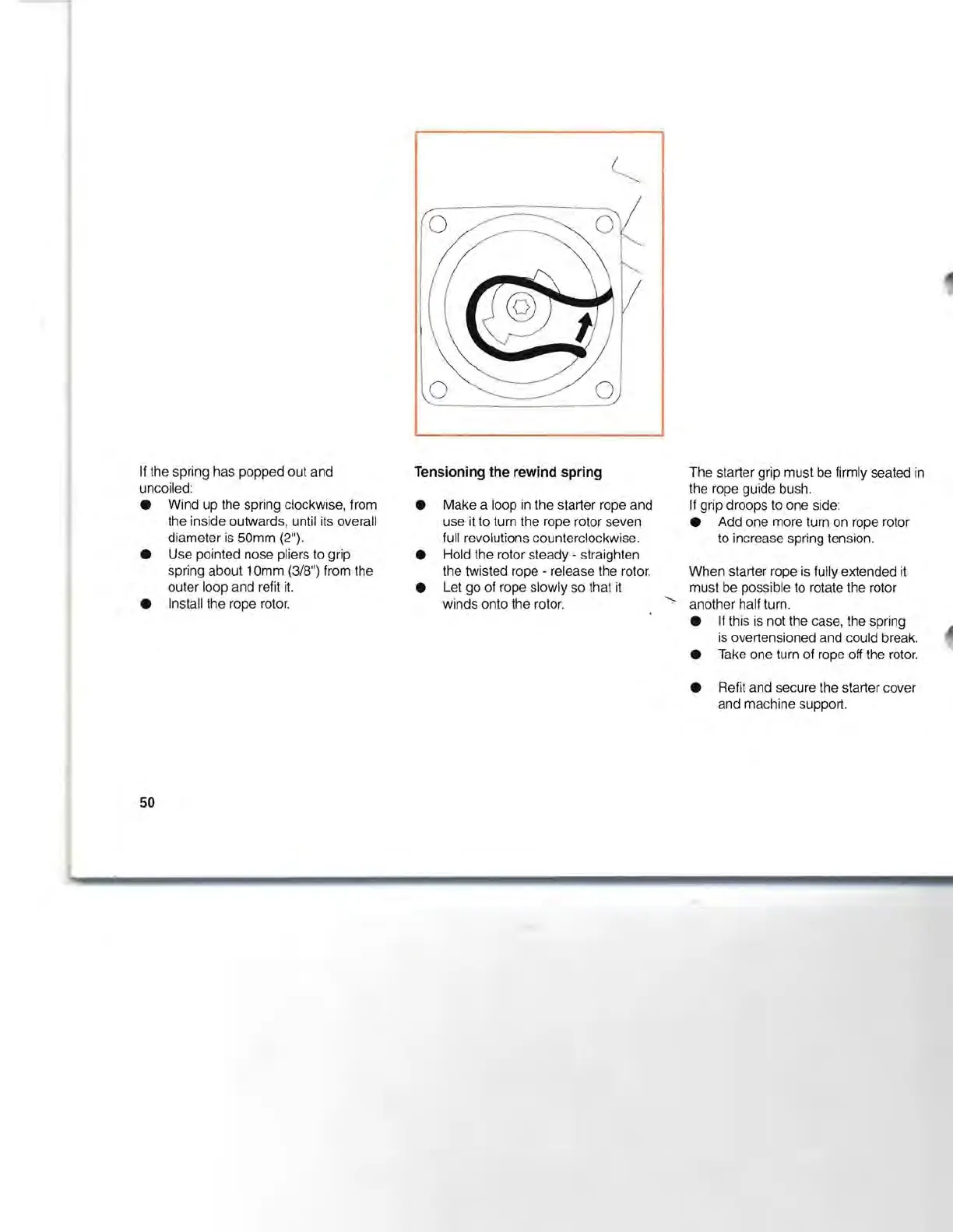

If the spring has popped out and
uncoiled:
• Wind up the spring clockwise, from
the inside outwards, until its overall
diameter is
50mm
(2").
• Use pointed nose pliers to grip
spring about 10mm
(318")
from the
outer loop and refit
it.
• Install the rope rotor.
50
Tensioning the rewind spring
• Make a loop
in
the starter rope and
use it to turn the rope rotor seven
full revolutions counterclockwise.
• Hold the rotor steady - straighten
the twisted rope - release the rotor.
• Let go of rope slowly so that
it
winds onto the rotor.
The
starter grip must be firmly seated
in
the rope guide bush.
If grip droops to one side:
• Add one more turn on rope rotor
to increase spring tension.
When
starter rope is fully extended it
must be possible to rotate the rotor
'-
another half turn.
• If this is not the case, the spring
is overtensioned and could break.
• Take one turn of rope off the rotor.
• Refit and secure the starter cover
and machine support.
