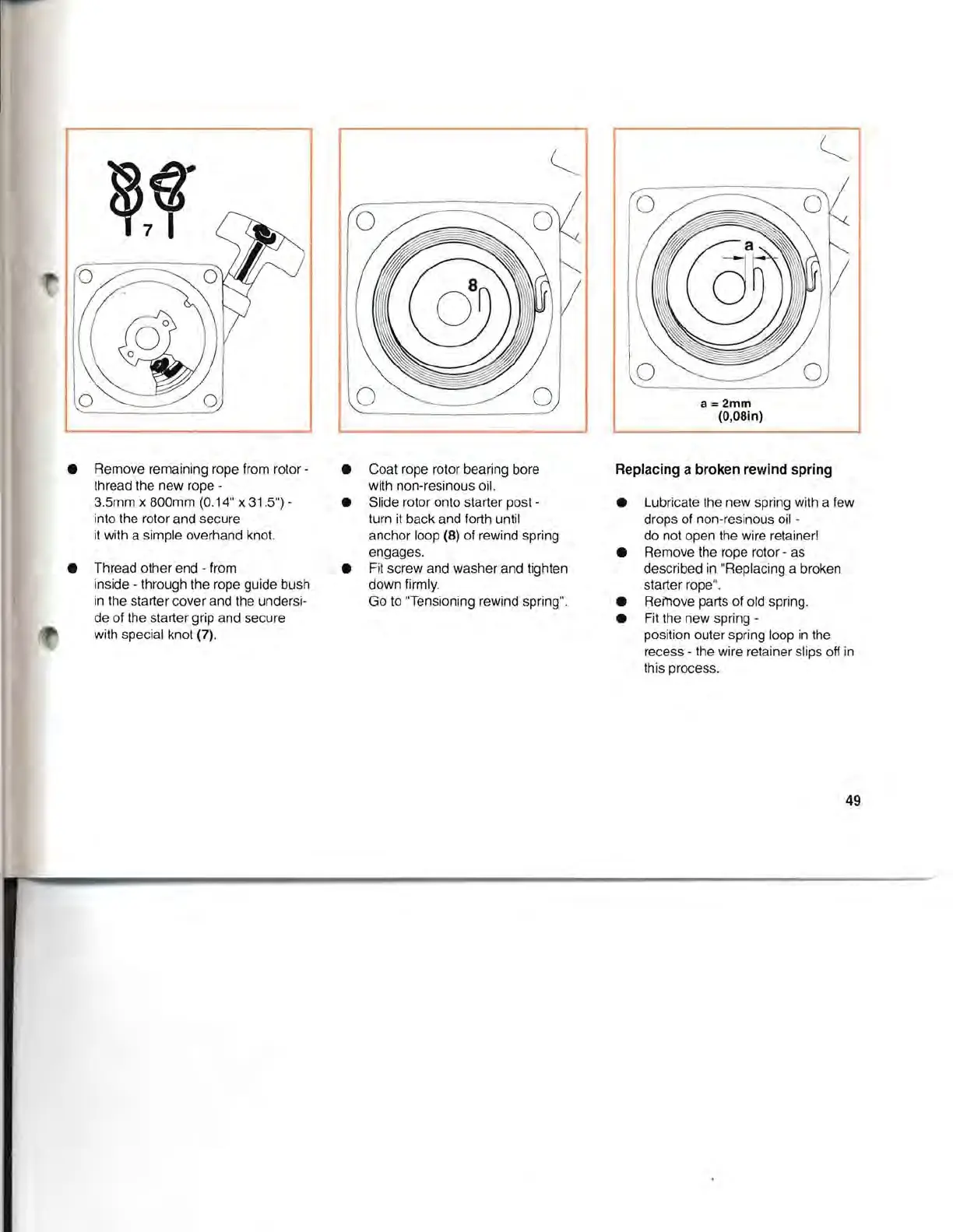

• Remove remaining rope from rotor -
thread the new rope -
3.5mm x 800mm (0.14" x 31.5") -
into the rotor and secure
it
with a simple overhand knot.
• Thread other end - from
inside - through the rope guide bush
in
the starter cover and the undersi-
de of the starter grip and secure
with special knot (7).
• Coat rope rotor bearing bore
with non-resinous oil.
• Slide rotor onto starter post -
turn
it
back and forth until
anchor loop
(8) of rewind spring
engages.
• Fit screw and washer and tighten
down firmly.
Go to "Tensioning rewind spring".
a=2mm
(O,08in)
Replacing a broken rewind spring
• Lubricate the new spring with a few
drops of non-resinous oil -
do not open the wire retainer!
• Remove the rope rotor - as
described
in
"Replacing a broken
starter rope".
•
Rei'tlove parts of old spring.
• Fit the new spring -
position outer spring loop
in
the
recess - the wire retainer slips off
in
this process.
49
