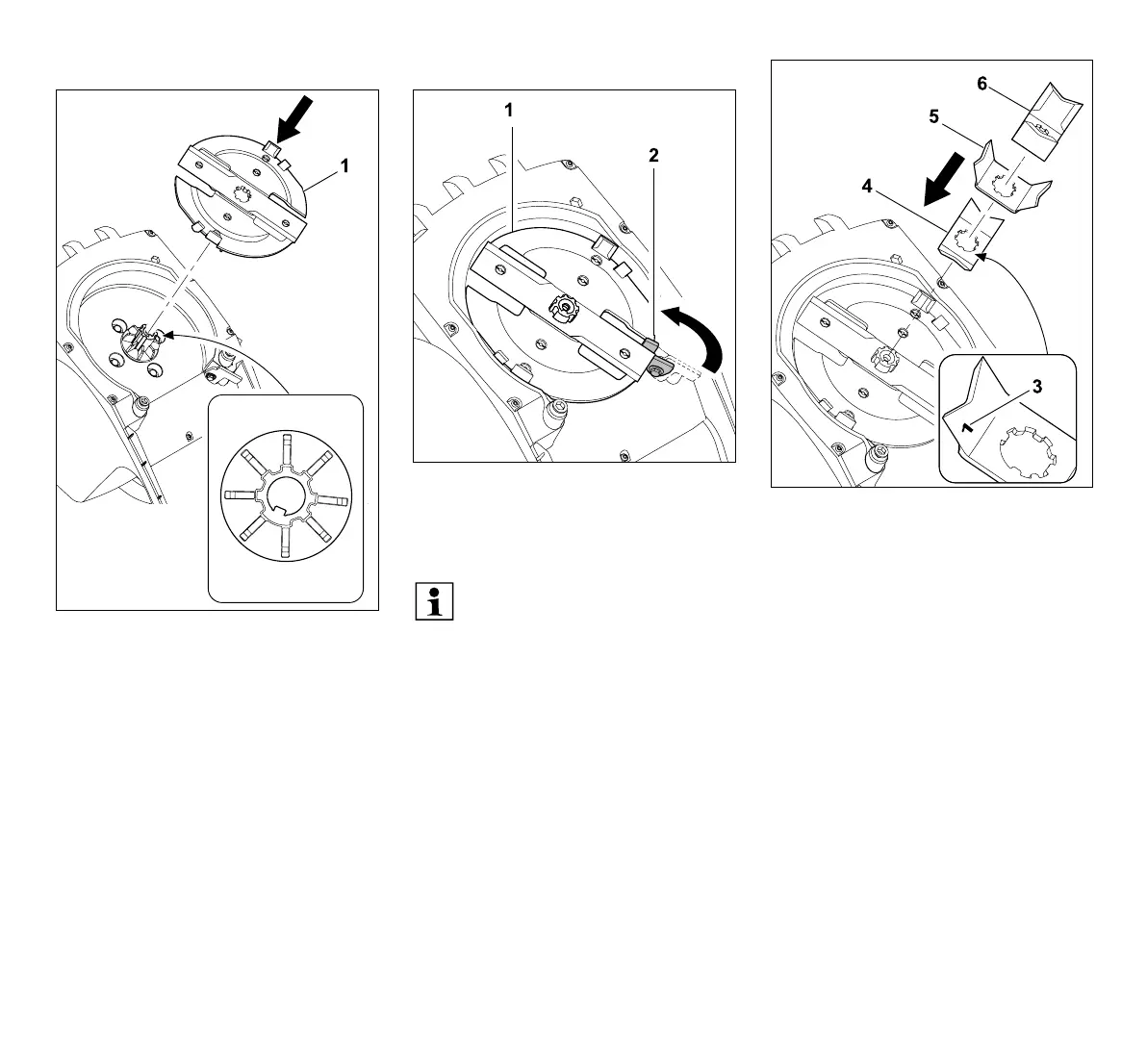

1 Fit the blade disc
● Fit blade disc (1) onto the blade
mounting. When doing so, pay attention
to the teeth on the blade mounting.
2 Lock the blade set
● Turn blade disc (1) to the position
shown and fold locking device (2)
upwards as far as it goes.
3 Fit the wing blade
● Attach wing blade (4), wing blade (5)
and wing blade (6).
The numbers (3) on the inside of
the wing blades refer to their
installation sequence.
