Stihl GHE 355 User Manual

EN
25
0478 201 8314 C - EN

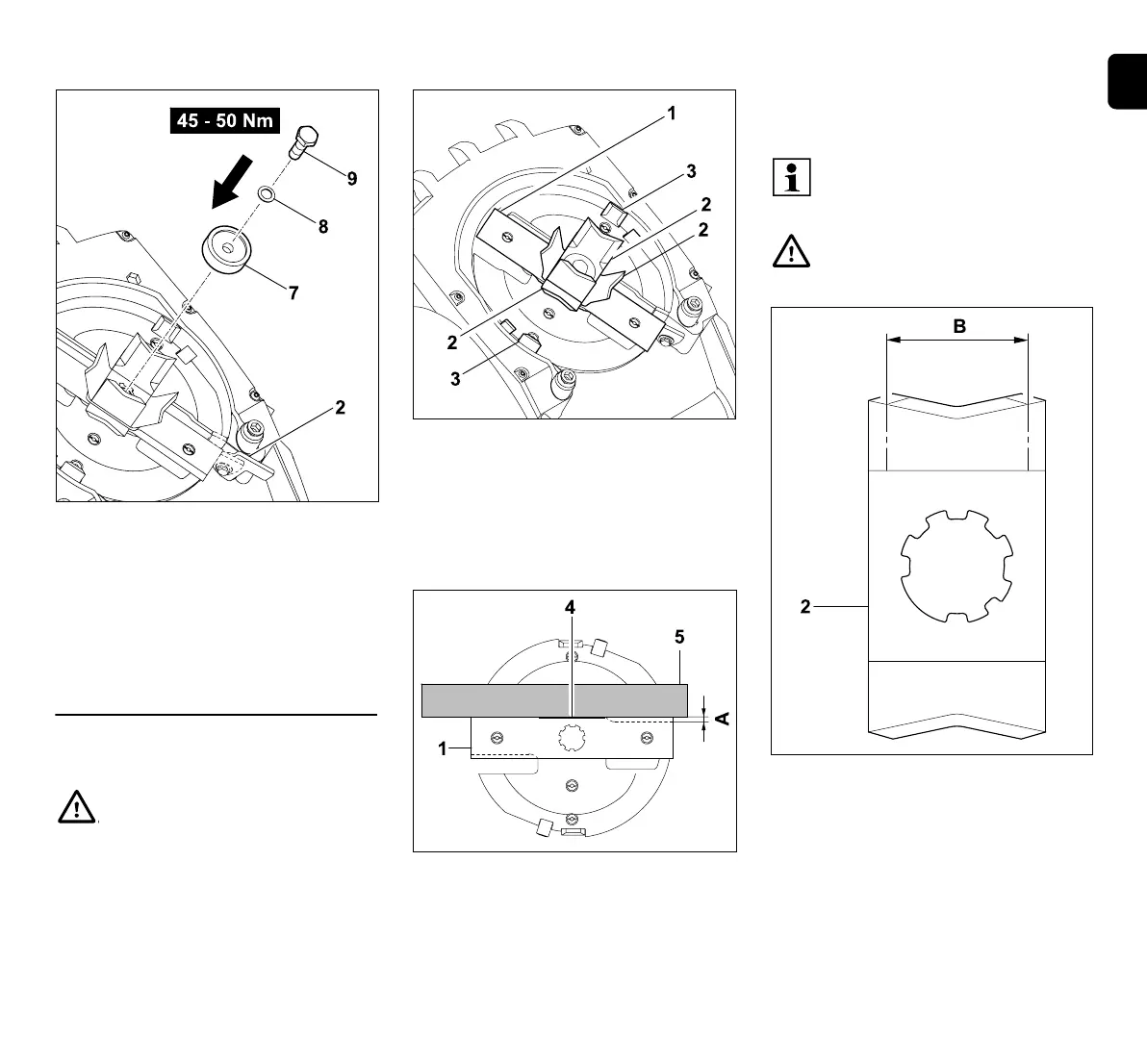

4 Fasten the blade set
● Attach clamping ring (7) and secure
along with retaining washer (8) and
bolt (9).
● Tighten bolt (9) using assembly tool (U)
(45 - 50 Nm).
● Fold back locking device (2) again.
● Install the feed chute. (Ö 11.3)
11.8 Wear limits of the blades
1 Blade overview
– 1 combination blade (1)
– 3 wing blades (2)
– 2 shredding blades (3)
● Remove the blade set. (Ö 11.6)
2 Combination blade
● Hold a ruler (5) against the reference
edge (4) of the combination blade.
The distance (A) between the cutting
edge and the ruler indicates the wear.
Maximum wear limit (A) for combination
blade (1):
A = < 5 mm
3 Wing blade
● The blade width should be measured at
two or three points along the cutting
edge.
Use the smallest value.
Minimum blade width (B)
Wing blade (2):
B = > 40 mm
The blades must be replaced
before the specified wear limits are
reached. STIHL recommends
STIHL specialist dealers.
The measurement procedure and
the value specified are the same for
all three wing blades.
Asymmetrical wear may occur at
the wing blades due to uneven use
of the cutting edges.

Stihl GHE 355 Specifications

General

Power	2500 W
Product color	Black, Orange, White
Uncertainty K	2.4 dB
Cutting system	Blade
AC input voltage	230 V
Transport wheels	Yes
Rated speed (max)	2750 RPM
Sound power level	100 dB
Material throughput	- kg/h
Sound pressure level	94 dB
Collection box capacity	- L
Maximum branch thickness	35 mm

Weight and Dimensions

Weight	30000 g
