Stihl HT 105 Instruction Manual

HT 105, HT 134, HT 135
English
12

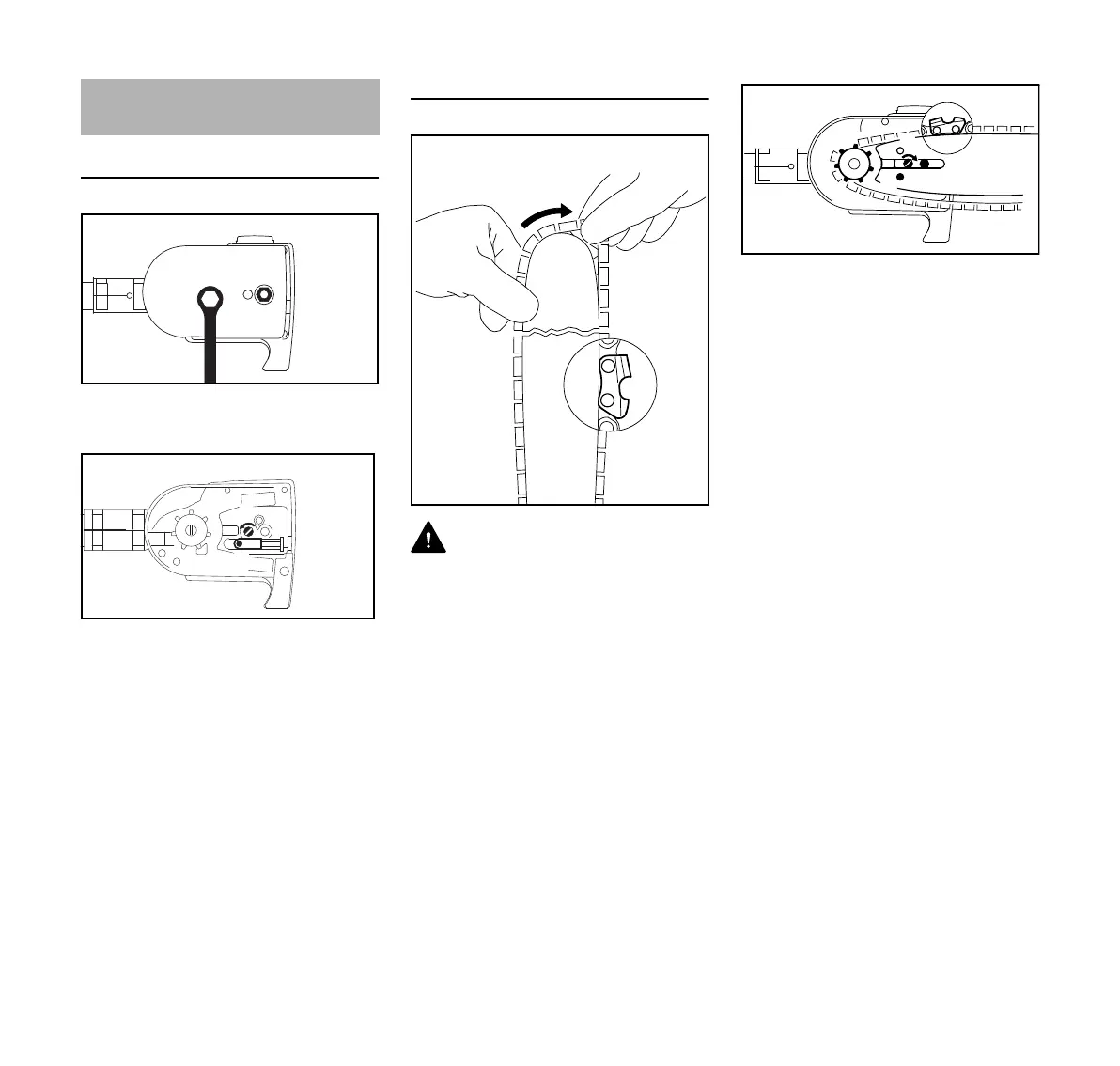

Removing the chain sprocket cover
N Unscrew the nut and remove the
cover
N Turn the screw (1)
counterclockwise until the tensioner
slide (2) butts against the left end of
the housing slot, then back it off 5
full turns
Fitting the saw chain
WARNING
Wear work gloves to protect your hands
from the sharp cutters.
N Fit the saw chain – start at the bar
nose
N Fit the guide bar over the screw (3)
and engage peg of tensioner slide in
the hole (4) – place the saw chain
over the chain sprocket (5) at the
same time
N Turn the tensioning screw (1)
clockwise until there is very little
chain sag on the underside of the
bar – and the drive link tangs are
engaged in the bar groove
N Refit the cover and screw on the nut
finger-tight
N Go to chapter on "Tensioning the
Saw Chain"
Mounting the Bar and Chain
0000003452_002
2
1
0000097194_001
390BA003 KN
1
5
390BA044 KN
4
3

Stihl HT 105 Specifications

General

Power Output	1.05 kW
Guide Bar Length	30 cm
Power Source	Gasoline
Chain Gauge	1.3 mm
Engine Displacement	31.4 cc
Shaft Length	270 cm
