Stihl HT 105 Instruction Manual

HT 105, HT 134, HT 135
English
20

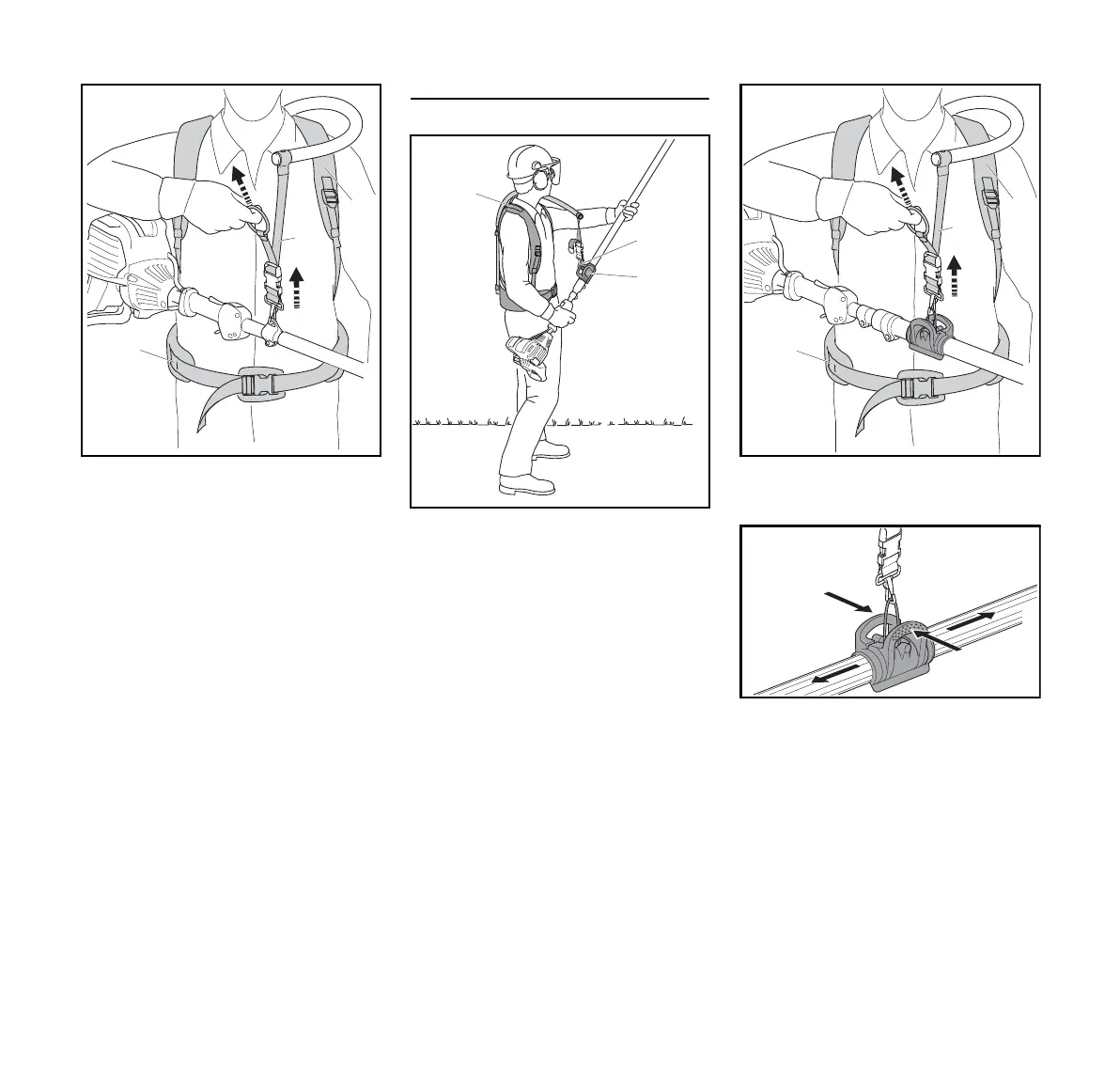

N Adjust the hip belt (3), both shoulder
straps (4) and the carrying strap (5)
Only versions with telescoping shaft
N Put the backpack carrying system
(1) on your back and adjust it as
described in the instruction leaflet
provided
N Attach the carabiner (3) to the clip-
on carrying ring (2) on the shaft
N Attach the pole pruner to the
carrying strap when cutting
N Adjust the hip belt (3), both shoulder
straps (4) and the carrying strap (5)
N Squeeze the clip (carrying ring)
together to move it up or down the
shaft
4
5
3
0000-GXX-1572-A0
2
3
1
0000-GXX-1573-A1
4
5
3
0000-GXX-1574-A0
0000-GXX-1575-A0

Stihl HT 105 Specifications

General

Power Output	1.05 kW
Guide Bar Length	30 cm
Power Source	Gasoline
Chain Gauge	1.3 mm
Engine Displacement	31.4 cc
Shaft Length	270 cm
