Stihl HT 131 Instruction Manual

HT 100, HT 101, HT 130, HT 131
English
42

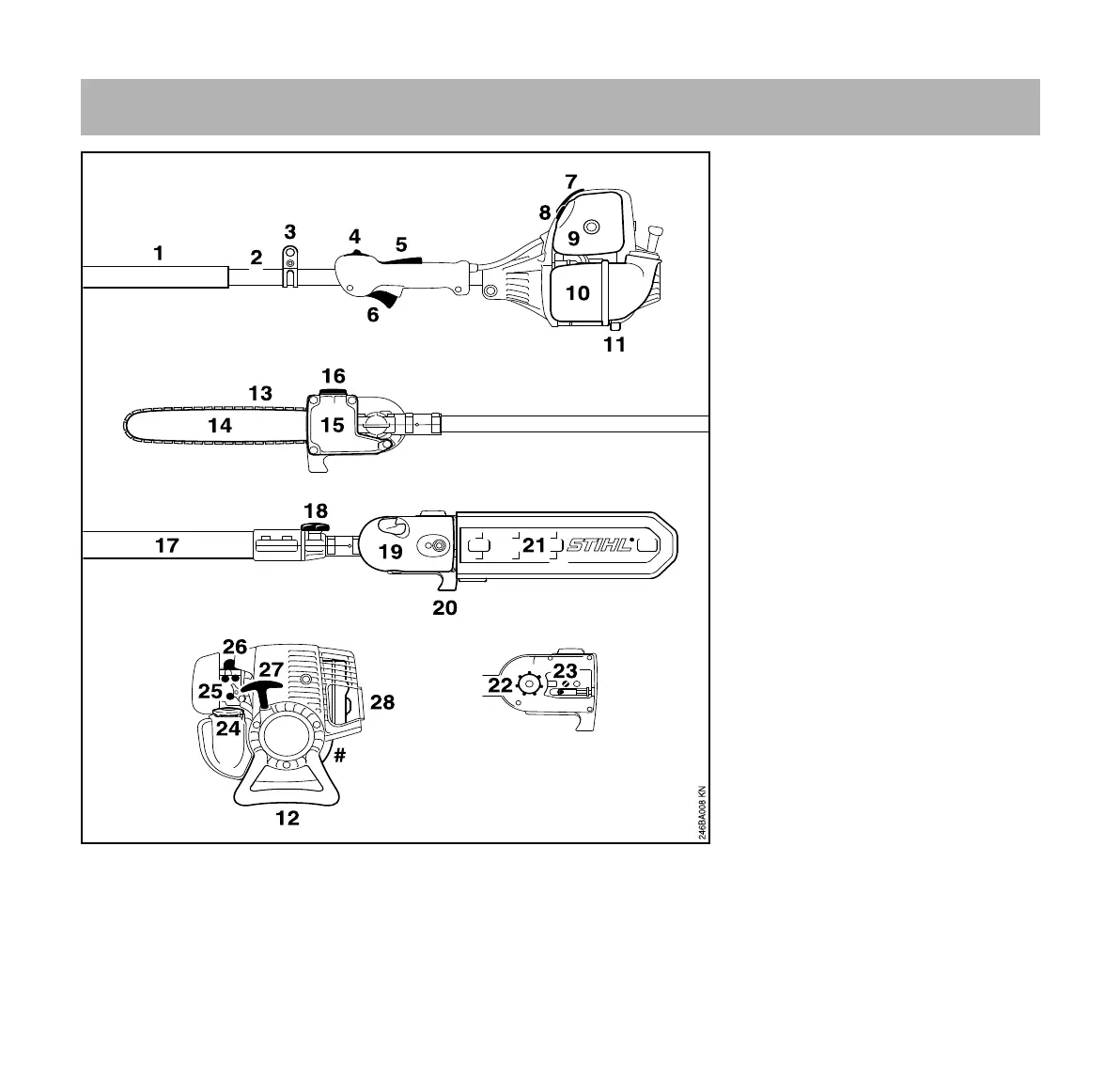

1 Handle Hose (HT 100, HT 130)
2 Fixed Drive Tube (HT 100, HT 130)
3 Carrying Ring
4 Slide Control
5 Throttle Trigger Lockout
6 Throttle Trigger
7 Spark Plug Boot
8 Choke Knob
9 Air Filter Cover
10 Fuel Tank
11 Machine Support
12 Machine Support (HT 130, HT 131)
13 Oilomatic Saw Chain
14 Guide Bar
15 Oil Tank
16 Oil Filler Cap
17 Telescopic Drive Tube (Shaft)
(HT 101, HT 131)
18 Clamp Screw (HT 101, HT 131)
19 Chain Sprocket Cover
20 Hook
21 Chain Guard (Scabbard)
22 Chain Sprocket
23 Chain Tensioner
24 Fuel Filler Cap
25 Carburetor Adjusting Screws
26 Manual Fuel Pump
27 Starter Grip
28 Muffler (with Spark Arresting
Screen)
# Serial Number
Main Parts

Stihl HT 131 Specifications

General

Engine Power	1.4 kW (1.9 bhp)
Displacement	36.3 cc
Sound Power Level	106 dB(A)
Overall Length	270 - 390 cm
Guide Bar Length	30 cm
Power Source	Gas
Chain Pitch	3/8"
Chain Gauge	1.3 mm
