KM 111 R, KM 131 R
English
11
The following STIHL KombiTools may
be mounted on the KombiMotor:
A barrier bar is supplied with the
machine. Attach the barrier bar to the
loop handle.
N Insert square nuts (1) in the barrier
bar (2) – the holes must line up
N Insert the clamp (3) in the loop
handle (4) and position them
together on the shaft (5)
N Position clamp (6)
N Position barrier bar (2) – note
position!
N Line up the holes
N Insert bolts (7) in the holes – and
screw them into the barrier bar as
far as possible
Approved KombiTools
KombiTool
1)
the barrier bar supplied with the
machine must be used – see also
"Mounting the Loop Handle"
Application
FS-KM Brushcutter with
mowing head
FS-KM
1)
Brushcutter with
grass cutting blade
RG-KM
1)
Weeder
HL-KM 145° Long reach hedge
trimmer, adjustable
HL-KM Long reach hedge
trimmer
FH-KM 145° Power scythe
BG-KM Blower
HT-KM Pole pruner
BF-KM Cultivator
FBD-KM Redefining bed
edges
FCB-KM Lawn edging
FCS-KM Lawn edging
KB-KM Bristle brush
KW-KM PowerSweep

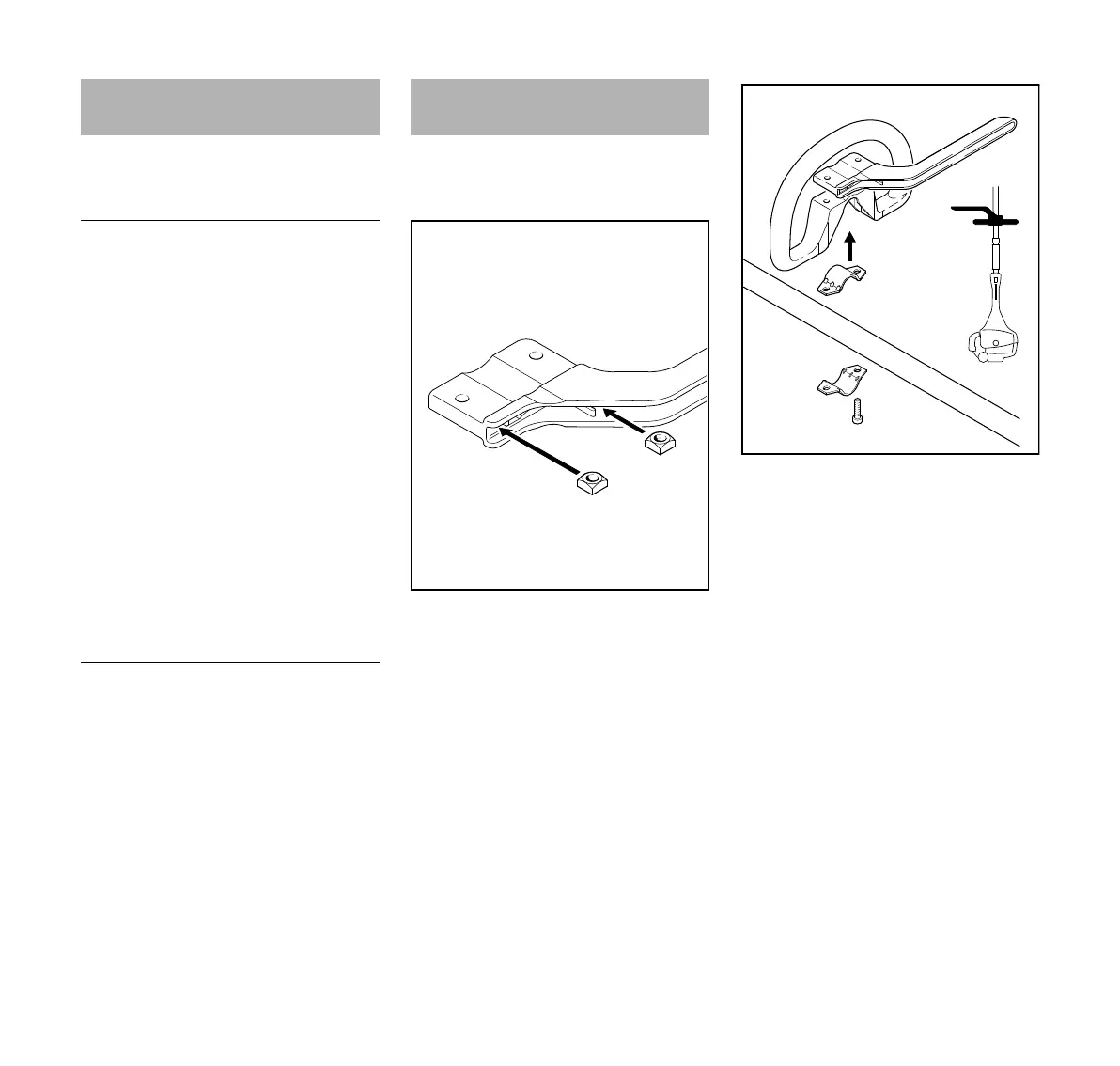

Mounting the Loop Handle
2
002BA098 KN
1
1
5
4
002BA099 KN
2
3
6
7
