Stihl MS 151 TC User Manual

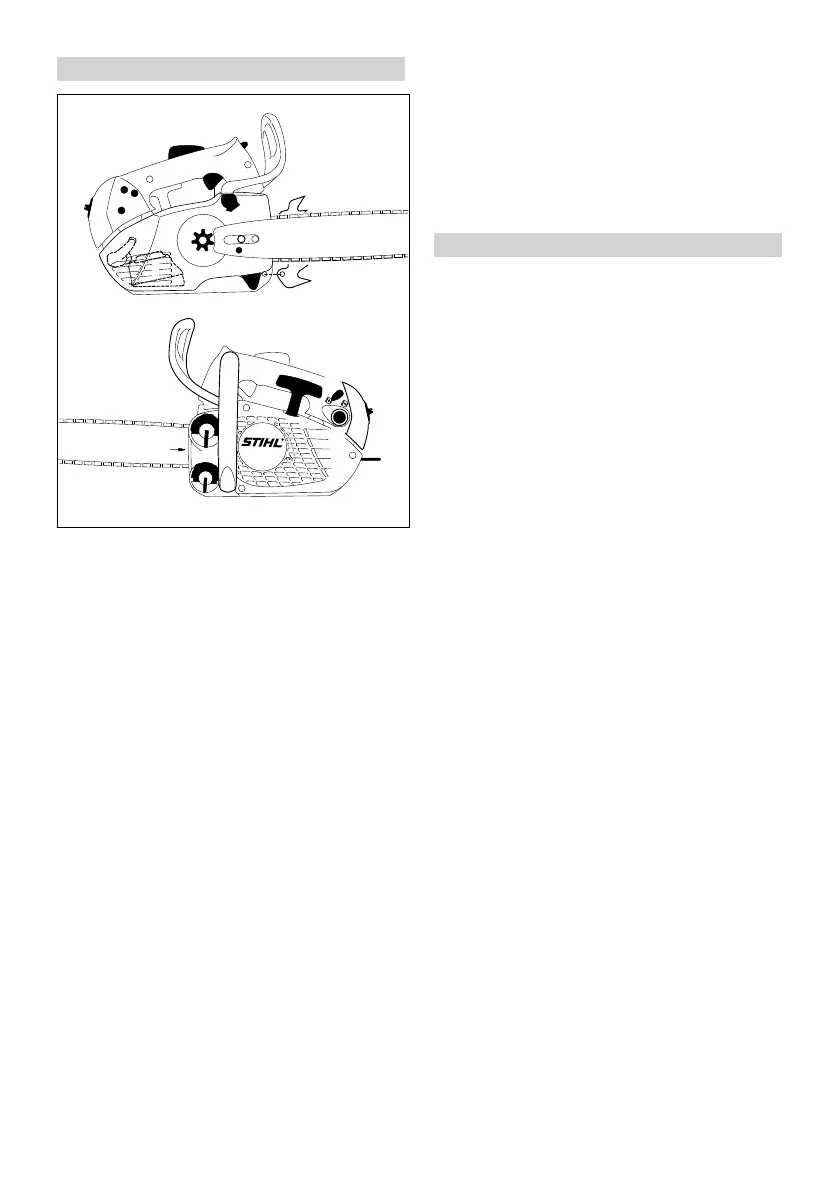

25 Main Parts
13
4
23
9
11
3006BA013 KN
14
15
10
18
16
25
#
H
LL
LA
1
2
3
5
6
7
8
12
17
19
20
21
22
24
1 Control handle
2 Throttle trigger lockout
3 Master Control lever
4 Throttle trigger
5 Carburetor adjusting screws
6 Spark plug boot
7 Muffler
8 Chain sprocket cover
9 Chain sprocket
10 Chain brake
11 Chain tensioner
12 Chain catcher
13
Spiked bumper
1)
14 Guide bar
15 Oilomatic chain
16 Oil filler cap
17 Fuel filler cap
18 Hand guard
19 Handlebar
20 Starter grip
21 Choke lever
22 Manual fuel pump
23 Carburetor box cover
24 Carburetor box cover twist lock
25 Ring for rope
# Serial number
26 Specifications
26.1 Engine
Single-cylinder two-stroke engine
Displacement:
23.6
3
Cylinder bore: 34 mm
Piston stroke: 26 mm
Engine power to ISO 7293: 1.1 kW (1.5 HP) at
10000 rpm
Idling speed:
1
3000 rpm
26.2 Ignition system
Electronic magneto ignition
Spark plug (suppressed): NGK CMR 6 H
Electrode gap: 0.5 mm
26.3 Fuel system
All-position diaphragm carburetor with integral
fuel pump
Fuel tank capacity:
200 cm
3
(0.2 l)
26.4 Chain lubrication
Fully automatic, speed-controlled oil pump
Oil tank capacity:
150 cm
3
(0.15 l)
26.5 Weight
dry, without cutting attachment
MS 151 TC: 2.6 kg
26.6 Cutting attachment
The actual cutting length may be less than the
specified cutting length.
26.6.1 Rollomatic E Mini guide bars
Cutting lengths: 25, 30 cm
Pitch: 1/4” P (6.35 mm)
Groove width: 1.1 mm
Sprocket nose: 8-tooth
26.6.2 Carving E guide bars
Cutting lengths: 30 cm
Pitch: 1/4” P (6.35 mm)
Groove width: 1.1 mm
1)
available as special accessory
1)
according to ISO 11681 +/- 50 1/min
English 25 Main Parts
30 0458-508-8321-B

Stihl MS 151 TC Specifications

General

Sound Pressure Level	96 dB(A)
Power Output	1.1 kW
Weight	2.6 kg
Bar Length	30 cm (12")
Vibration Level (Left/Right)	3.5/3.5 m/s²
Engine Displacement	23.6 cm³
