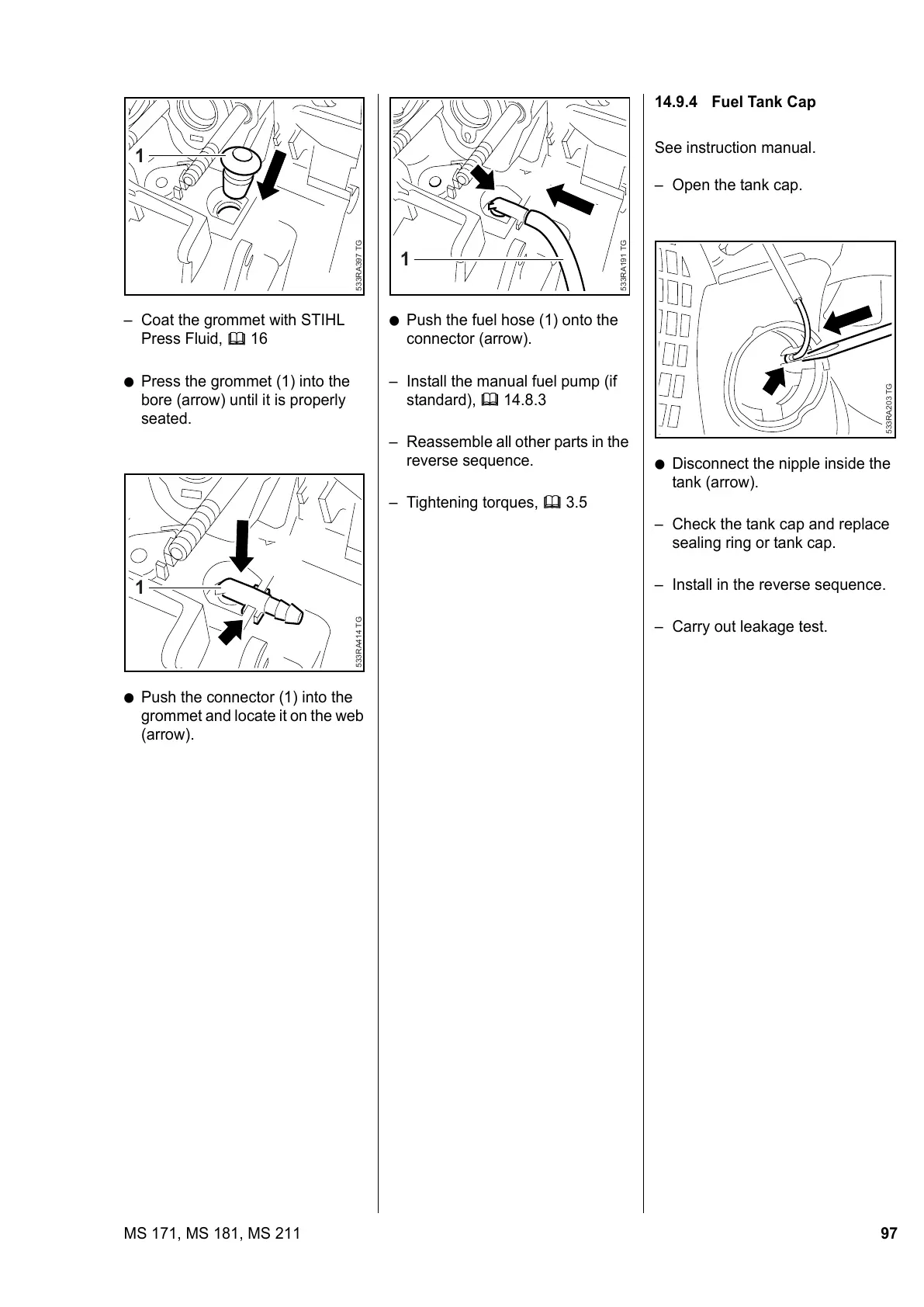

97MS 171, MS 181, MS 211

– Coat the grommet with STIHL

Press Fluid, b 16

: Press the grommet (1) into the

bore (arrow) until it is properly

seated.

: Push the connector (1) into the

grommet and locate it on the web

(arrow).

533RA397 TG

533RA414 TG

: Push the fuel hose (1) onto the

connector (arrow).

– Install the manual fuel pump (if

standard), b 14.8.3

– Reassemble all other parts in the

reverse sequence.

– Tightening torques, b 3.5

533RA191 TG

14.9.4 Fuel Tank Cap

See instruction manual.

– Open the tank cap.

: Disconnect the nipple inside the

tank (arrow).

– Check the tank cap and replace

sealing ring or tank cap.

– Install in the reverse sequence.

– Carry out leakage test.

533RA203 TG
