Stihl MS 192 T Manual

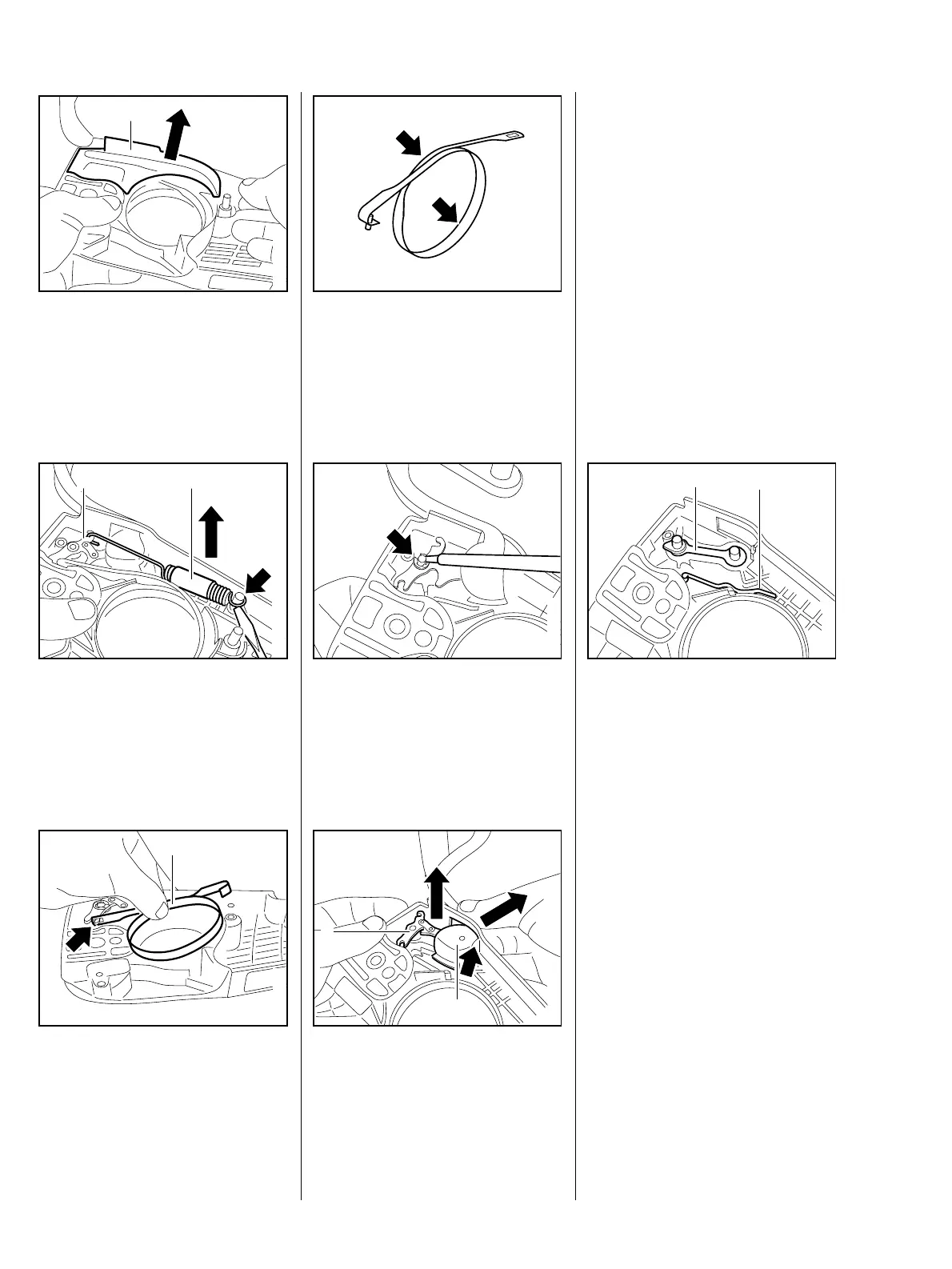

22 MS 192 T
: Remove the cover (1).
1
217RA027 TG
: Carefully ease the brake spring
(1) off the anchor pin (arrow).
: Unhook the brake spring (1) from
the brake lever (2).
1
2
217RA028 TG
: Disconnect the brake band (1)
from the lever (arrow) and
remove it.
1
217RA029 TG
Install a new brake band if there are
noticeable signs of wear (large
areas on inside diameter and/or
parts of outside diameter) and its
remaining thickness is less than
0.6 mm.
217RA321 TG
: Remove the E-clip (arrow).
217RA030 TG
: Remove the hand guard (2) with
lever (1) from the pivot pins.
– Pull the lever out of the hand
guard.
217RA031 TG
2
1
– Draw the hand guard (1) out
through the opening in the cover
(arrow).
: Remove the inlay (1) and leaf
spring (2).
Clean all disassembled parts with a
little standard solvent-based
degreasant not containing any
chlorinated or halogenated
hydrocarbons.
217RA032 TG
1 2
– Examine the inlay and leaf spring
and replace if necessary.

Stihl MS 192 T Specifications

General

Engine Displacement	30.1 cc
Recommended bar length	30 cm
Engine Power	1.3 kW
Guide Bar Length	30-35 cm
Fuel Capacity	0.27 liters
Chain Oil Capacity	0.22 liters
Chain pitch	3/8"
