Stihl MS 192 T Manual

23MS 192 T

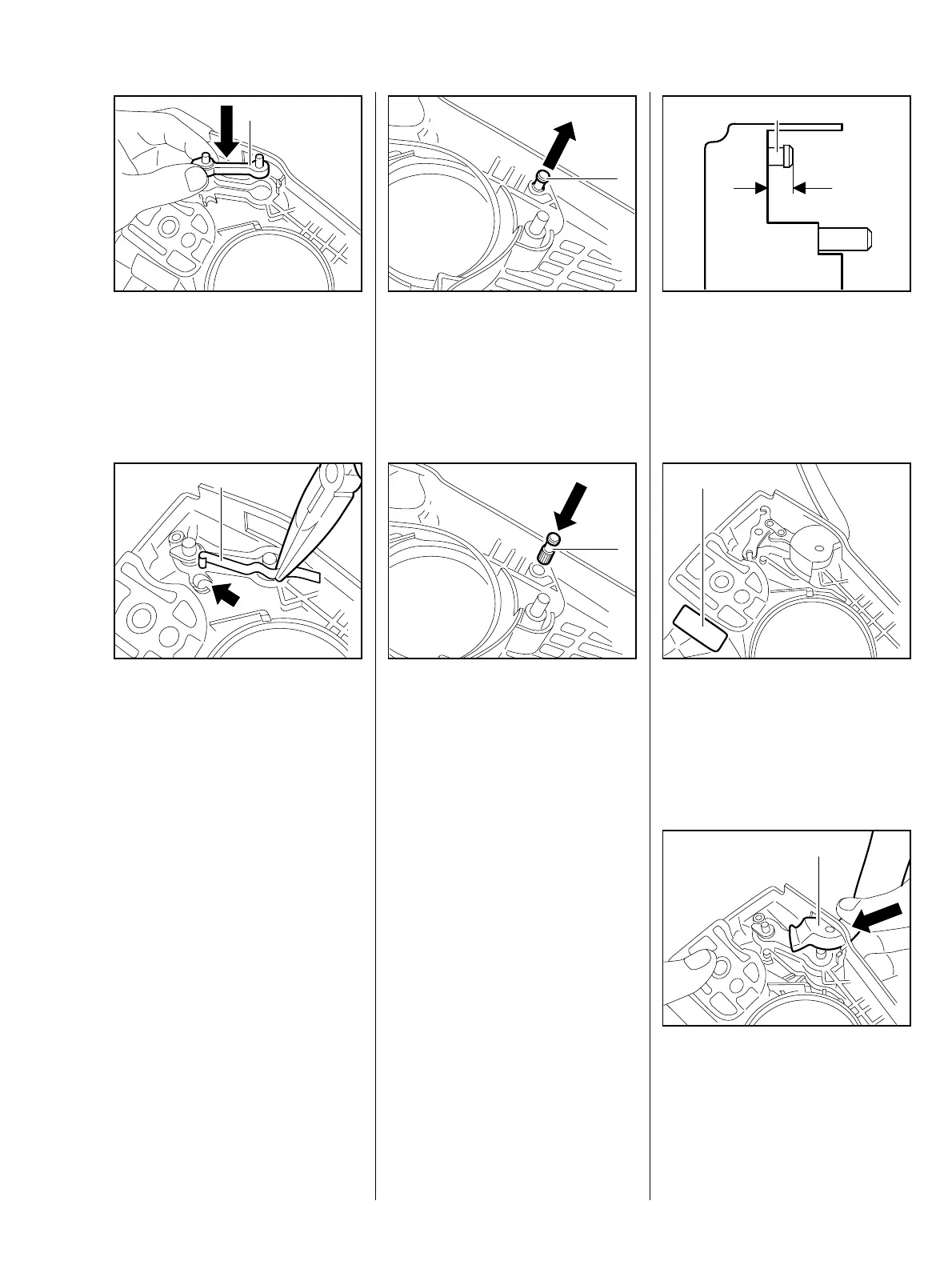

Wet the inlay (1) with Loctite before
fitting it, b 16
: Press the inlay (1) as far as
possible into the opening in the
cover.
217RA033 TG
1
: Place the leaf spring (1) in the
opening (arrow).
– Lightly grease both the leaf
spring and the pin of the inlay.
The anchor pin must be replaced if
the groove in the brake spring
1
217RA034 TG
anchor pin is worn. Proceed as
follows:
: Pull the pin (1) out of the cover
with a suitable tool.
1
217RA322 TG
– Wet the knurled area of the new
pin (1) with Loctite before fitting it,
b 16
: Position the new pin (1) in the
bore so that the knurling on the
pin meshes with the existing
knurling in the bore. Turn the pin
1
217RA323 TG
back and forth as necessary.
: Carefully drive the pin (1) home,
tapping lightly, until value "a"
approx. 4.3...4.7 mm is reached.
The pin must be driven in squarely.
217RA324 TG
a
1
: Prise off the bumper strip (1) with
a suitable tool.
– Check the bumper strip and
replace it if necessary.
– Reassemble parts in reverse
order.
217RA065 TG
1
: Slide the lever (1) through the
opening in the cover.
217RA035 TG
1

Stihl MS 192 T Specifications

General

Engine Displacement	30.1 cc
Recommended bar length	30 cm
Engine Power	1.3 kW
Guide Bar Length	30-35 cm
Fuel Capacity	0.27 liters
Chain Oil Capacity	0.22 liters
Chain pitch	3/8"
