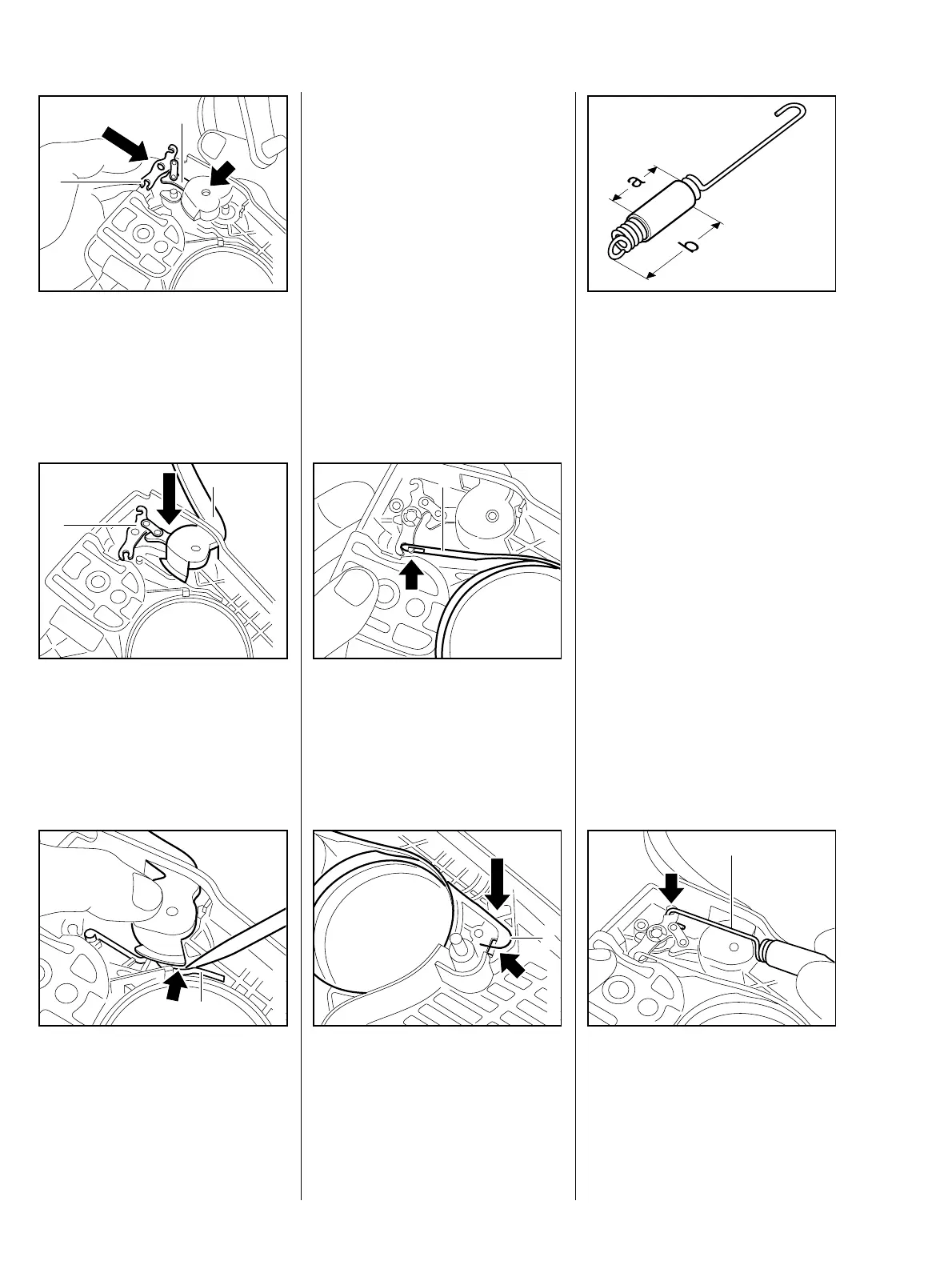

24 MS 192 T
The forked opening (2) must face
towards the brake band.
: Insert the lever (1) in the side of
the bearing boss (arrow).
217RA036 TG
2
1
Ensure that the holes in the lever
inside the hand guard are lined up.
: Slip the bearing boss of the hand
guard (1) and lever (2) onto the
pivot pins.
2
1
217RA037 TG
When fitting the parts, ensure that
the cam (arrow) on the hand guard
is guided past the leaf spring.
1
217RA038 TG
Coat all sliding and bearing points
with STIHL multi-purpose grease,
b 16
Do not grease the brake band.
: Attach the brake band (1) to the
brake lever (arrow).
217RA039 TG
1
: Insert the brake band (1) in the
opening (arrow).
1
217RA040 TG
: The turns of the brake spring
must lie tightly against one
another when relaxed. If this is
not the case, replace the brake
spring.
Check correct position of the
protective tube.
217RA041 TG
a = 31 mm
b = 44 mm
: Attach the brake spring (1)
to the brake lever (arrow).
217RA042 TG
1

Stihl MS 192 T Specifications

General

Engine Displacement	30.1 cc
Recommended bar length	30 cm
Engine Power	1.3 kW
Guide Bar Length	30-35 cm
Fuel Capacity	0.27 liters
Chain Oil Capacity	0.22 liters
Chain pitch	3/8"
