33MS 192 T

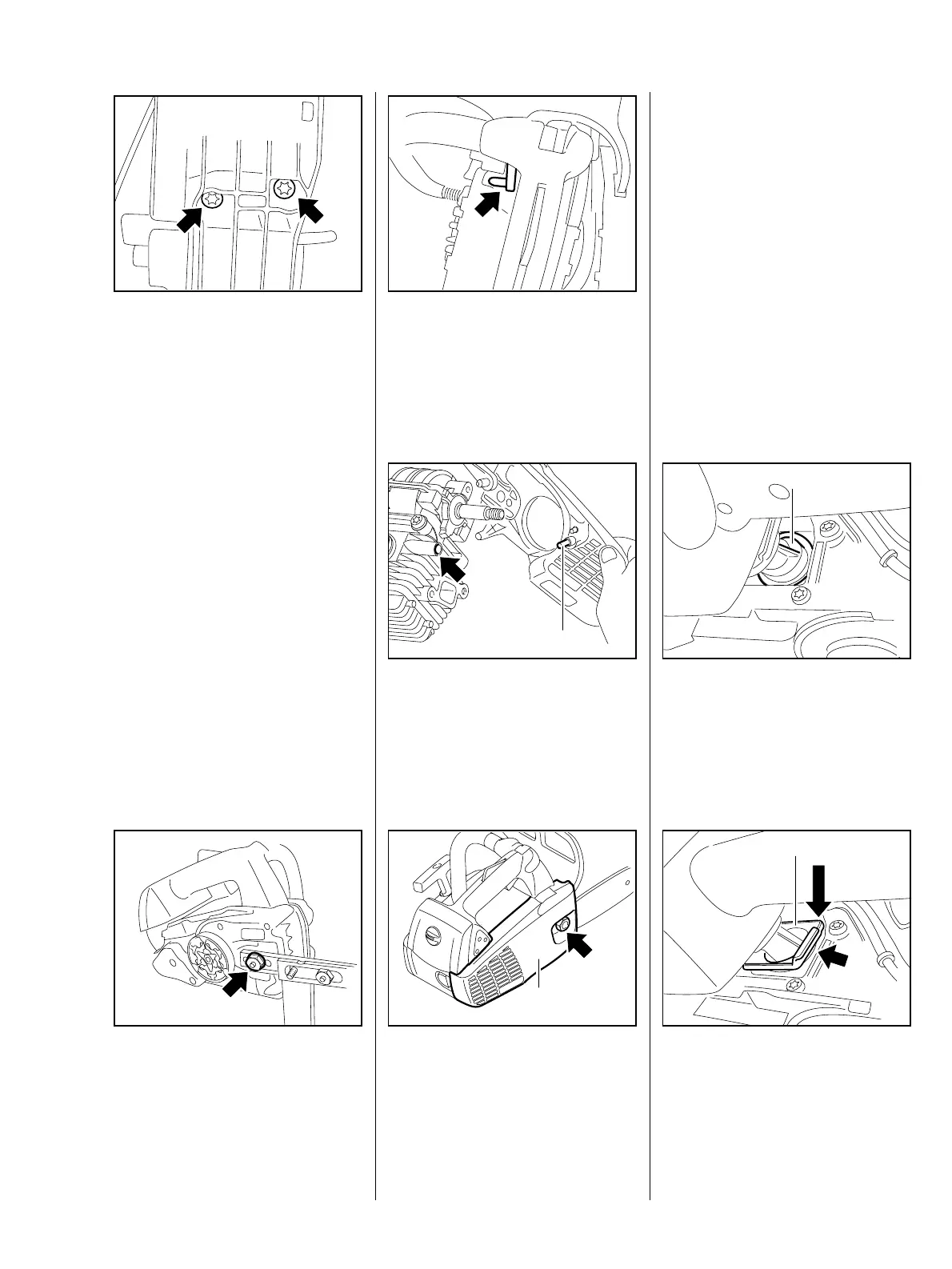

: Fit the screws (arrows) and
tighten them down only
moderately.
Before tightening the screws down
firmly, the engine must be centred in
relation to the sprocket cover and
guide bar.
217RA106 TG
: Unscrew the nut (arrow) and
remove the machine from the
assembly stand.
– Fit the guide bar.
217RA357 TG
: Guide the peg (arrow) into the
hole and fit the sprocket cover.
217RA021 TG
: The pin (1) must be lined up with
the hole (arrow) when fitting the
sprocket cover.
1
217RA352 TG
: Tighten down the nut (arrow) and
secure the sprocket cover (1).
– Now tighten down the screws
securing the engine.
217RA351 TG
1
– Tightening torques, b 3.5
– Remove the sprocket cover
again.
– Mount the machine on the
assembly stand again and
continue with the installation
procedure.
: Push the manifold (1) onto the
intake stub.
– Coat the manifold with STIHL
Press Fluid, b 16
217RA271 TG
1
The tab (arrow) must point towards
the saw chain.
: Press in the supporting plate (1).
217RA272 TG
1
