34 MS 192 T

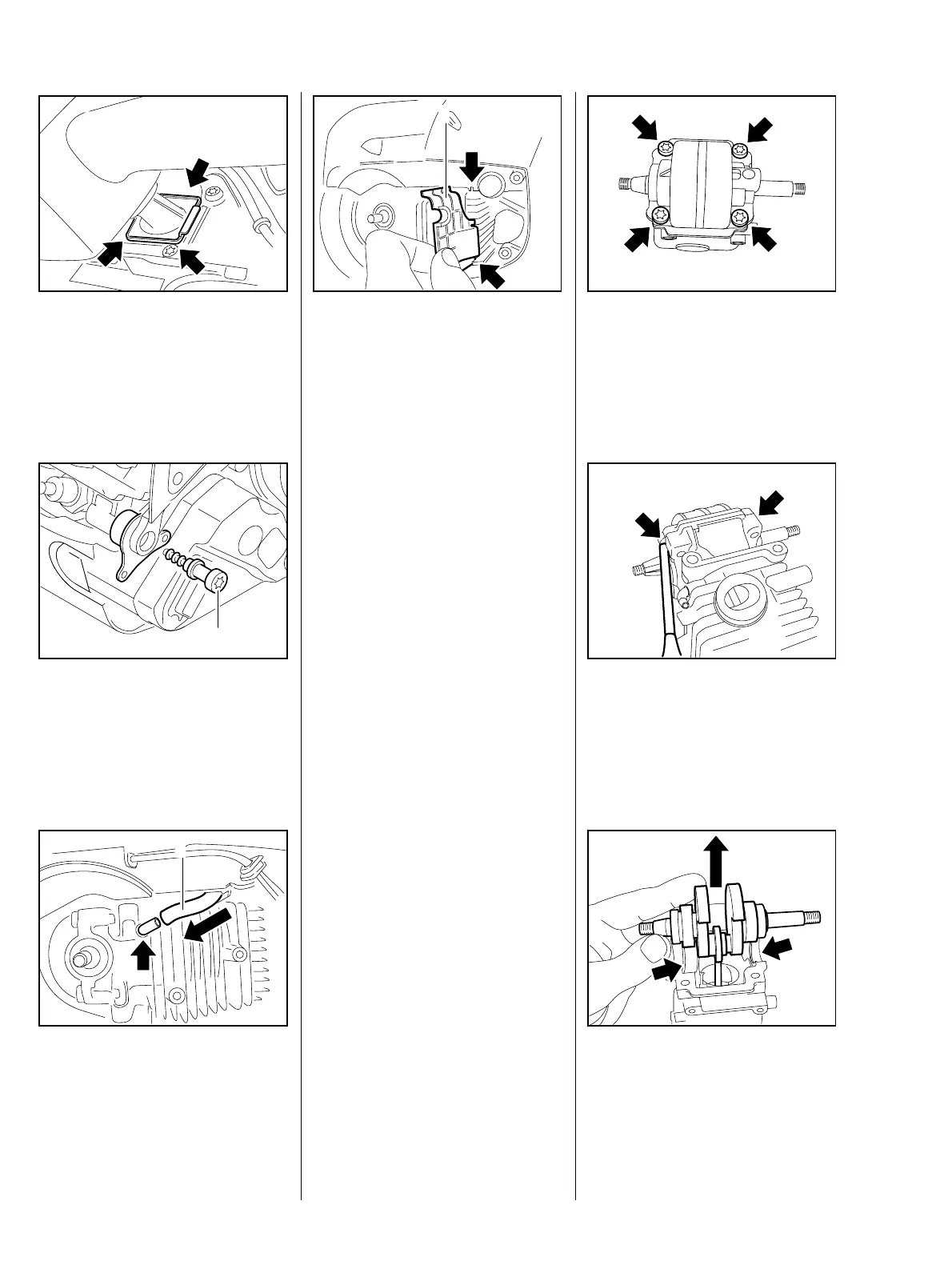

Ensure that the supporting plate
rests securely on the engine
housing at all points (arrows).
217RA273 TG
: Insert and tighten down the
screw (1).
– Tightening torques, b 3.5
217RA156 TG
1
: Connect the impulse hose (1) to
the stub (arrow).
217RA157 TG
1
: Push the insulating plate (1) into
the guides (arrows) until it
engages at the bottom.
– Reassemble remaining parts in
reverse order.
217RA158 TG
1
: Take out the screws (arrows).
217RA111 TG
: Apply a suitable tool at the
projections (arrows) of the engine
pan, then tap lightly to release
and lift off the engine pan.
217RA112 TG
: Remove the crankshaft from the
bearing seats (arrows).
217RA113 TG
8.5 Crankshaft
8.5.1 Removal

Stihl MS 192 T Specifications

General

Engine Displacement	30.1 cc
Recommended bar length	30 cm
Engine Power	1.3 kW
Guide Bar Length	30-35 cm
Fuel Capacity	0.27 liters
Chain Oil Capacity	0.22 liters
Chain pitch	3/8"
