MS 201, MS 201 C
English
15

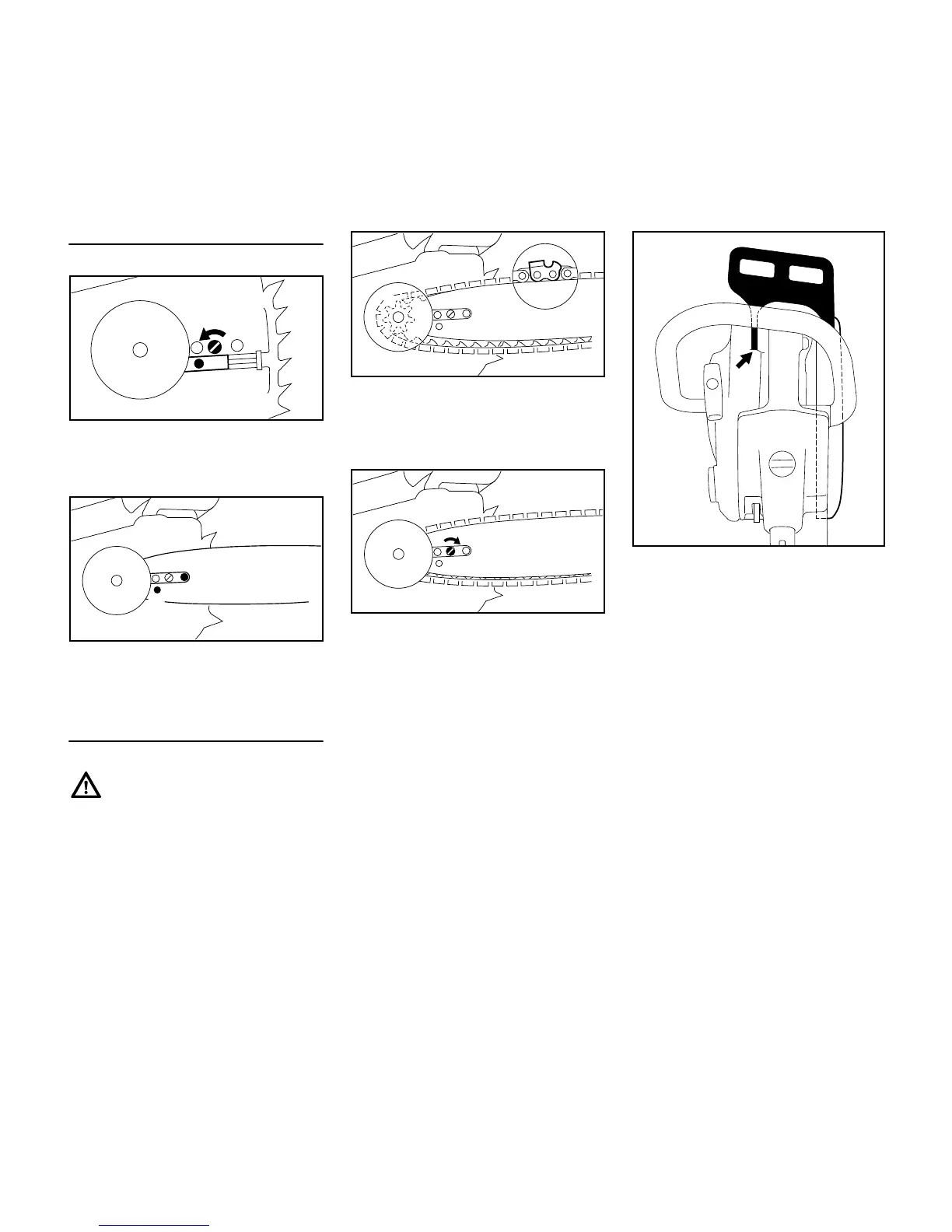

Fitting the guide bar
N Turn screw (1) to the left until the
tensioner slide (2) butts against the
left end of the housing slot
N Fit the guide bar over the screw (3)
and engage the peg of the tensioner
slide in the locating hole (4)
Fitting the saw chain
Put on protective gloves – risk of injury
by the sharp cutters!
N Fit saw chain around the sprocket
wheel (1) and over the guide bar –
the cutting edges of the teeth must
point to the right
N Turn screw (2) to the right until there
is very little chain sag on the
underside of the bar – and the drive
link tangs engage in the bar groove
N Refit the chain sprocket cover –
the pivot pin on the hand guard must
engage in the sleeve – and then
screw on the nut by hand until it is
fingertight
N Go to chapter "Tensioning the Saw
Chain"
