Stihl MS 210 C User Manual

MS 210, MS 210 C, MS 230, MS 230 C, MS 250, MS 250 C
English
25

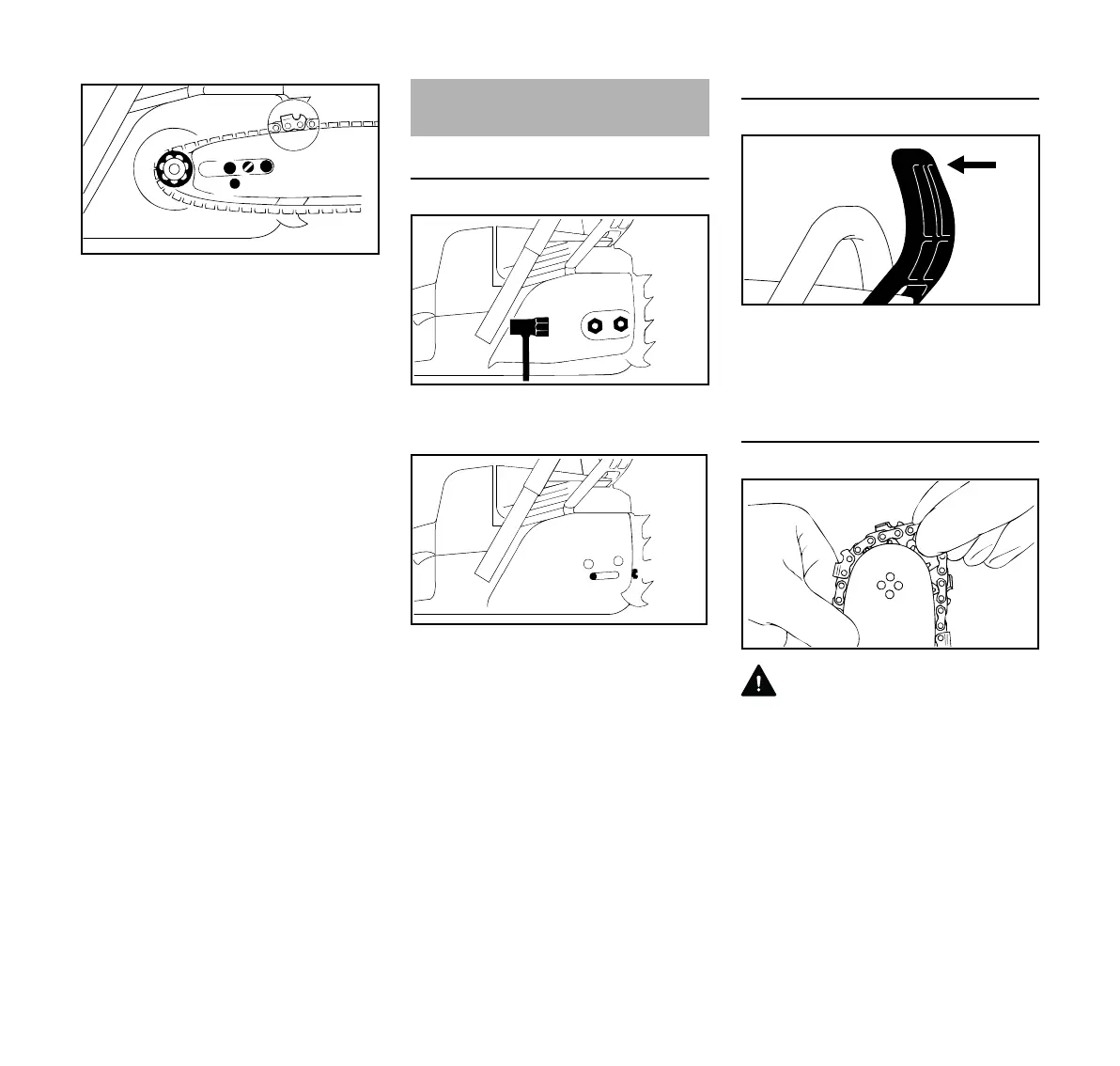

N Fit the guide bar over the studs (1) –
the cutting edges on the top of the
bar must point to the right.
N Engage the peg of the tensioner
slide in the locating hole (2) –- place
the chain over sprocket (3) at the
same time.
N Turn the tensioning
screw (4)clockwise until there is
very little chain sag on the
underside of the bar – and the drive
link tangs are engaged in the bar
groove.
N Refit the sprocket cover and screw
on the nuts only fingertight.
N Go to chapter on "Tensioning the
Saw Chain"
Removing the chain sprocket cover
N Unscrew the nut and remove the
chain sprocket cover.
N Turn the screw (1)
counterclockwise until the
tensioning nut (2) butts against the
left end of the housing slot.
Disengage the chain brake.
N Pull the hand guard towards the
front handle until there is an audible
click – the chain brake is
disengaged.
Fitting the chain
WARNING
Wear work gloves to protect your hands
from the sharp cutters.
N Fit the chain – start at the bar nose.
3
1
1
2
4
001BA187 KN
Mounting the Bar and Chain
(front chain tensioner)
143BA034 KN
1
2
207BA009 KN
001BA186 KN
143BA003 KN

Stihl MS 210 C Specifications

General

Displacement	35.2 cm³
Weight	4.6 kg
Weight (without cutting equipment)	4.6 kg
Chain pitch	3/8" P
Guide Bar Length	35-40 cm
Bar length (recommended)	35-40 cm
