Stihl MS 211 C User Manual

MS 171, MS 181, MS 181 C, MS 211, MS 211 C
English
28
N Remove screw (2)
N Position tensioning gear (1) and
guide bar (3) relative to one another
N Insert and tighten screw (2)

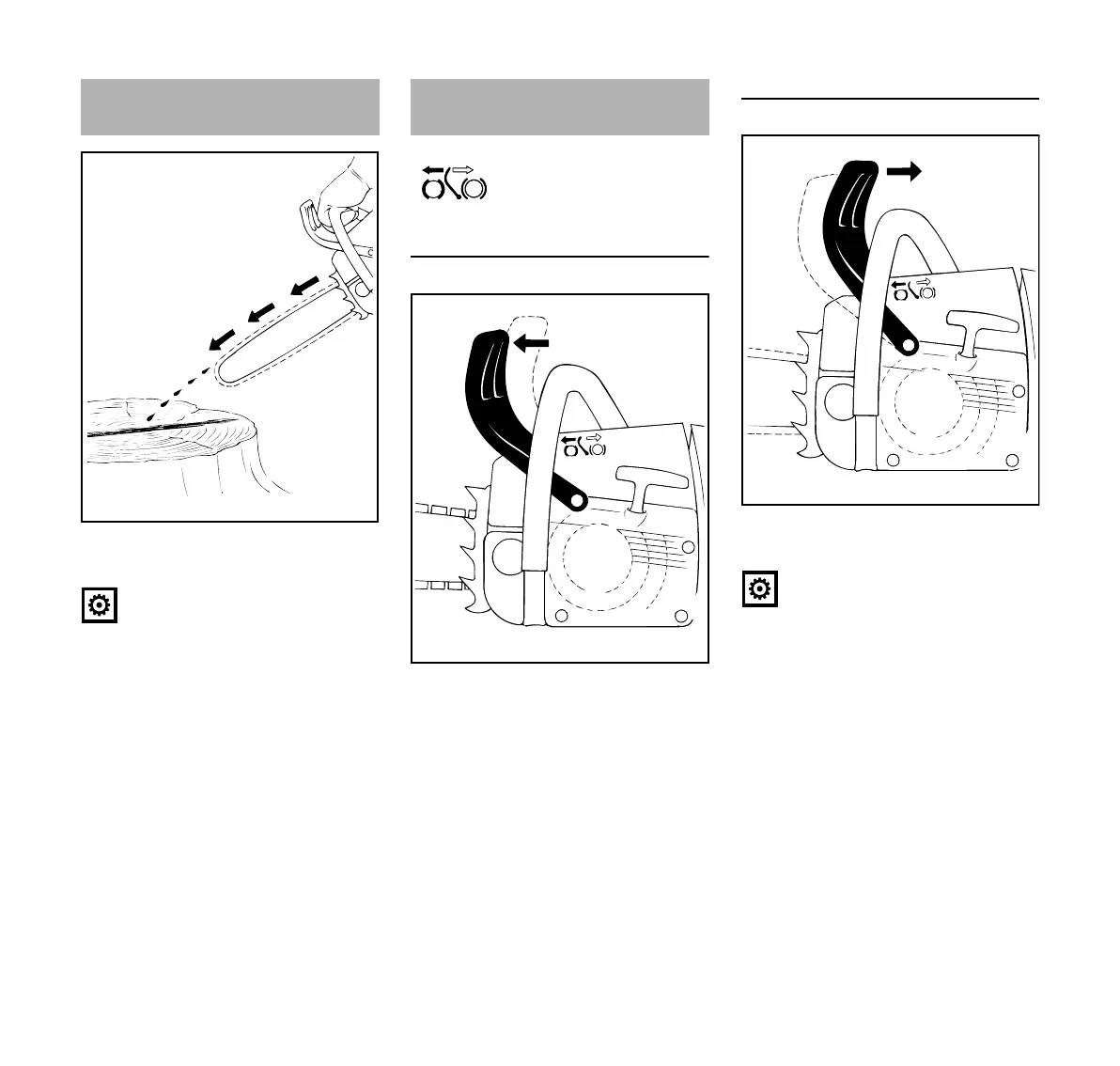

Releasing the chain brake
N Pull hand guard towards the front
handle until it engages audibly –
chain brake is released
Fitting the saw chain
WARNING
Put on protective gloves – risk of injury
by the sharp cutters.
N Fit the saw chain – starting at the
nose of the guide bar – pay attention
to the position of the tensioning gear
and the cutting edges
N Turn tensioning gear (1) to the right
as far as possible
N Turn the guide bar so that the
tensioning gear faces the user
N Place the saw chain on the chain
sprocket (2)
N Slide the guide bar over the collar
screw (3); the head of the rear collar
screw must protrude into the oblong
hole
2310BA015 KN
2
1
3
2310BA016 KN
2
2310BA017 KN
001BA186 KN
1
181BA012 KN
2
3
181BA013 KN
