MS 171, MS 171 C, MS 181, MS 181 C, MS 211, MS 211 C
English
35
N Flip the bar – after each sharpening
and each time the chain is changed
– to avoid uneven wear, especially
at the sprocket nose and on the
bottom

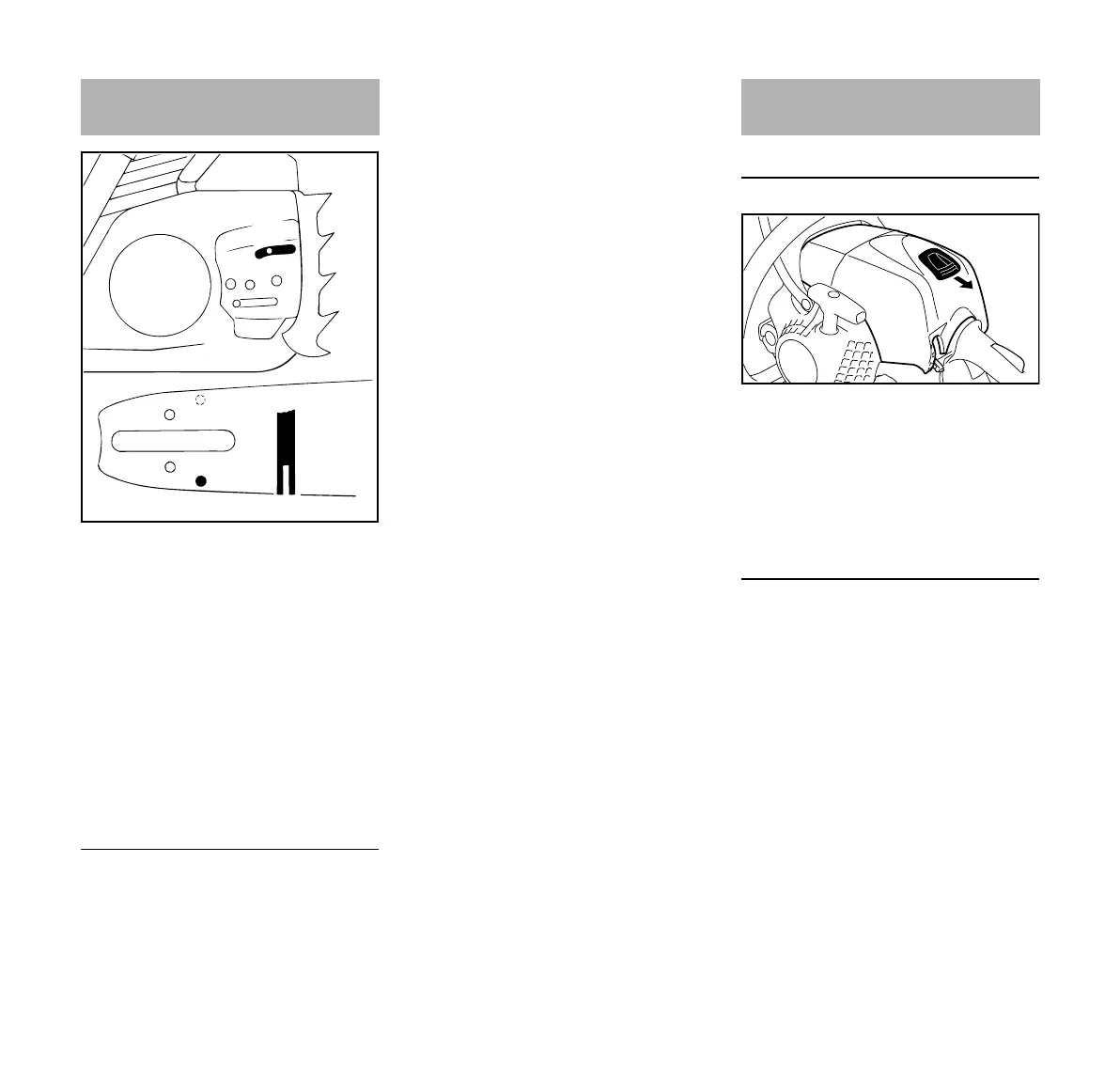

N Periodically clean the oil inlet
hole (1), oil outlet channel (2) and
bar groove (3)
N Measure groove depth – using the
measuring tool on the file gauge
(special accessory) – in the area
with the greatest wear
If the groove is not at least this deep:
N Replace guide bar
Otherwise the drive links will grind
against the base of the groove – the
bottoms of the cutters and the tie straps
will not lie against the bar.
Removing the shroud

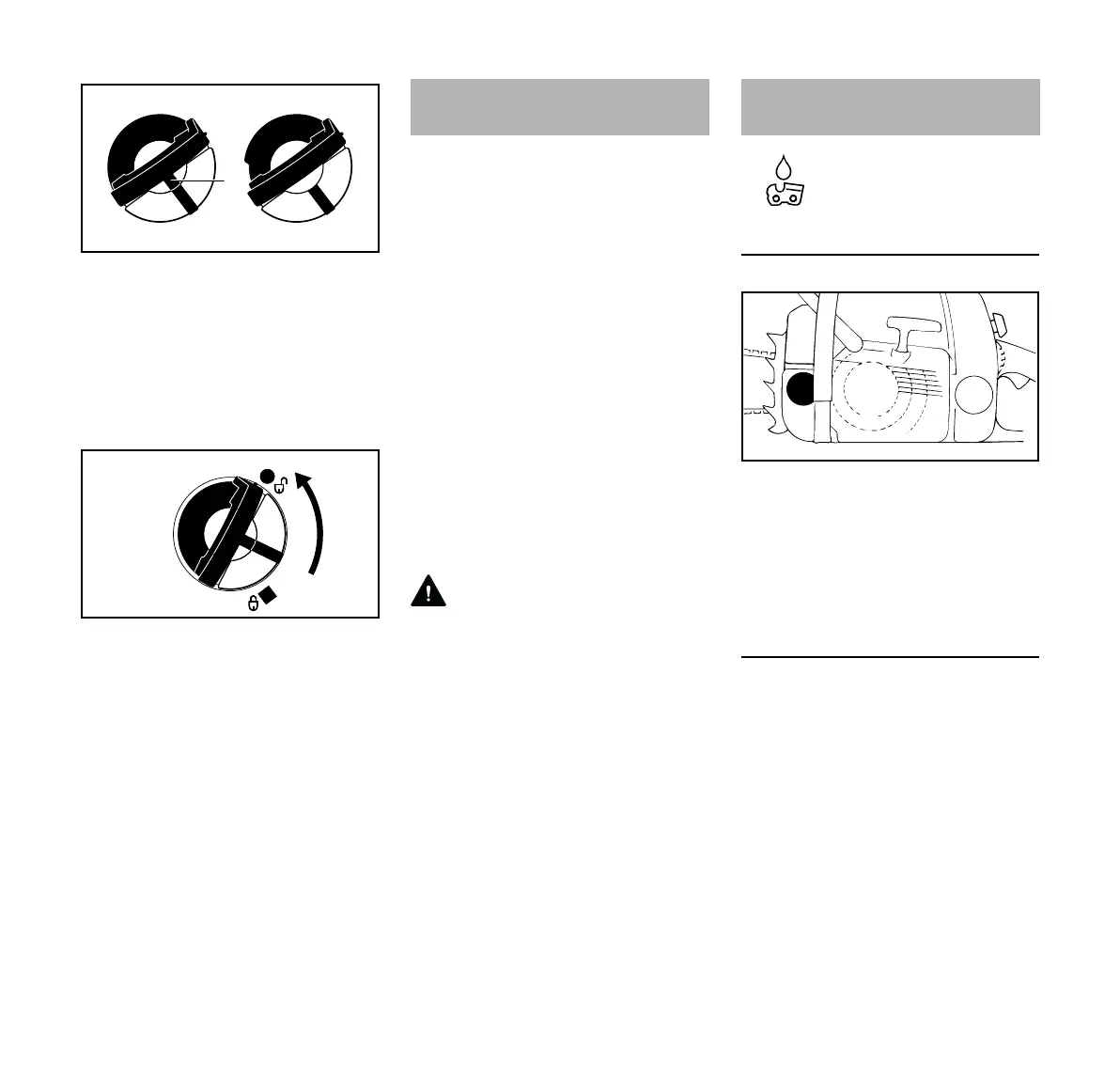

N Squeeze the throttle trigger and
move the Master Control lever to l
.
N Slide the lock to the rear.
N Remove the shroud upwards to the
rear.
Installing the shroud
N Refit the shroud and secure it with
the lock.
Taking Care of the Guide Bar
Chain type Chain pitch Minimum
groove depth
Picco 1/4“ P 4.0 mm
Rapid 1/4“ 4.0 mm
2
3
1
143BA026 KN
Picco 3/8“ P 5.0 mm
Rapid 3/8“; 0.325“ 6.0 mm
Rapid 0.404“ 7.0 mm
Shroud
533BA002 KN
