63MS 171, MS 181, MS 211

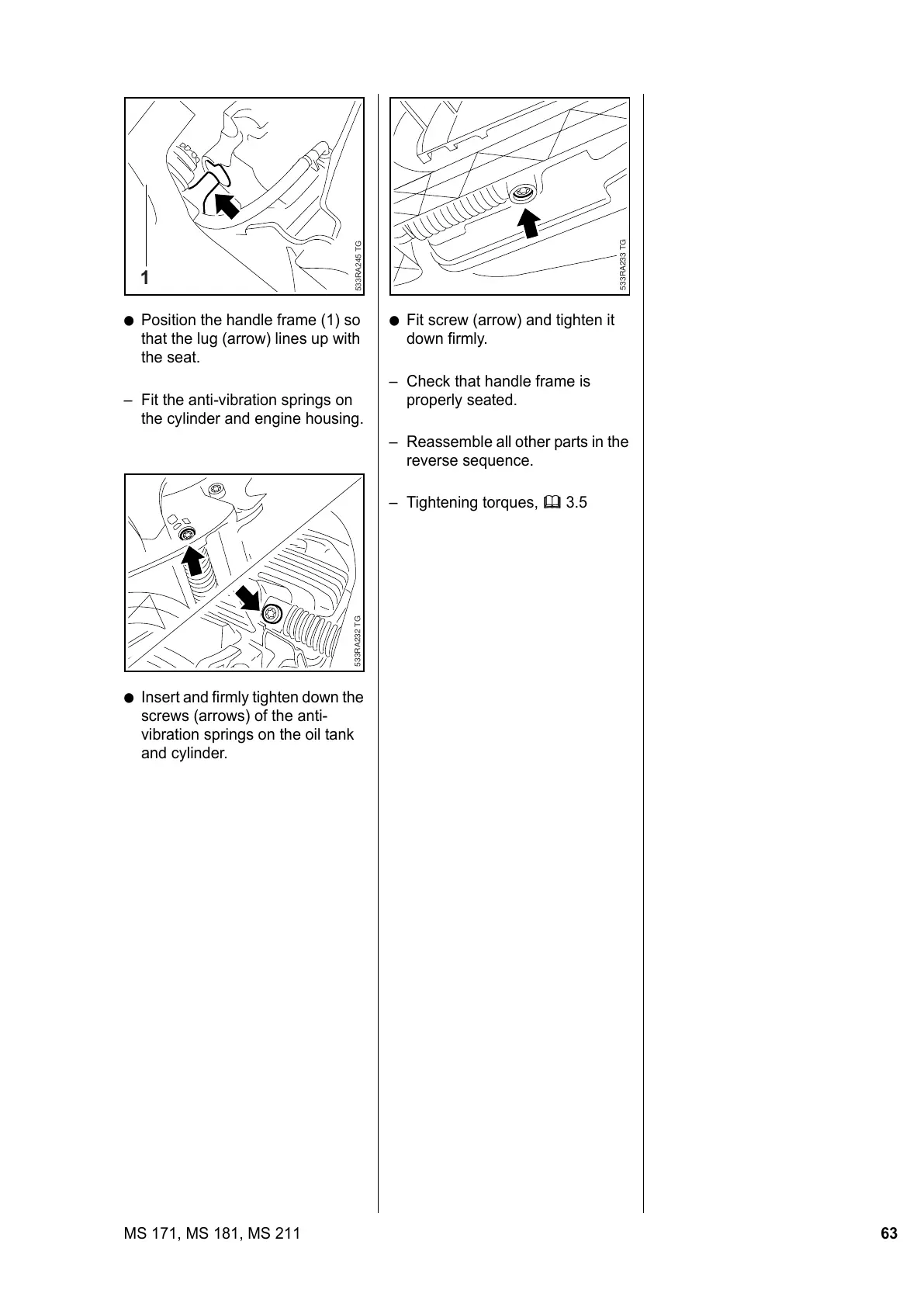

: Position the handle frame (1) so
that the lug (arrow) lines up with
the seat.
– Fit the anti-vibration springs on
the cylinder and engine housing.
: Insert and firmly tighten down the
screws (arrows) of the anti-
vibration springs on the oil tank
and cylinder.
533RA245 TG
1
533RA232 TG
: Fit screw (arrow) and tighten it
down firmly.
– Check that handle frame is
properly seated.
– Reassemble all other parts in the
reverse sequence.
– Tightening torques, b 3.5
533RA233 TG
