50 MS 210, MS 230, MS 250
– Remove the front handle –
b 9.2.
– Remove the fan housing –
b 8.2.
– Remove the muffler – b 6.1.
– Remove the carburetor –
b 11.2.2.

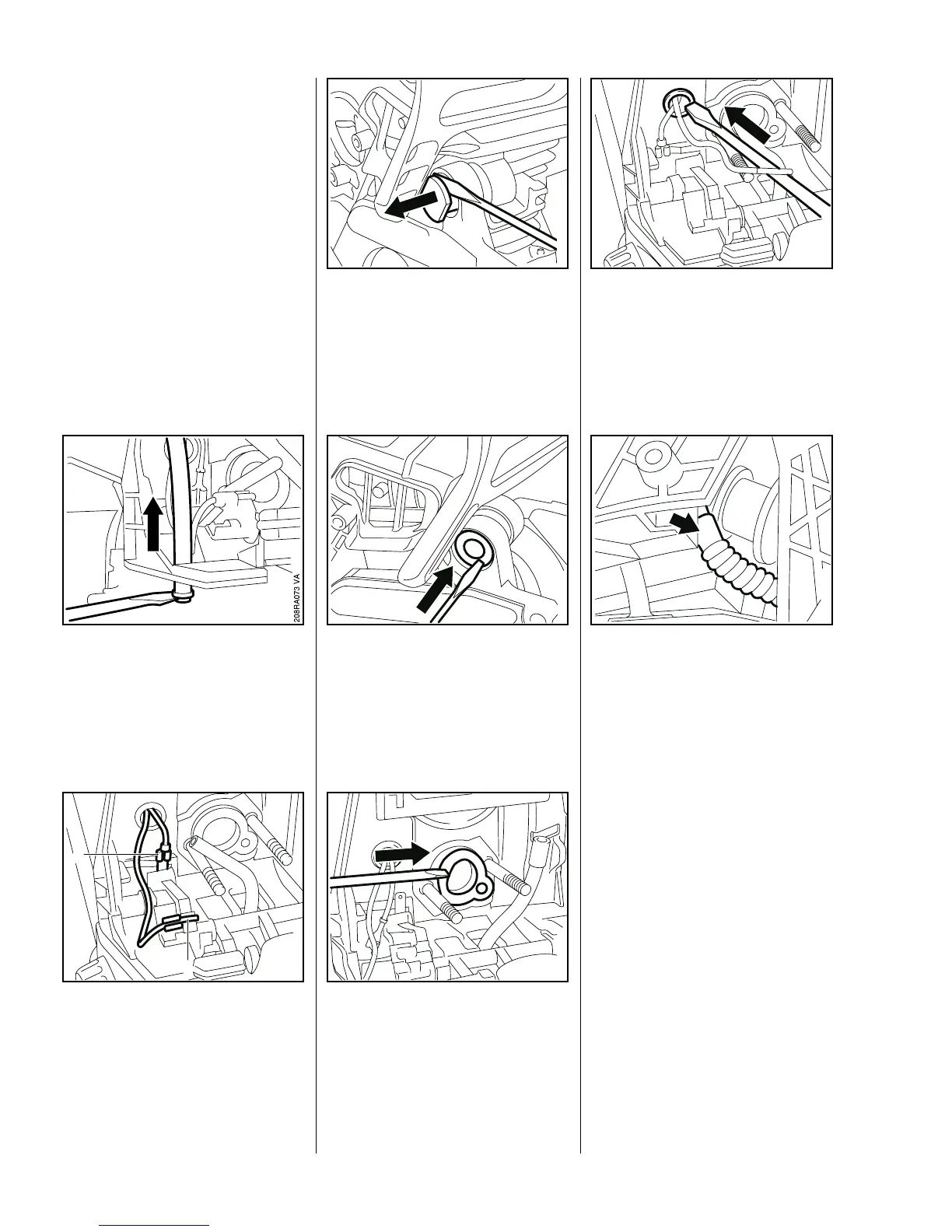

: Disconnect tank vent hose from
the stub.
: Pull the ground wire (1) off the
contact spring.
: Pull the short circuit wire's
contact sleeve (2) out of the
switch shaft.
135RA135 VA
1
2
: Ease the plug out of the annular
buffer.
135RA136 VA
: Pry the annular buffer out of the
engine housing.
135RA137 VA
: Pull the handle housing slightly
forward and push the manifold
through the handle housing
opening at the same time.
135RA138 VA
: Push the grommet out of the
handle housing.
– Pull the ground and short circuit
wires out of the bore.
135RA139 VA
: Pull the impulse hose off the stub
on the handle housing.
V
A
1
3
5
R
A
1
4
0
9.3 Handle Housing

Stihl MS 230 Specifications

General

Engine Power	2.0 kW
Displacement	40.2 cc
Weight	4.6 kg
Power Output	2.0 kW
Chain Pitch	3/8"
Powerhead Weight	4.6 kg
Bar Length	40 cm
Oil Capacity	200 cc
Bar Lengths Available	35 cm (14") / 40 cm (16")
