52 MS 210, MS 230, MS 250
– Remove the carburetor box cover
– b 11.1.

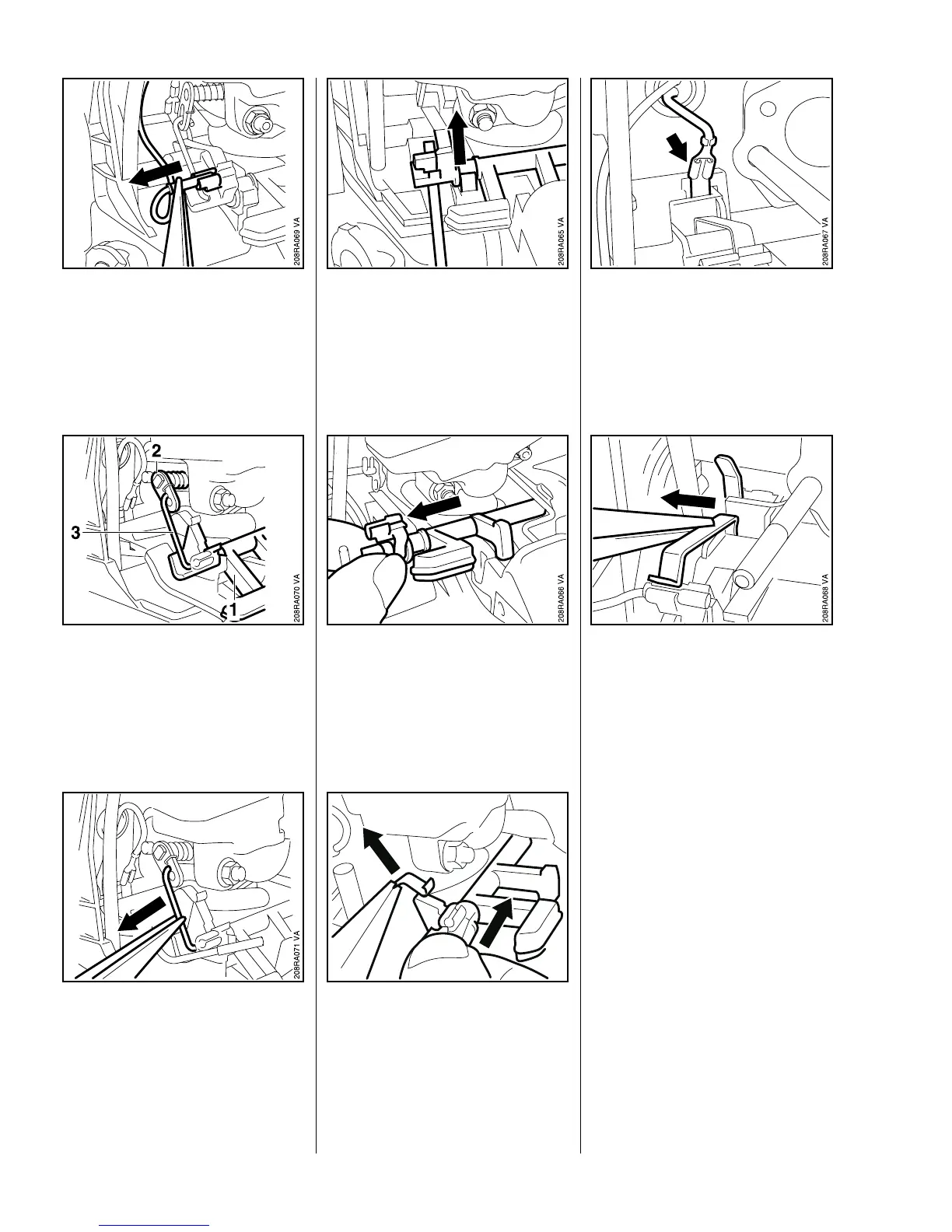

: Pull the contact sleeve out of the
switch shaft.
: Move the Master Control lever (1)
until the slot in the choke shaft (2)
and the choke rod (3) are in line.
: Pull the choke rod out of the
switch shaft and the choke shaft.
: Set the Master Control lever to
the horizontal position and pry
the switch shaft out of its pivot
mount.
: Pull the switch shaft out of its
bore.
Install in the reverse sequence.
: Lift the contact spring slightly to
install the switch shaft.
VA
135RA153
– Remove the carburetor –
b 11.2.2.
: Pull the ground wire terminal off
the contact spring.
: Pull the contact spring out its seat
in the handle housing.
Install in the reverse sequence.
9.4 Switch Shaft 9.5 Contact Spring
