: Fit the handle molding so that it
engages behind the lugs as
shown.
– Insert screw and tighten down to
1.6 Nm (1.2 lbf.ft).
– Fit the carburetor box cover –
VA
135RA163
b 11.1.
Impurities gradually clog the fine
pores of the filter with minute
particles of dirt. This prevents the oil
pump from supplying sufficient oil to
the bar and chain. In the event of
problems with the oil supply system,
first check the oil tank and the
pickup body. Clean the oil tank if
necessary.
Troubleshooting chart – b 4.3.
– Unscrew oil filler cap and drain
the oil tank.
Collect chain oil in a clean container
or dispose of it properly at an
approved disposal site.
– Observe safety precautions –
b 2.

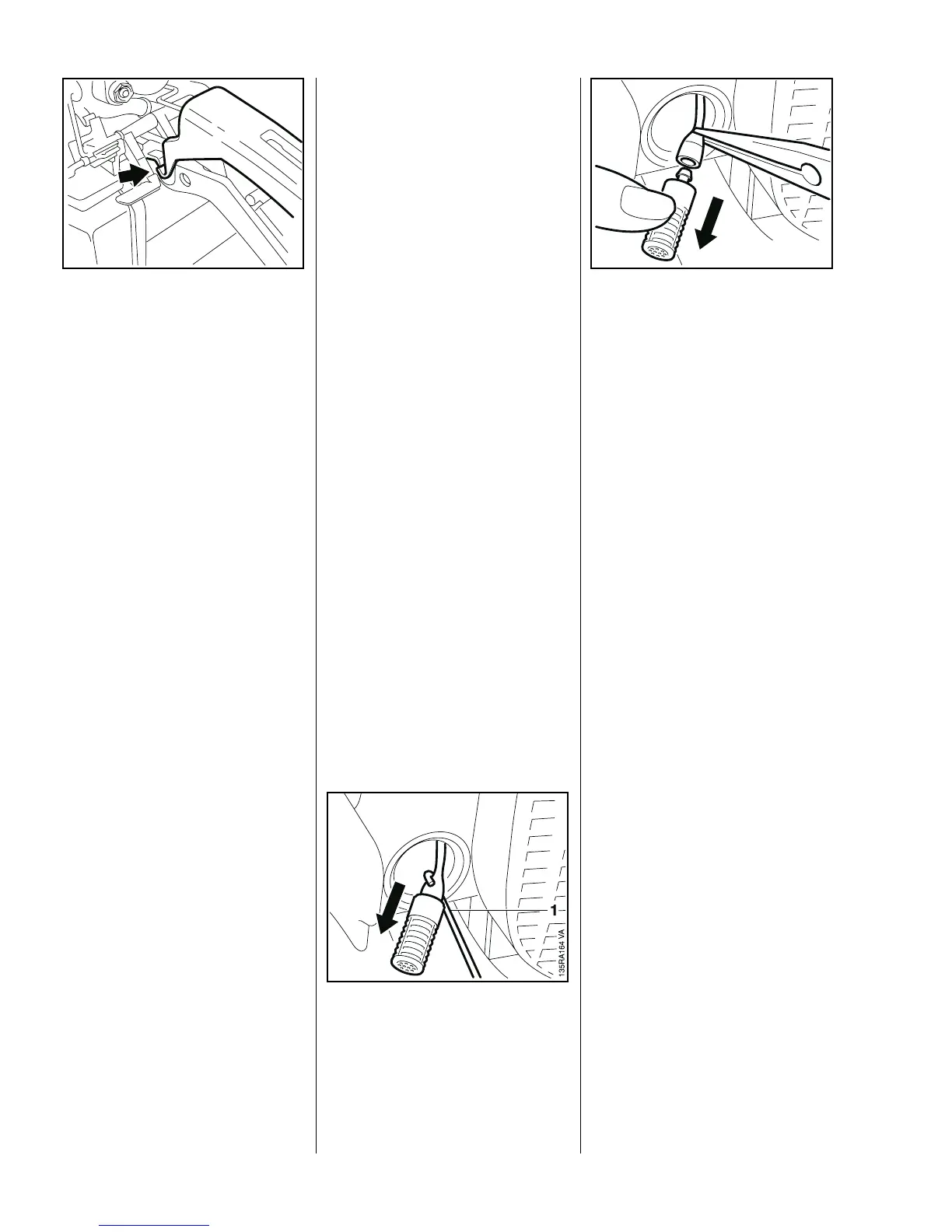

: Use hook (1) 5910 893 8800 to
withdraw the pickup body from
the oil tank.
Avoid stretching the oil suction
hose.
: Pull the pickup body out of the oil
suction hose.
– Wash the pickup body in STIHL
cleaner and, if possible, blow out
with compressed air.
– Replace pickup body if it is
V
A
13
5R
A
16
5
damaged.
– Flush out the oil tank.
Install in the reverse sequence.
10. Chain Lubrication
10.1 Pickup Body
