56 MS 210, MS 230, MS 250

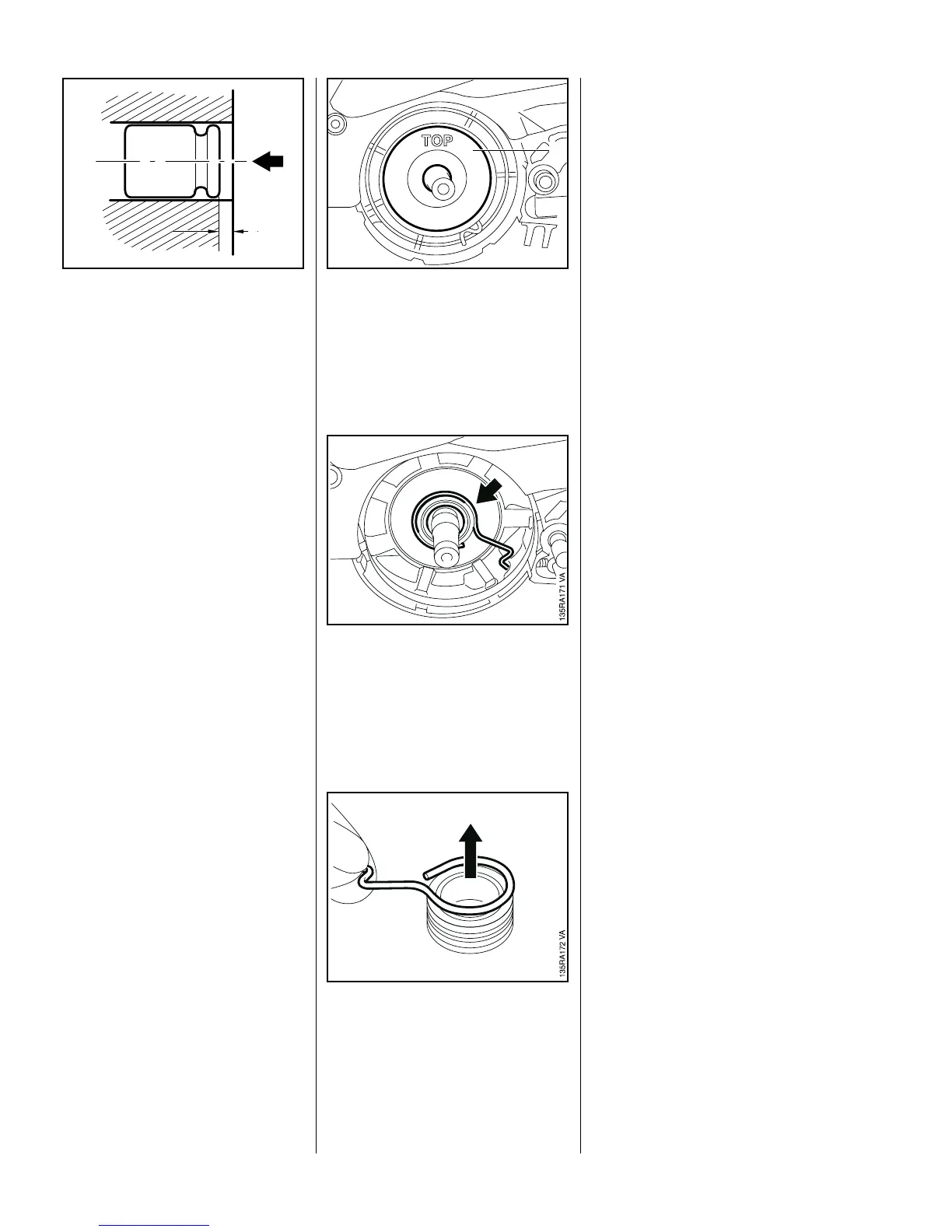

: Use a 7 mm (9/32") dia. drift to
carefully push home the new
valve until dimension 'a' is about
1 mm (3/64").
– Fit the oil filler cap.
VA
176RA243
a
– Remove the clutch – b 8.
: Remove the cover washer (1).
VA
208RA018
1
: Pull the worm and drive spring
(arrow) off the crankshaft stub.
: Take the drive spring off the
worm.
Reassemble in the reverse
sequence.
Fit the cover washer so that the
word "TOP" faces outwards.
10.4 Worm

Stihl MS 230 Specifications

General

Engine Power	2.0 kW
Displacement	40.2 cc
Weight	4.6 kg
Power Output	2.0 kW
Chain Pitch	3/8"
Powerhead Weight	4.6 kg
Bar Length	40 cm
Oil Capacity	200 cc
Bar Lengths Available	35 cm (14") / 40 cm (16")
