Stihl MS 231 User Manual

51MS 231, MS 231 C, MS 251, MS 251 C

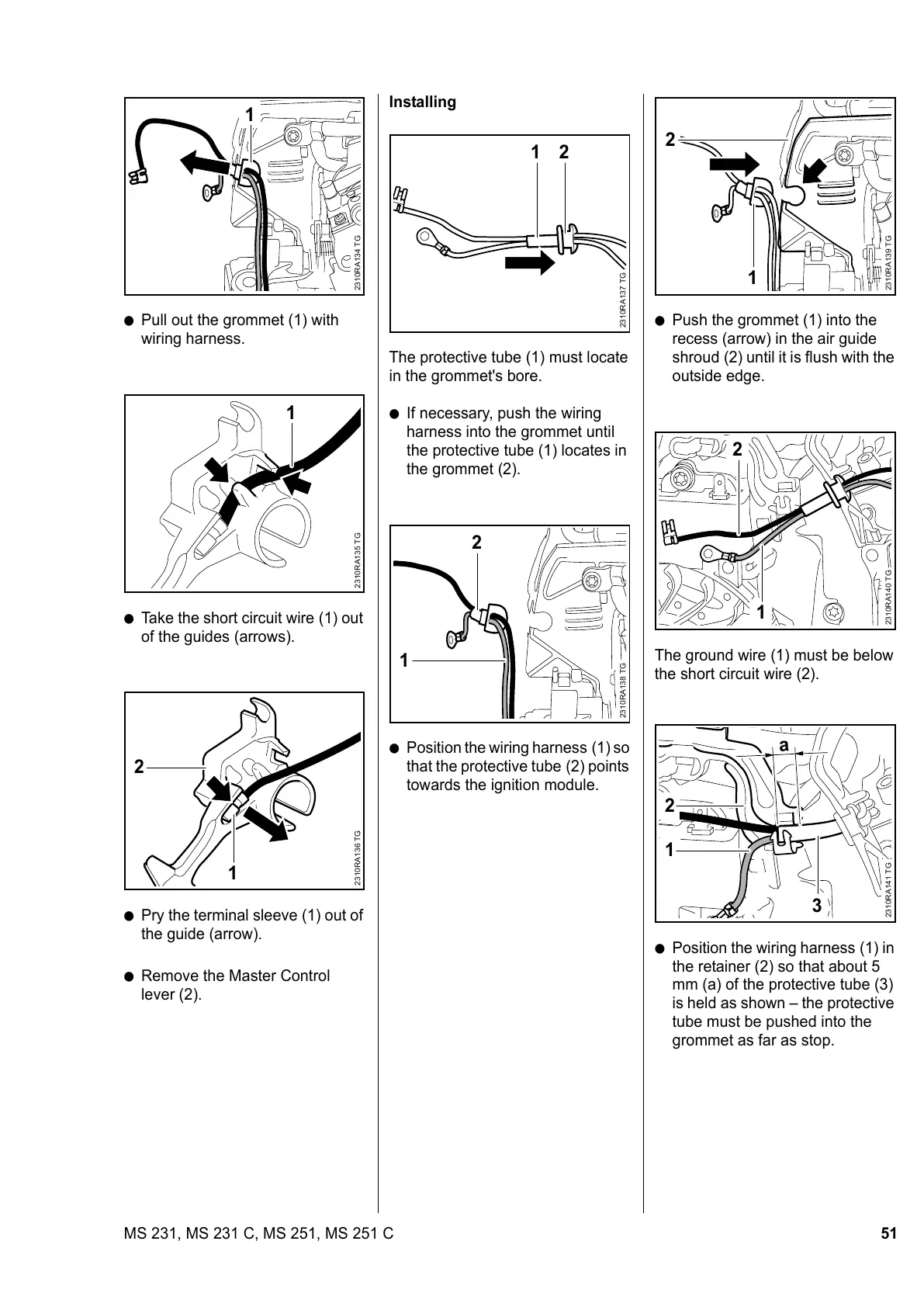

: Pull out the grommet (1) with
wiring harness.
: Take the short circuit wire (1) out
of the guides (arrows).
: Pry the terminal sleeve (1) out of
the guide (arrow).
: Remove the Master Control
lever (2).
2310RA134 TG
1
2310RA135 TG
1
2310RA136 TG
1
2
Installing
The protective tube (1) must locate
in the grommet's bore.
: If necessary, push the wiring
harness into the grommet until
the protective tube (1) locates in
the grommet (2).
: Position the wiring harness (1) so
that the protective tube (2) points
towards the ignition module.
2310RA137 TG
1 2
2
2310RA138 TG
1
: Push the grommet (1) into the
recess (arrow) in the air guide
shroud (2) until it is flush with the
outside edge.
The ground wire (1) must be below
the short circuit wire (2).
: Position the wiring harness (1) in
the retainer (2) so that about 5
mm (a) of the protective tube (3)
is held as shown – the protective
tube must be pushed into the
grommet as far as stop.
2
2310RA139 TG
1
2310RA140 TG
2
1
2310RA141 TG
2
3
1
a
All manuals and user guides at all-guides.com

Stihl MS 231 Specifications

General

Power-to-Weight Ratio	2.4 kg/kW
Oilomatic Chain Pitch	3/8" P
Sound Pressure Level	103 dB(A)
Sound Power Level	114 dB(A)
Engine Power	2.0 kW
Weight	4.8 kg
Bar Length	35 cm / 40 cm
Fuel Capacity	390 cc
Chain Oil Capacity	200 ml
Vibration Level Left/Right	3.0/3.0 m/s²
