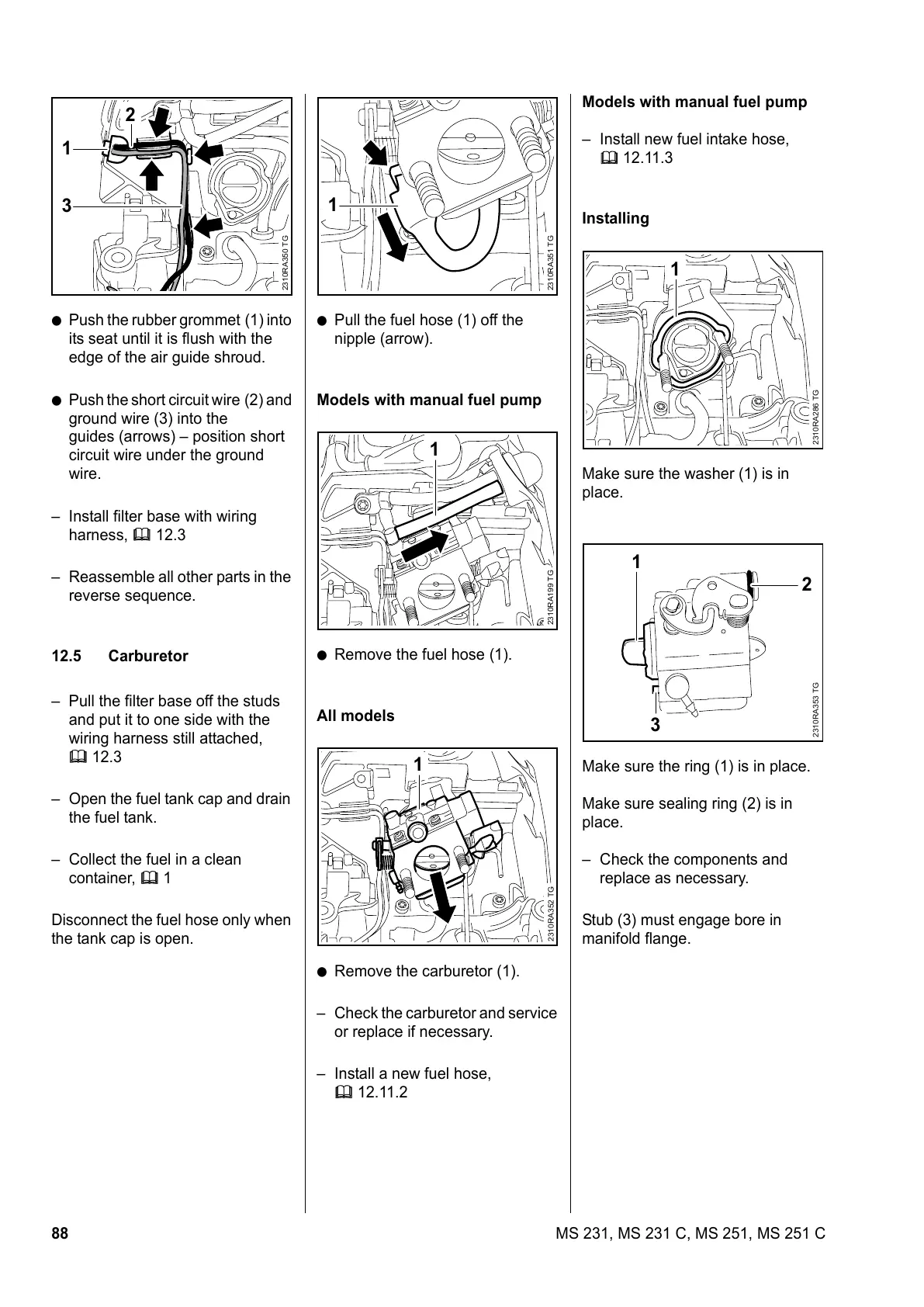

88 MS 231, MS 231 C, MS 251, MS 251 C
: Push the rubber grommet (1) into
its seat until it is flush with the
edge of the air guide shroud.
: Push the short circuit wire (2) and
ground wire (3) into the
guides (arrows)position short
circuit wire under the ground
wire.
Install filter base with wiring
harness, b 12.3
Reassemble all other parts in the
reverse sequence.
12.5 Carburetor
Pull the filter base off the studs
and put it to one side with the
wiring harness still attached,
b 12.3
Open the fuel tank cap and drain
the fuel tank.
Collect the fuel in a clean
container, b 1
Disconnect the fuel hose only when
the tank cap is open.
2310RA350 TG
1
2
3
: Pull the fuel hose (1) off the
nipple (arrow).
Models with manual fuel pump
: Remove the fuel hose (1).
All models
: Remove the carburetor (1).
Check the carburetor and service
or replace if necessary.
Install a new fuel hose,
b 12.11.2
2310RA351 TG
1
2310RA199 TG
1
2310RA352 TG
1
Models with manual fuel pump
Install new fuel intake hose,
b 12.11.3
Installing
Make sure the washer (1) is in
place.
Make sure the ring (1) is in place.
Make sure sealing ring (2) is in
place.
Check the components and
replace as necessary.
Stub (3) must engage bore in
manifold flange.
2310RA286 TG
1
2310RA353 TG
2
3
1
