MSE 170 C, MSE 190 C, MSE 210 C, MSE 230 C
English
19

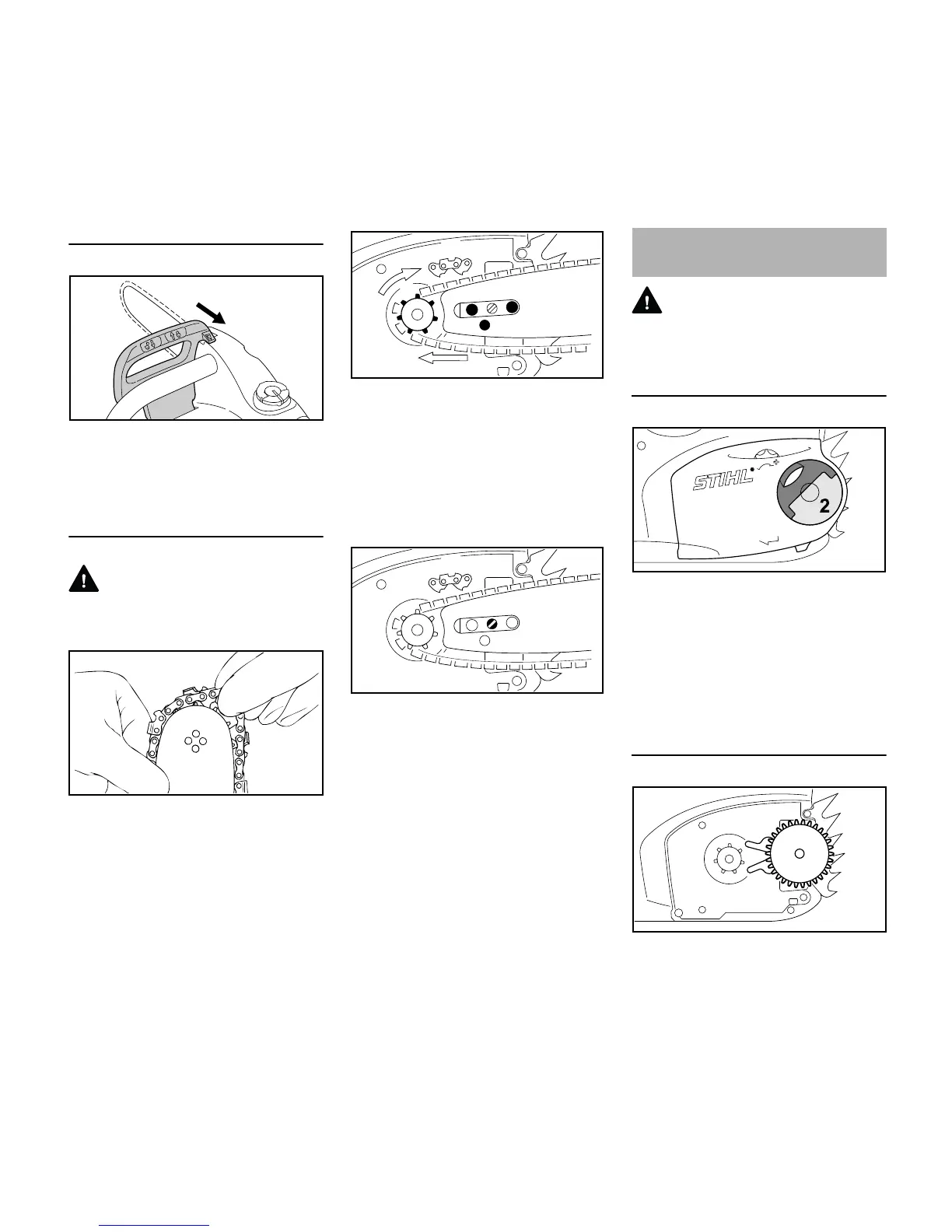

Disengage the chain brake.
N Pull the hand guard towards the
front handle until there is an audible
click – the chain brake is
disengaged.
Fitting the chain
WARNING
Wear work gloves to protect your hands
from the sharp cutters.
N Fit the chain – start at the bar nose.
N Turn the guide bar so that the chain
is positioned as shown in the
pictogram (1) – the arrows show the
chain's direction of rotation.
N Fit the guide bar over the studs (2)
and engage the tensioner slide in
the hole (3) – place the chain over
the sprocket (4) at the same time.
N Turn the tensioning screw (5)
clockwise until there is very little
chain sag on the underside of the
bar – and the drive link tangs are
engaged in the bar groove.
N Refit the sprocket cover and tighten
the nut only moderately by hand –
finally tighten the nut only after
tensioning the saw chain.
N Go to chapter on "Tensioning the
Saw Chain"
WARNING
Do not connect the power tool to the wall
outlet yet.
Removing the chain sprocket cover
N Pull the hinged handle (1) out until it
engages in the upright position.
N Turn the wingnut (2)
counterclockwise until it hangs
loose in the sprocket cover (3).
N Remove the chain sprocket
cover (3).
Fitting the tensioning gear
N Remove the tensioning gear (1) and
turn it over.
