English 9 Removing and Fitting the Battery

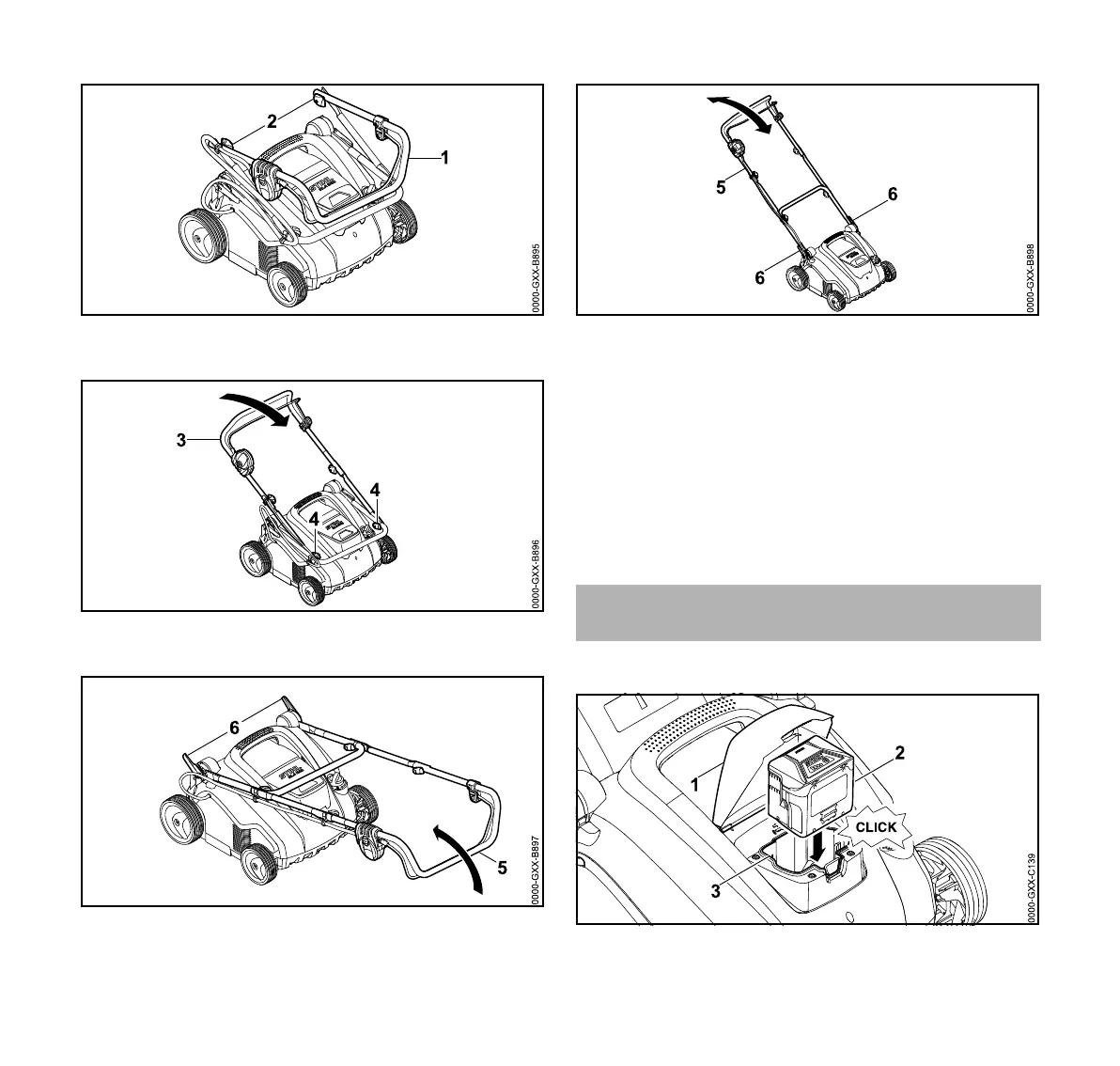

► Fold up upper handlebar (1).
► Tighten wing nuts (2).
► Fold up centre handlebar section (3).
► Tighten wing nuts (4).
► Open quick-clamping devices (6).
► Fold up handlebar (5) fully.
► Align handlebar (5) in the desired position and lock using
quick-clamping devices (6).
8.2 Folding the Handlebar
► Switch the lawn scarifier off, pull out the activation key and
remove the battery.
► Place the lawn scarifier on a level surface.
► Open the quick-clamping devices.
► Fold down the handlebar forwards, ensuring that the cable
is not trapped.
9.1 Fitting the Battery
► Open flap (1) as far as the stop and hold.
9 Removing and Fitting the Battery
