English 7 Assembling the Lawn Mower

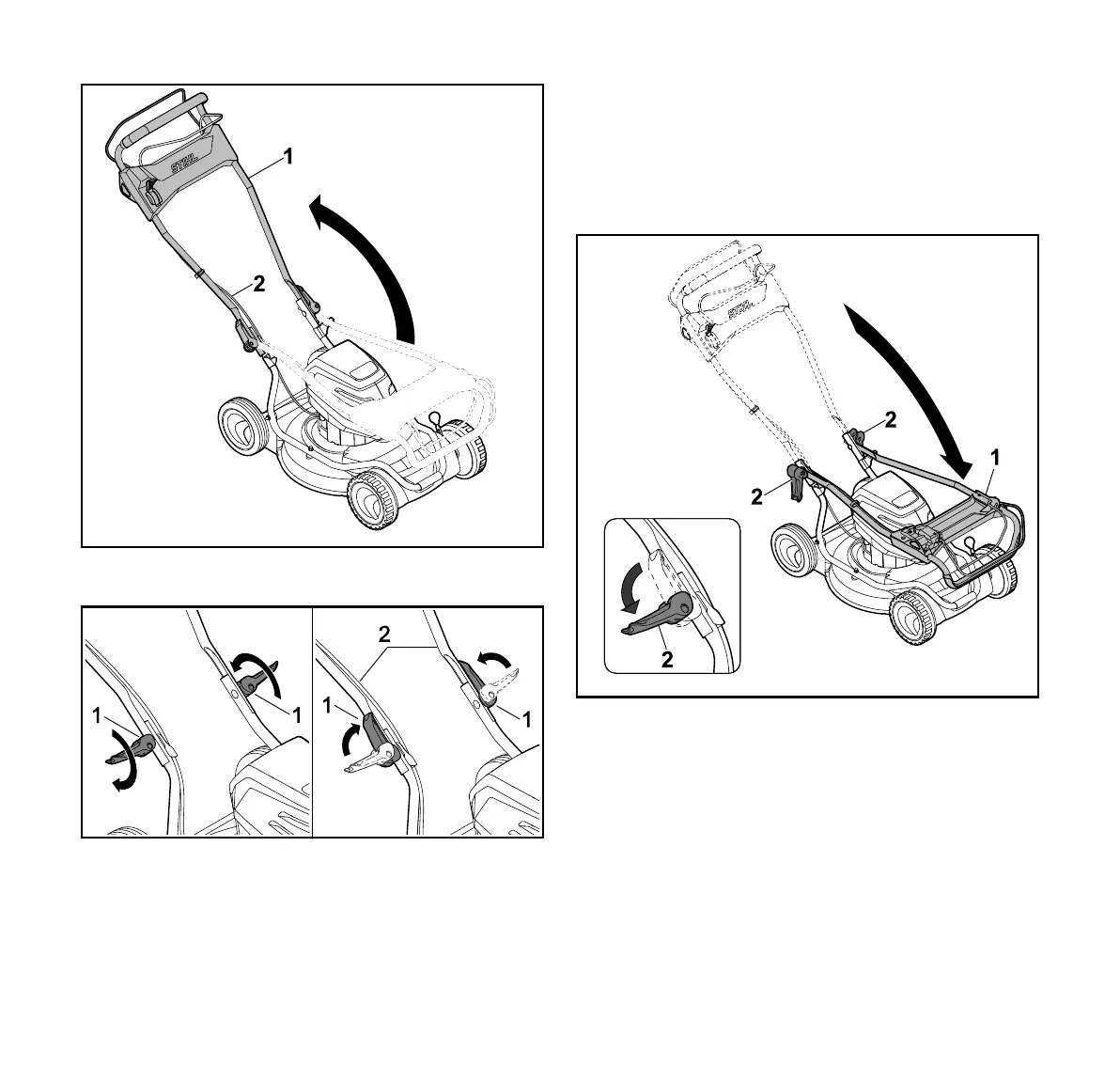

► Fold up handlebar (1), ensuring that cables (2) are not
trapped.
► Screw in quick-clamping devices (1).
► Close quick-clamping devices (1) in the direction of
handlebar (2).
Handlebar (2) is firmly attached to the lawn mower and
quick-clamping devices (1) lie flat against handlebar (2).
7.1.2 Folding the Handlebar
The handlebar can be folded for space-saving transport or
storage.
► Switch the lawn mower off, pull out the activation key and
remove the battery.
► Place the lawn mower on a level surface.
► Hold handlebar (1) and open quick-clamping devices (2).
► Fold down handlebar (1) forwards.

Stihl RMA 2 RV Specifications

General

Type	Walk behind lawn mower
Cutting width	460 mm
Grass catcher	-
Product color	Black, Grey, Orange
Uncertainty K	0.7 m/s²
Ergonomic handle	Yes
Number of wheels	4 wheel(s)
Rotational speed	3150 RPM
Maximum lawn area	510 m²
Sound power level	88 dB
Handle(s) features	Adjustable, Ergonomic, Foldable, Soft grip
Standard deviation	2 dB
Vibration emission	1.4 m/s²
Sound pressure level	86 dB
Front wheels diameter	200 mm
Maximum cutting height	85 mm
Minimum cutting height	25 mm
Suitable for slope up to	14 °
Power source	Battery
Battery voltage	36 V

Weight and Dimensions

Depth	1420 mm
Width	500 mm
Height	1060 mm
Weight	23000 g
