0478-131-9838-A
17
English
12 Operating the Lawn Mower

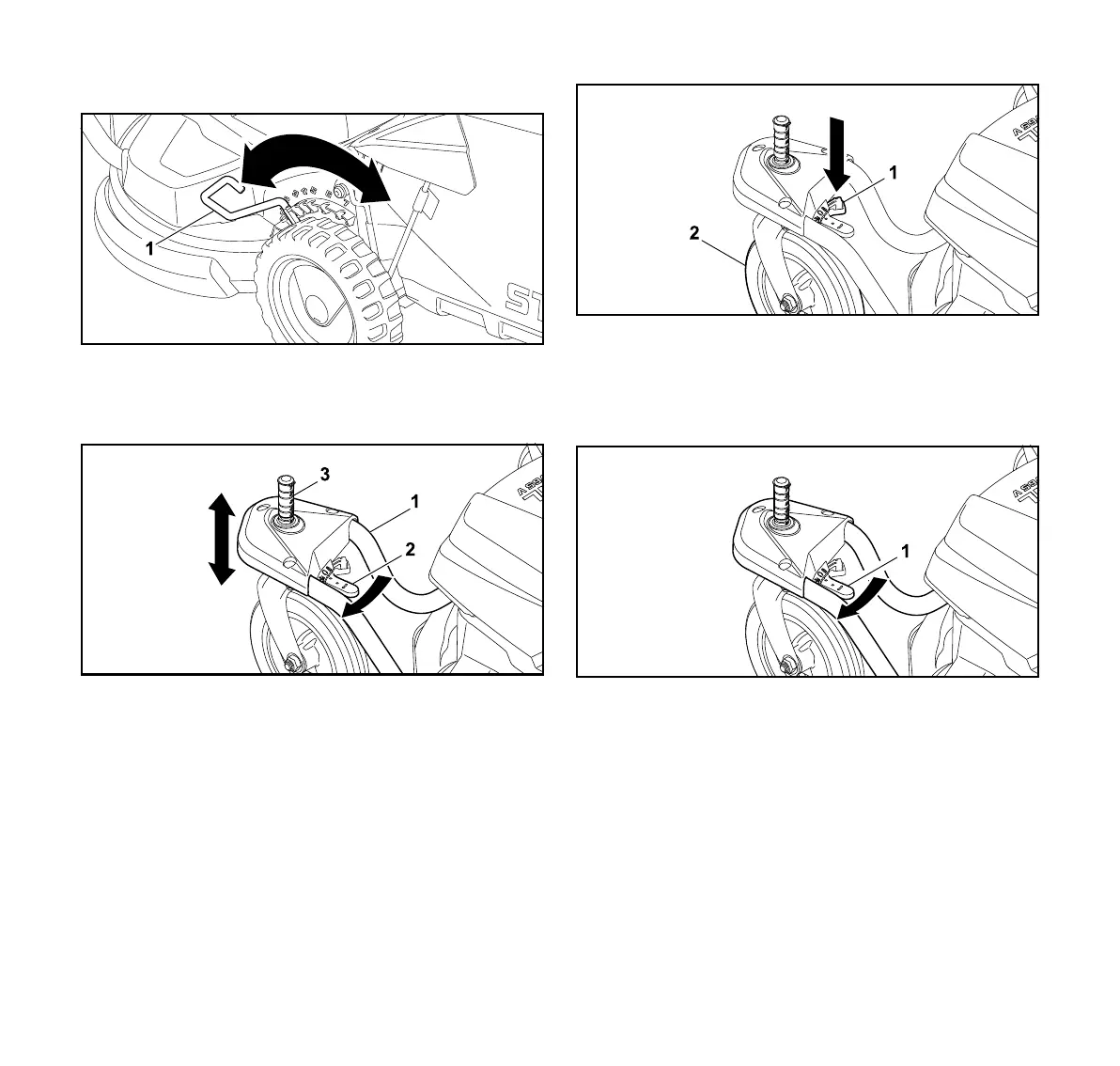

Setting the rear cutting height
► Pull lever (1) from the notch and moved to the desired
position.
Setting the front cutting height
► Hold wheel fork (1) with the hand.
The lawn mower cannot drop into the lowest position
under its own weight.
► Press release lever (2) in the direction of the arrow and
hold.
► Move axle (3) into the desired position.
► Release release lever (2).
Axle (3) engages.
12.3 Locking the Front Wheels
The front wheels can be locked for mowing on slopes.
► Press button (1).
► Straighten front wheel (2) and allow to engage.
► Lock the second front wheel too.
Releasing the lock
► Push release lever (1) in the direction of the arrow.
12.4 Activating and Deactivating ECO Mode
ECO mode is activated after the lawn mower is switched on.
When ECO mode is activated, the lawn mower detects the
current working conditions and adjusts the blade speed
automatically.
This may extend the battery life.
