0478-131-9838-A
4
English
3 Overview
2 Control bar for mowing
The control bar for mowing switches the blades on and
off together with the ON button.
3 Control bar for self-propulsion
The control bar for self-propulsion activates and
deactivates drive system.
4 Grass catcher box
The grass catcher box collects the mown grass.
5 Discharge flap
The discharge flap closes off the discharge chute.
6Lever
The lever is used to set the cutting height of the rear
wheels.
7Lever
The lever is used to set the cutting height and to lock and
release the front wheels.
8Flap
The flap covers the battery and the activation key.
9Lever
The lever is used to adjust and fold down the handlebar.
10 Handlebar
The handlebar is used to hold, guide and transport the
lawn mower.
11 Rotary wheel
The rotary wheel is used to set the maximum speed.
12 ON button
The ON button switches the lawn mower on and,
together with the control lever for mowing, activates the
blades.
13 ECO switch
The ECO switches activates and deactivates ECO mode.
14 Charge state indicator
The LEDs indicate the charge state and battery faults
when the ON button is pressed.
15 Warning triangle
The warning triangle indicates faults in the lawn mower.
16 Indicator for ADA 700 double-battery compartment
The LEDs indicate the battery currently in use.
17 Activation key
The activation key activates the lawn mower.
# Rating plate with machine number

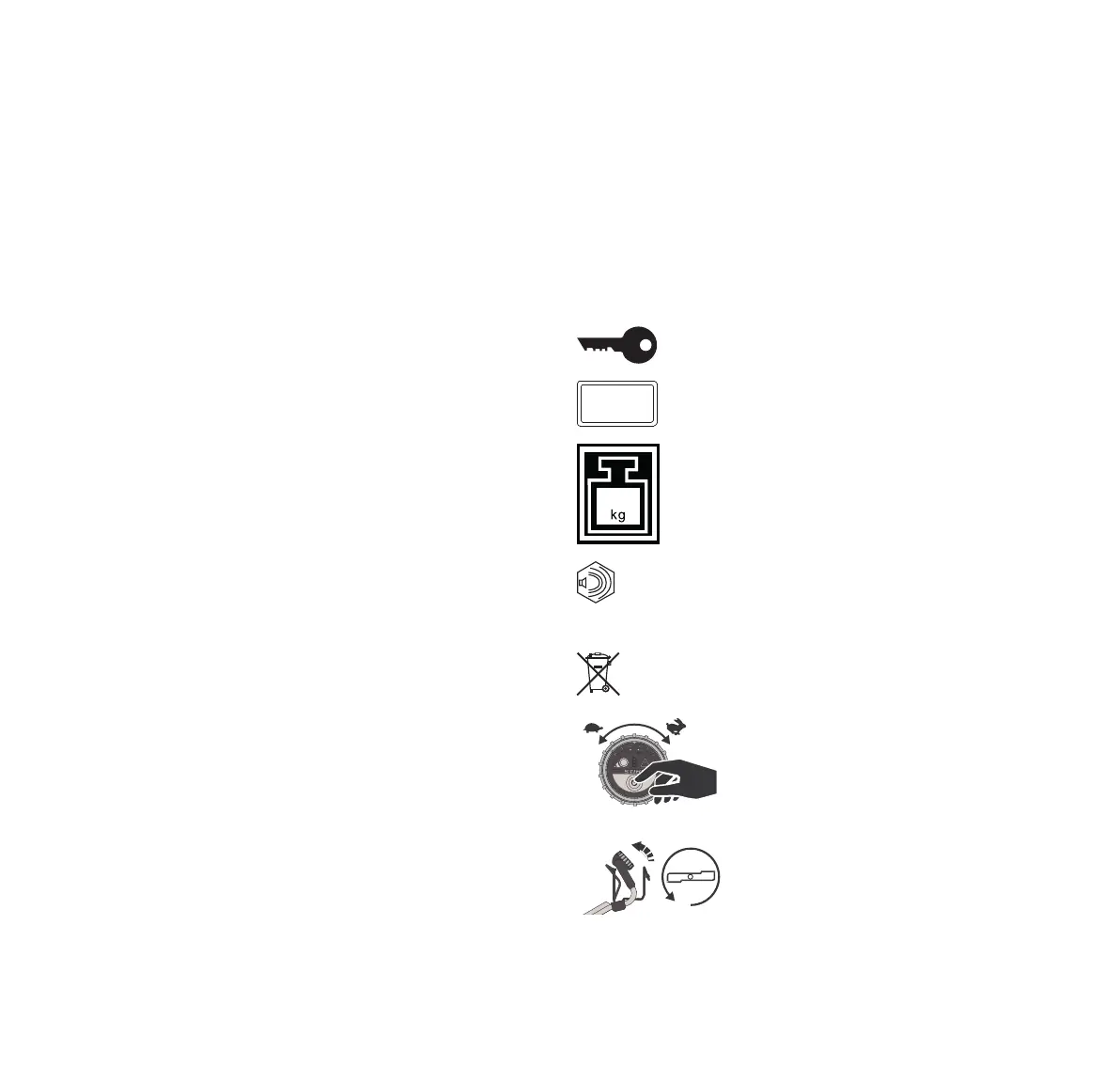

3.2 Symbols
The symbols can be on the lawn mower or battery and have
the following meaning:
This symbol identifies the activation key.
This symbol identifies the ECO switch.
The symbol indicates the lawn mower weight.
Guaranteed sound power level in accordance
with Directive 2000/14/EC in dB(A) for the
purpose of comparing the sound emissions of
products.
Do not dispose of the product with domestic waste.
Switch the lawn mower on and set
maximum speed.
Activate the mowing blade.
ECOECO
XX
L
WA

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Stihl RMA 765 V and is the answer not in the manual?

Stihl RMA 765 V Specifications

General IconGeneral
Cutting width630 mm
Grass catcherYes
Product colorBlack, Grey, Orange
Uncertainty K0.7 m/s²
Housing materialAluminium, Plastic
Number of wheels4 wheel(s)
Rotational speed3300 RPM
Maximum lawn area- m²
Mulching function-
Sound power level93 dB
Handle(s) featuresAdjustable, Foldable
Vibration emission1.4 m/s²
Rear wheels diameter230 mm
Sound pressure level92.2 dB
Front wheels diameter200 mm
Maximum cutting height100 mm
Minimum cutting height25 mm
Grass collecting volume80 L
Power sourceBattery
Battery voltage36 V
Weight and Dimensions IconWeight and Dimensions
Depth1650 mm
Width690 mm
Height1230 mm
Weight44000 g
