Stihl SG 51 User Manual

SG 51, SG 71
English
9

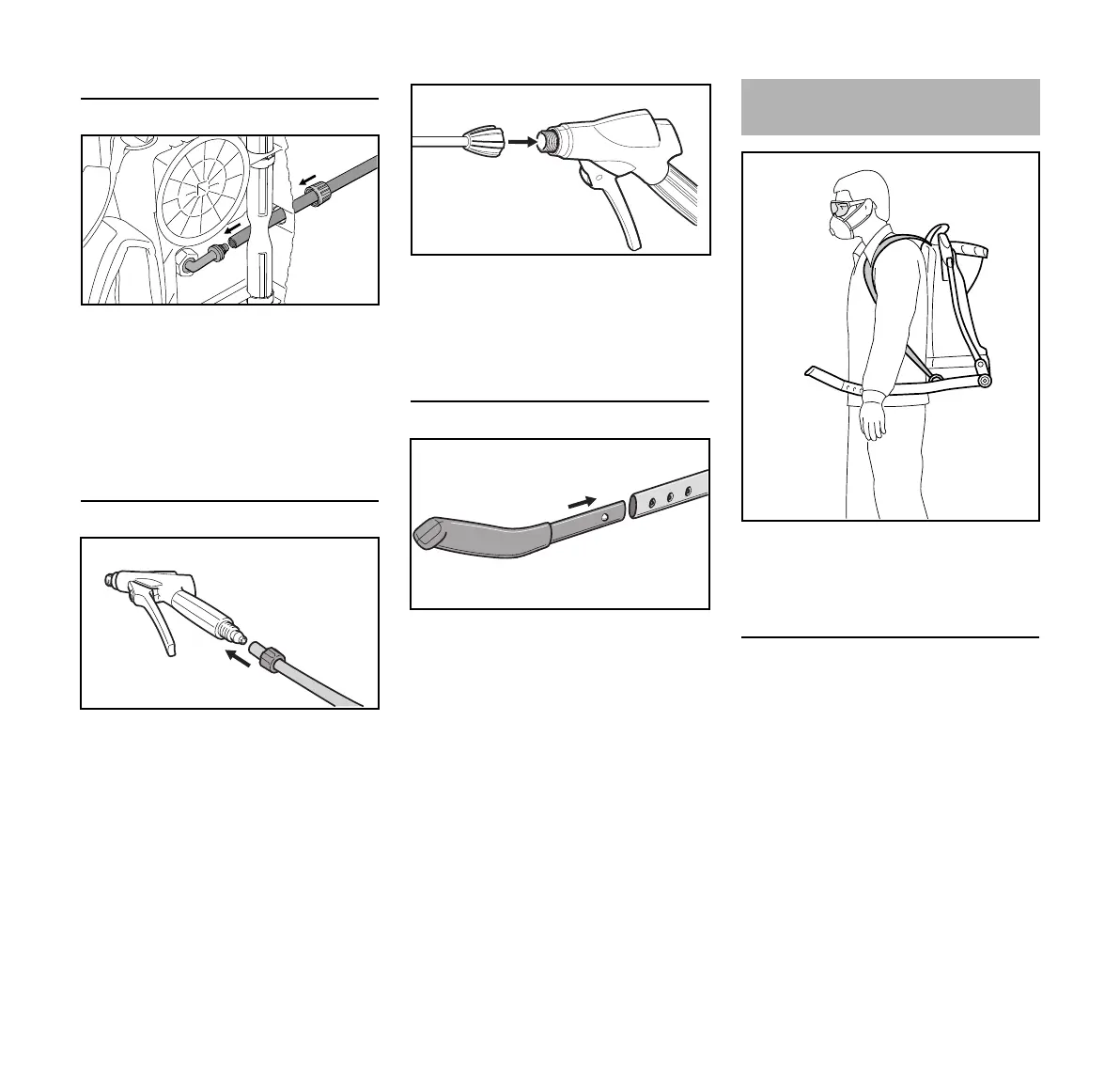

Connecting Hose to Unit
N Push the union nut (2) over the
hose (1).
N Push the hose (1) behind the shaft
and onto the elbow connector (3).
N Slip the union nut (2) onto the elbow
connector and tighten it down firmly.
Mounting the Spray Gun
N Push the union nut (2) over the
hose (1).
N Push the hose (1) onto the
connector on the gun (4).
N Tighten down the union nut (2)
firmly.
N Connect the wand to the spray
gun (4).
N Tighten down the union nut (5)
firmly.
Handle
The length of the handle (A, B, C) can be
adjusted to suit the operator.
N Push the handle into the lever.
N Adjust the harness straps so that
the backplate fits snugly and
securely against your back.
Adjusting Height of Harness Straps
The harness straps can be adjusted to
suit your physique.
2
1
3
8014BA049 KN
1
2
4
8014BA003 AS
8014BA004 AS
5
4
8014BA005 AS
A
B
C
Harness
8014BA029 KN

Stihl SG 51 Specifications

General

Volume	12 L
Material	-
Product color	Black, Orange, White
Quantity per pack	1 pc(s)

Weight and Dimensions

Weight	4500 g
