6 Mounting Instructions
The Smart Connector can be attached to any piece of gas-
or battery-powered outdoor power equipment with sufficient
surface area.
For the runtime detection features to activate, locate the
Smart Connector within 3.9 in. (10 cm) of the magnetic field
created by an electric motor or spark plug.
Before mounting, read and follow all warnings and safety
instructions provided with the power equipment. For STIHL
equipment, mount the Smart Connector in the manner and
in the locations specified in the STIHL App.
WARNING
￭ When mounting, use common sense to reduce the risk of
personal injury or property damage:
– Never mount the Smart Connector on product
handles, switches, controls, cooling inlets, guards or
moving parts.
– Ensure that no electrical parts, cables, fuel lines or
other components will be damaged if drilling holes or
using screws to install the STIHL Connector.
– Never cover safety warning labels or other on-
product markings.
– Never mount the Smart Connector in a manner or in
a location that interferes with proper working
technique or your ability to control the power tool.
– Never mount in areas on the tool that are exposed to
heat or sparks.

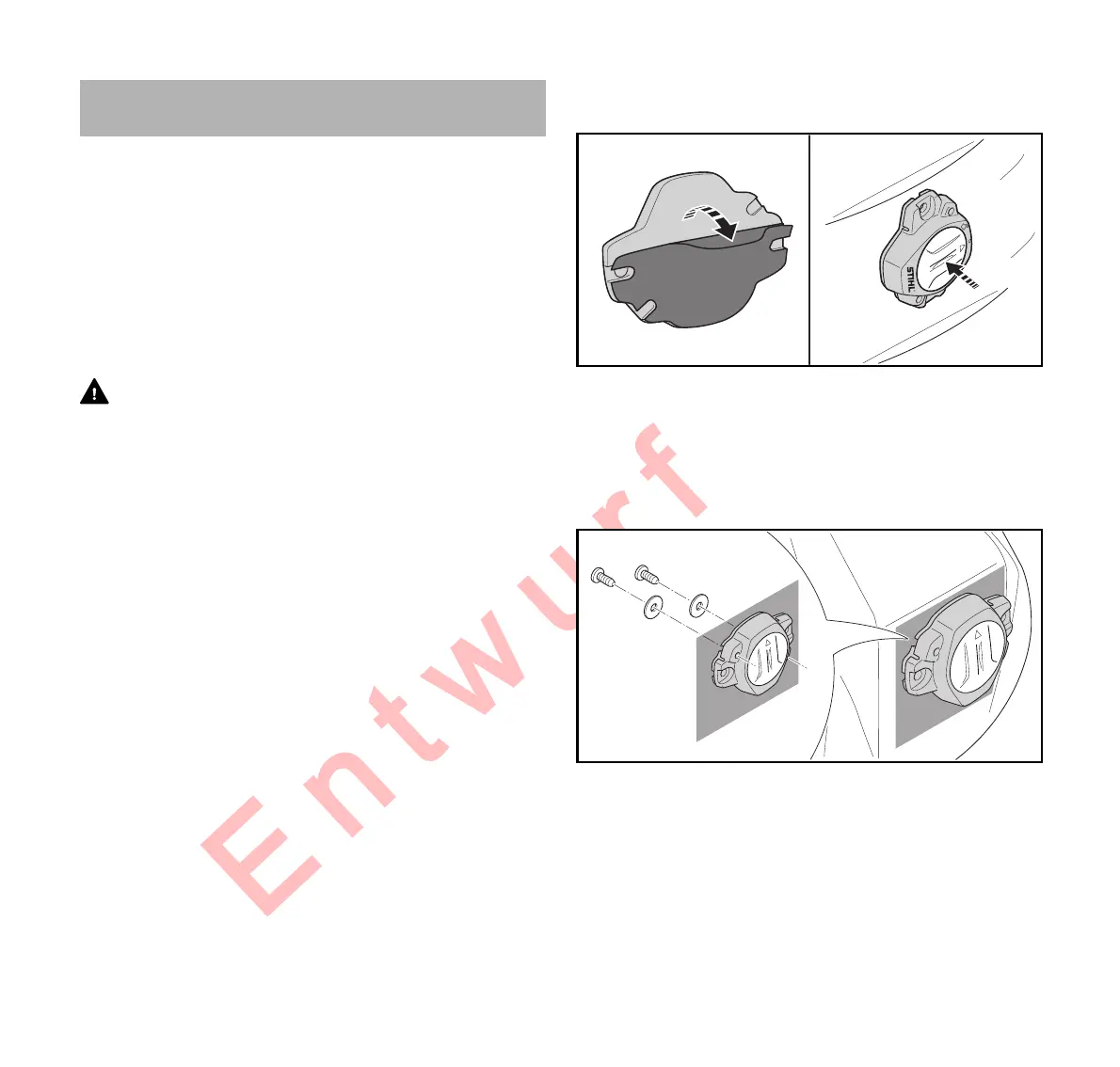

STIHL recommends mounting the Smart Connector with the
adhesive backing tape (Illustration A):
► Clean the surface with soap and water, removing any dirt
or debris.
► Peel back the adhesive backing film and press the Smart
Connector onto any flat surface until it is secure.
Alternatively, you can mount the Smart Connector using two
pan-head, self-tapping screws (Illustration B):
► Clean the surface with soap and water, removing any dirt
or debris.
► Always pre-drill the mounting holes using an appropriate
1/8 in. or 5/32 in. drill bit.
► Ensure that no electrical parts, cables, fuel lines or other
components will be damaged if drilling holes or using
screws to install the STIHL Connector.
6 Mounting Instructions
A
0000-GXX-0993-A0
B
0000-GXX-0994-A0
