SR 200
English
14
It may be necessary to correct the
adjustment of the throttle cable after
assembling the machine or after a
prolonged period of operation.
Adjust the throttle cable only when the
unit is completely and properly
assembled.

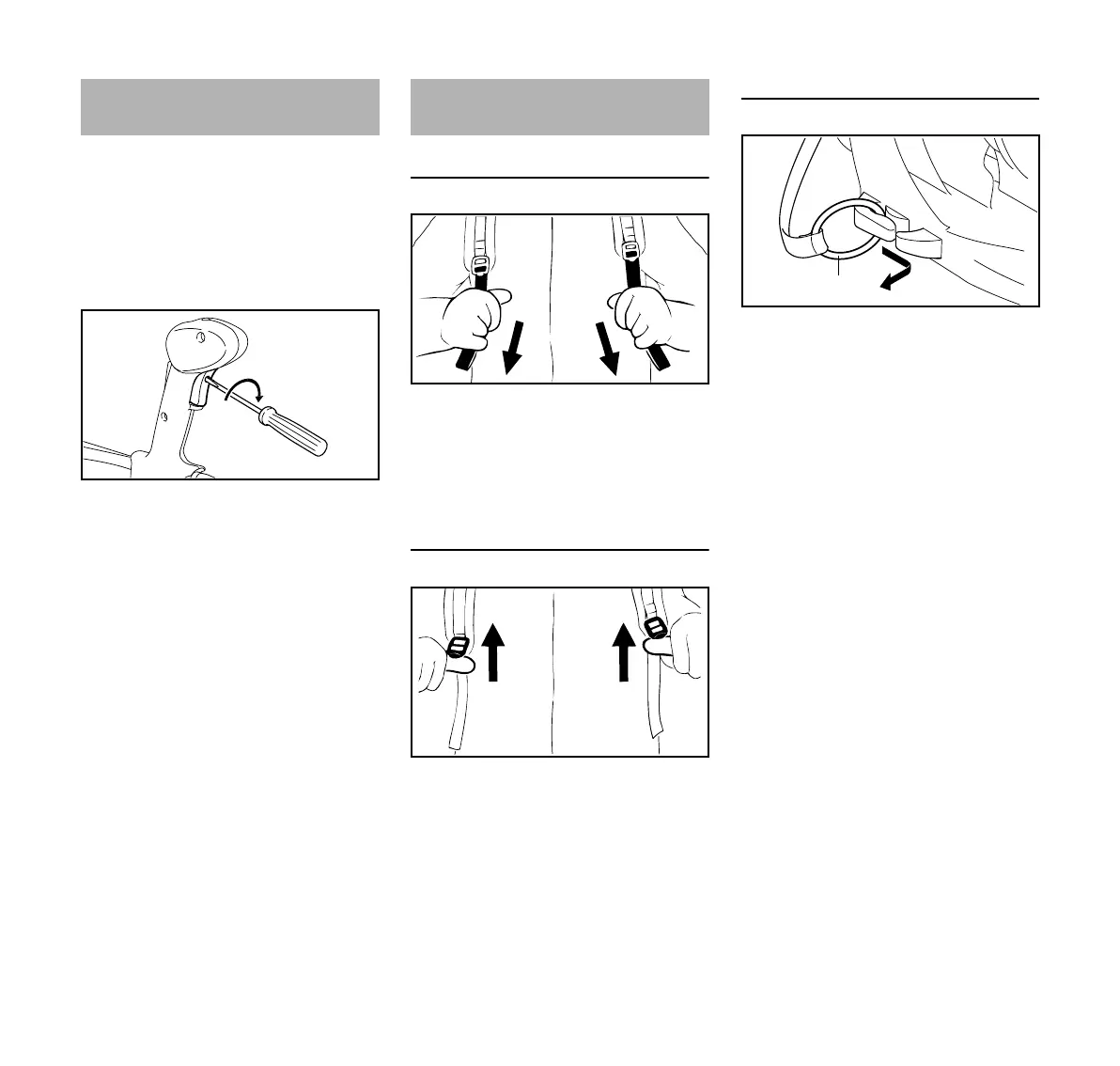

N Set throttle trigger to the full throttle
position – as far as stop.
N Carefully rotate the screw in the
throttle trigger in the direction of the
arrow until you feel initial resistance.
Then rotate it another full turn.
Adjusting the Harness
N Pull the ends of the straps
downwards to tighten the harness.
N Adjust the harness so that the
backplate fits snugly and securely
against your back.
Loosening the Harness
N Lift the tabs of the sliding adjusters.
Disconnecting Harness from Backplate
N Pull the ring (1) out of the slot.
Adjusting the Throttle Cable
Harness
