TS 700, TS 800
English
26

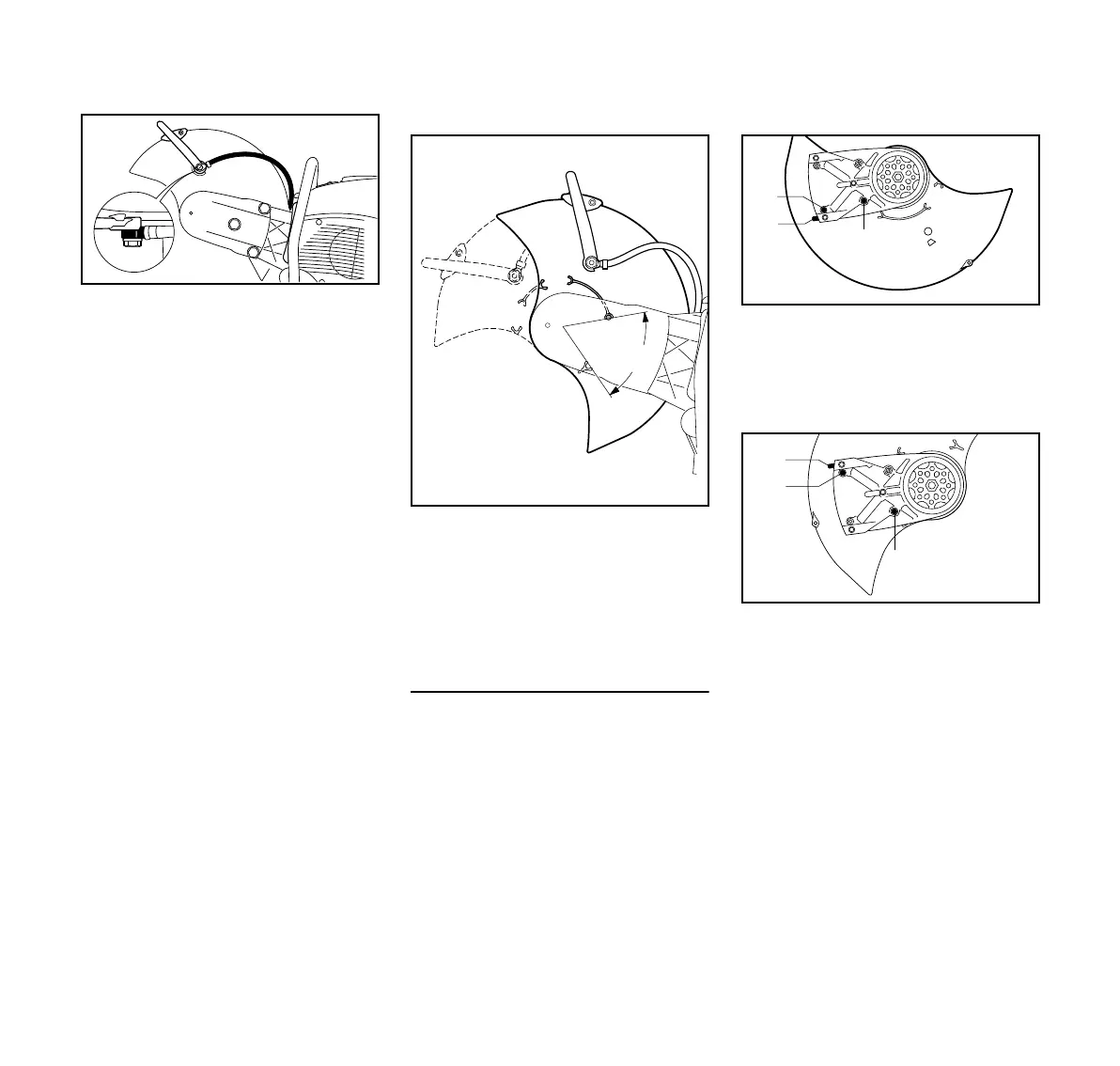

Connecting the water connection
N Insert the longer banjo bolt (1)
through the connector (2) of the
water attachment – observe the
position of the connector
N Insert the square nut into the guide
in the guard and hold it in place
N Fit the support with the longer banjo
bolt on the adjusting lever (3) –
screw in the banjo bolt and tighten
with the combination wrench
Checking the adjustment range of the
guard
N Rotate the guard forwards and
backwards as far as possible –
adjustment range (A) must be
limited by the stop pin
Continue as described in the chapter
“Tensioning the V-belt”.
Inboard mounting (TS 700)
N Disassemble the abrasive wheel
(see “Fitting / replacing an abrasive
wheel”)
N Remove the water attachment
N Remove the adjusting lever
N Slacken the V-belt
N Remove the V-belt guard
N Remove "support with guard"
Preparing the "support with guard" for
inboard mounting
N Unscrew the screw (1) of the limit
stop (2)
N Remove the limit stop (2)
N Unscrew the stop pin (3)
N Turn the guard so that it is in the
position shown (see picture)
N Screw in and tighten the stop pin (3)
N Insert limit stop (2) – align the hole
in the limit stop with the hole in the
bearing
N Insert and tighten the screw (1)
N Install the adjusting lever
N Mount "support with guard" – guard
on the inboard side
N Install the V-belt guard
N Connect the water connection
