Stihl TS700 User Manual

TS 700, TS 800
English
2

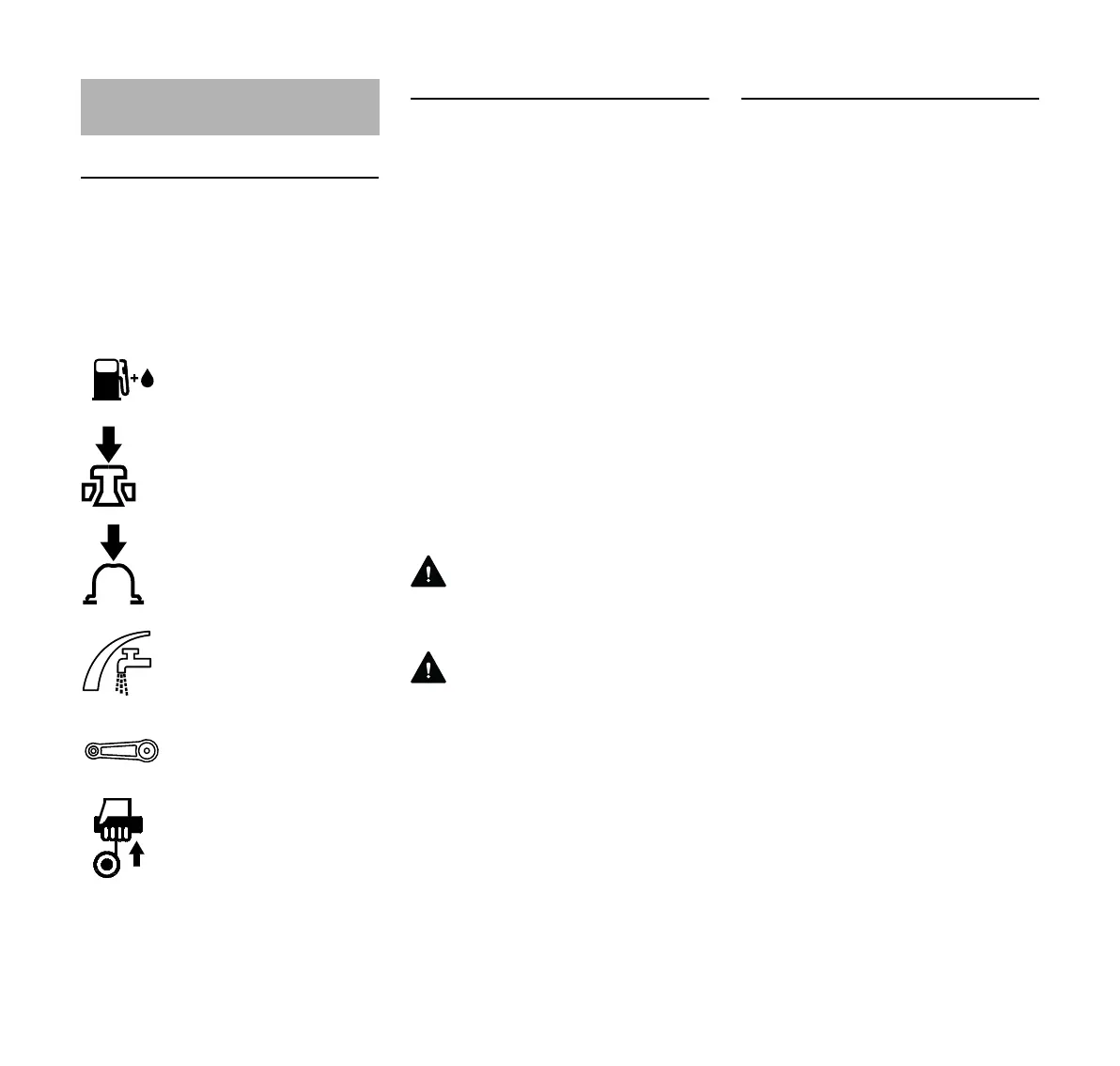

Pictograms
The meanings of the pictograms
attached to or embossed on the
machine are explained in this manual.
Depending on the model concerned, the
following pictograms may be on your
machine.
Symbols in Text
Many operating and safety instructions
are supported by illustrations.
The individual steps or procedures
described in the manual may be marked
in different ways:
N A bullet marks a step or procedure.
A description of a step or procedure that
refers directly to an illustration may
contain item numbers that appear in the
illustration. Example:
N Loosen the screw (1).
N Lever (2) ...
In addition to the operating instructions,
this manual may contain paragraphs
that require your special attention. Such
paragraphs are marked with the
symbols and signal words described
below:
DANGER
Indicates an imminent risk of severe or
fatal injury.
WARNING
Indicates a hazardous situation which, if
not avoided, could result in severe or
fatal injury.
NOTICE
Indicates a risk of property damage,
including damage to the machine or its
individual components.
Engineering Improvements
STIHL’s philosophy is to continually
improve all of its products. As a result,
engineering changes and improvements
are made from time to time. Therefore,
some changes, modifications and
improvements may not be covered in
this manual. If the operating
characteristics or the appearance of
your machine differs from those
described in this manual, please contact
your STIHL dealer or the STIHL
distributor for your area for assistance.
Guide to Using this Manual
Fuel tank for gasoline
and engine oil mixture
Press to operate decom-
pression valve
Press to operate manual
fuel pump
Water attachment, flow
control
Tensioning nut for engag-
ing drive belt
Pull starter grip

Stihl TS700 Specifications

General

Max. Engine Speed	9, 300 rpm
Displacement	98.5 cm³ (6 cu. in.)
Weight	25.6 lbs
Maximum Wheel Size	350 mm
Fuel Capacity	40 oz
Arbor Size	20 mm
Maximum Cutting Depth	125 mm (4.9 in)
