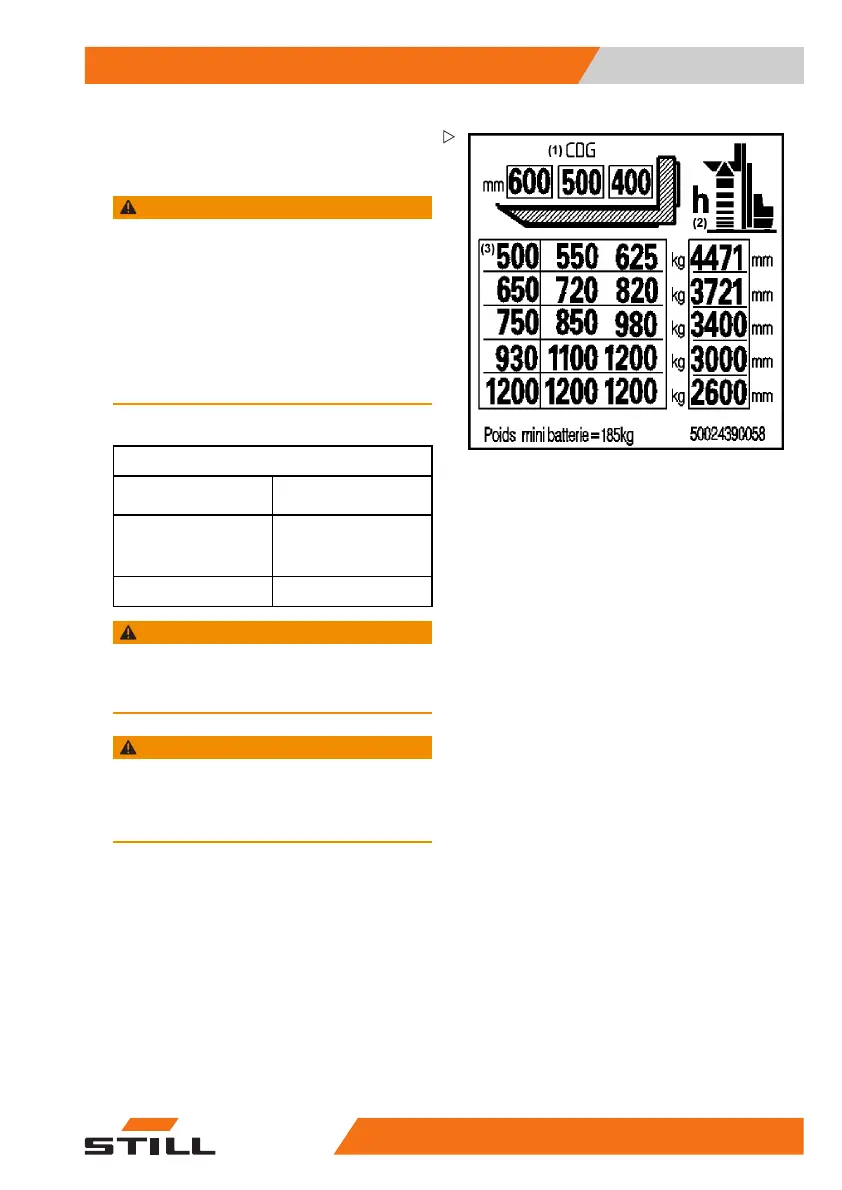

Application 4
Load placement
(1) CDG = distance "C" from the centre of
gravity of the load on the forks to the fork
carriage (in mm)
(2) h = lift height of the forks from the ground (in
mm)
(3) Maximum permissible loads "Q" (in kg)
Checks to be carried out befor
e lifting
aload
WARNING
Never exceed the capacity of the truck. This ca-
pacity is based on the centre of gravity and the lift
height of the load.
Comply strictly with the load diagram! It is not
permitted to increase the capacity by adding extra
weight to the truck. Never exceed the maximum
loads shown! Otherwise, the stability of the truck
cannolongerbeguaranteed.
Transporting people in order to increase the capa-
city of the truck is prohibited.
.
Example
Weight of load to
be
lifted:
1200 kg (3)
Distance between
the load centre of
gravity/fork carriage:
600 mm (1)
Permissible lift height: 2600 mm (2)
WARNING
The illustr
ations are only examples.
Only the v
alues stated on your truck's plate should
be taken in
to consideration.
WARNING
If small items are being transported or if the load
exceeds the height of the fork carriage, a load
protective guard must be installed to prevent the
items from falling on the operator.
