Still SU-20 - Stand with Lateral Battery Extraction Roller Unit (Optional)

Maintenance 5
Maintenance as required
Stand with lateral battery extraction roller unit (optional)
B
C
A
D
1
B
OM1343

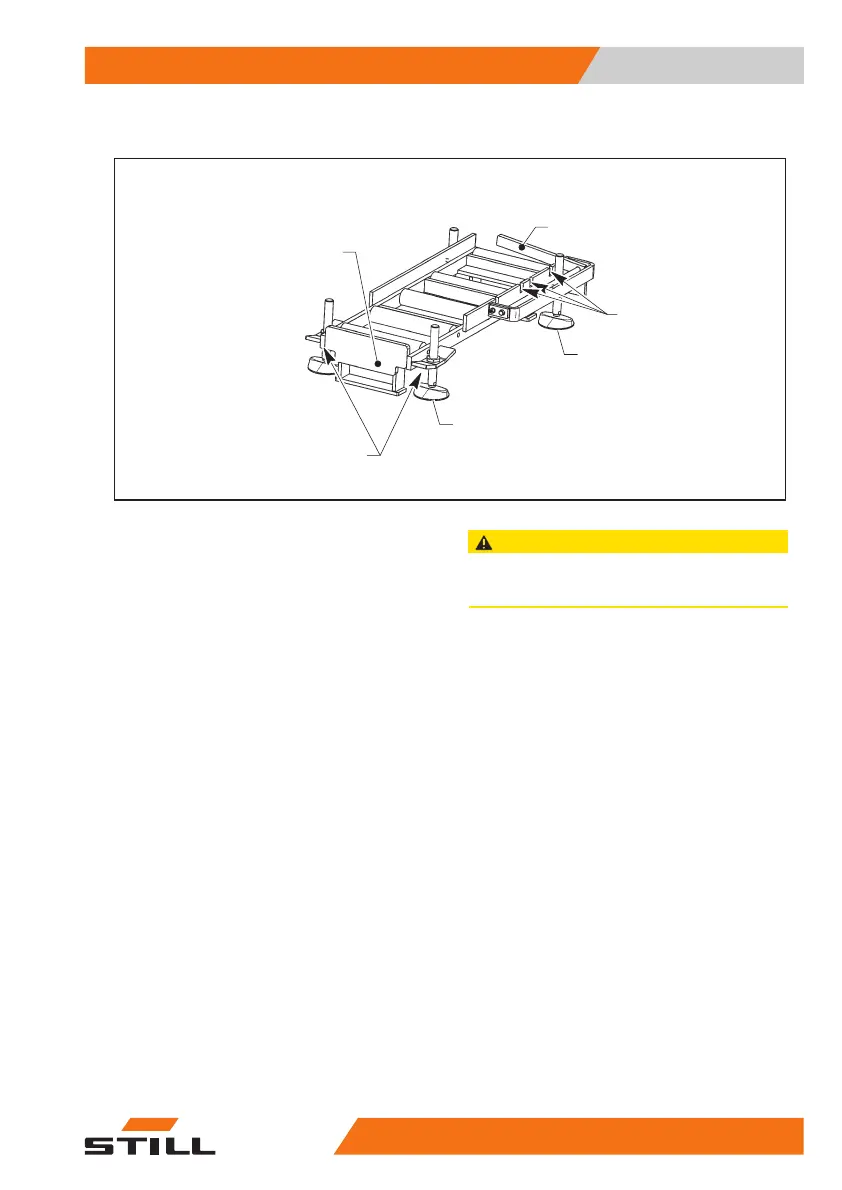

The stand is used as follows:
1) Position the stand with battery extraction
roller unit at the battery outlet.
2) Raise the battery latch A.
3) Line up the height of the stand with the
height at which the battery is to be removed;
the height adjustment is made using the
adjustable supports B.
CAUTION
Adjust the height of the supports so that the surface
of the roller unit is perfectly horizontal.
4) Slide the battery up to the mechanical stop
C.
5) Slide the battery latch A and insert it into the
most appropriate slot of those available D to
lock the battery into place.
