Stinger ELEV8 UN1880 - Wiring and Connections; 16 Pin Power; Speaker Harness; 24 Pin AV; Rear Camera Harness

Connect radio power and speaker connections to a vehicle specific harness
(sold separately) referencing diagram below.

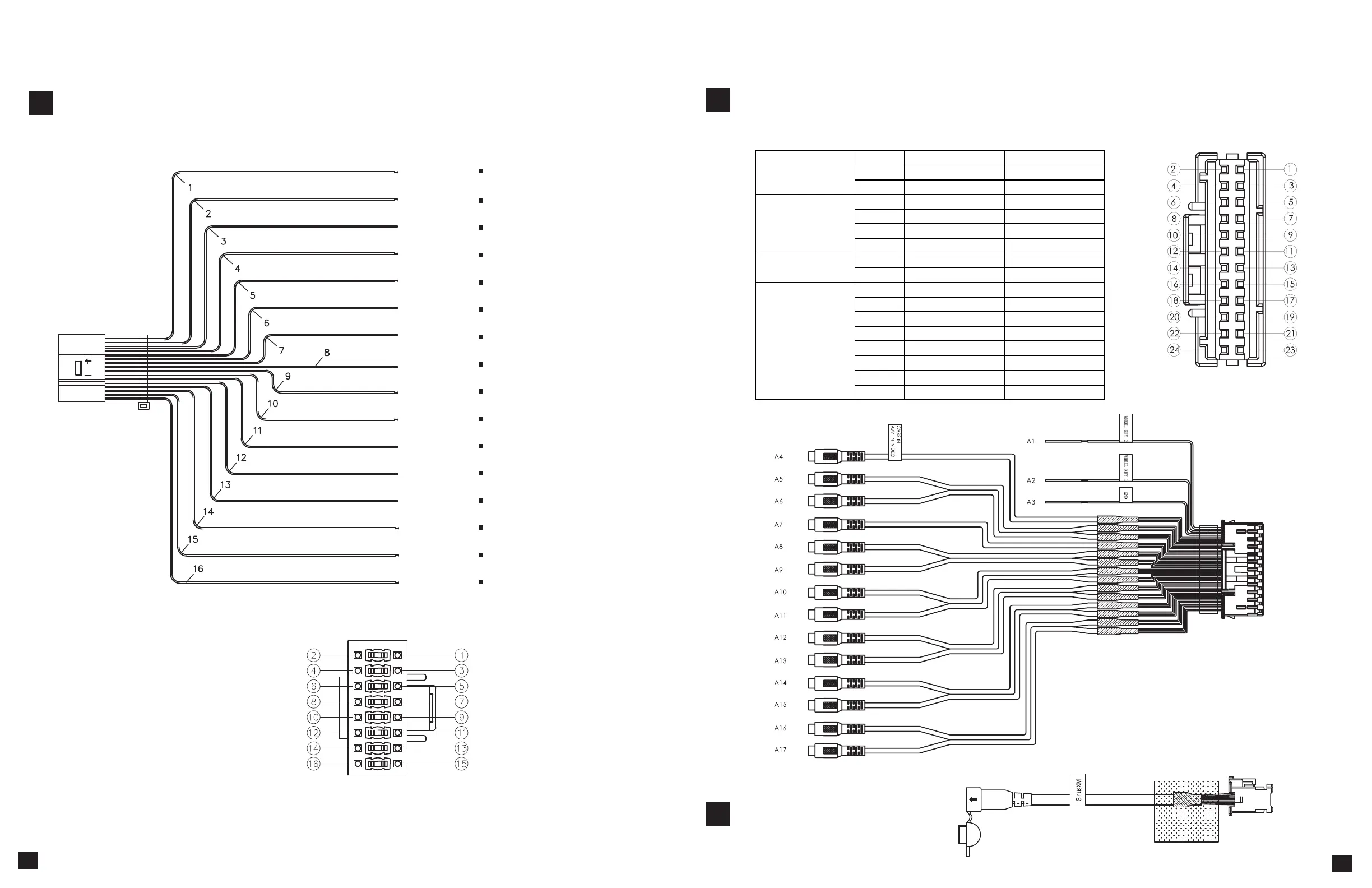

16 Pin Power / Speaker Harness
Green/Black Rear Left Speaker -
White/Black Front Left Speaker -
Green Rear Left Speaker +
White Front Left Speaker +
Purple/Black Rear Right Speaker -
Grey/Black Front Right Speaker -
Purple Rear Right Speaker +
Grey Front Right Speaker +
Blue Power Antenna +
Green/White Reverse Trigger +
Blue/White Amp Remote +
Pink Parking Brake -
Red Accessory 12V +
Orange Illumination
3
+
Black Ground -
Yellow Battery 12V +
3
Illumination wire must be connected
for Day/Night and Auto Dimming to
work.
Connector View is pin side
Connector View is pin side
18
19
A1 Brown / Black SWC Key 2
A2 Brown SWC Key 1
A3 Black SWC Ground
A4 Yellow RCA Video Input
A5 White RCA Audio Input Left
A6 Red RCA Audio Input Right
A7 Yellow RCA Camera Input
A8 Yellow RCA Video Output 1
A9 Yellow RCA Video Output 2
A10 White RCA Zone 2 Left
A11 Red RCA Zone 2 Right
A12 Red RCA Right front
A13 White RCA Left Front
A14 Red RCA Right Rear
A15 White RCA Left Rear
A16 Brown RCA Left Subwoofer
A17 Blue RCA Right Subwoofer
Analog Steering
Wheel Control Input
Audio / Video Input
Video Output
Audio Output
24 Pin AV / Rear Camera Harness
Audio/Video Inputs & Outputs / Rear Camera Video Input / Resistive Steering Wheel
Control Inputs - To program SWC, go to SETTINGS, then select the Gear Icon,
Passcode: 15500 > OK > SWC CUSTOM. Do not use if using a PAC SWI Interface.
SiriusXM
®
Harness
For connecting optional SiriusXM
SXV 300 satellite radio tuner.
Wiring and Connections
Wiring and Connections
4
4
Video Outputs 1 and 2 are the same signal.
