MODEL: PRI40LP PRODUCT CODE:51578 03/2016
Getting Started (Cont.)

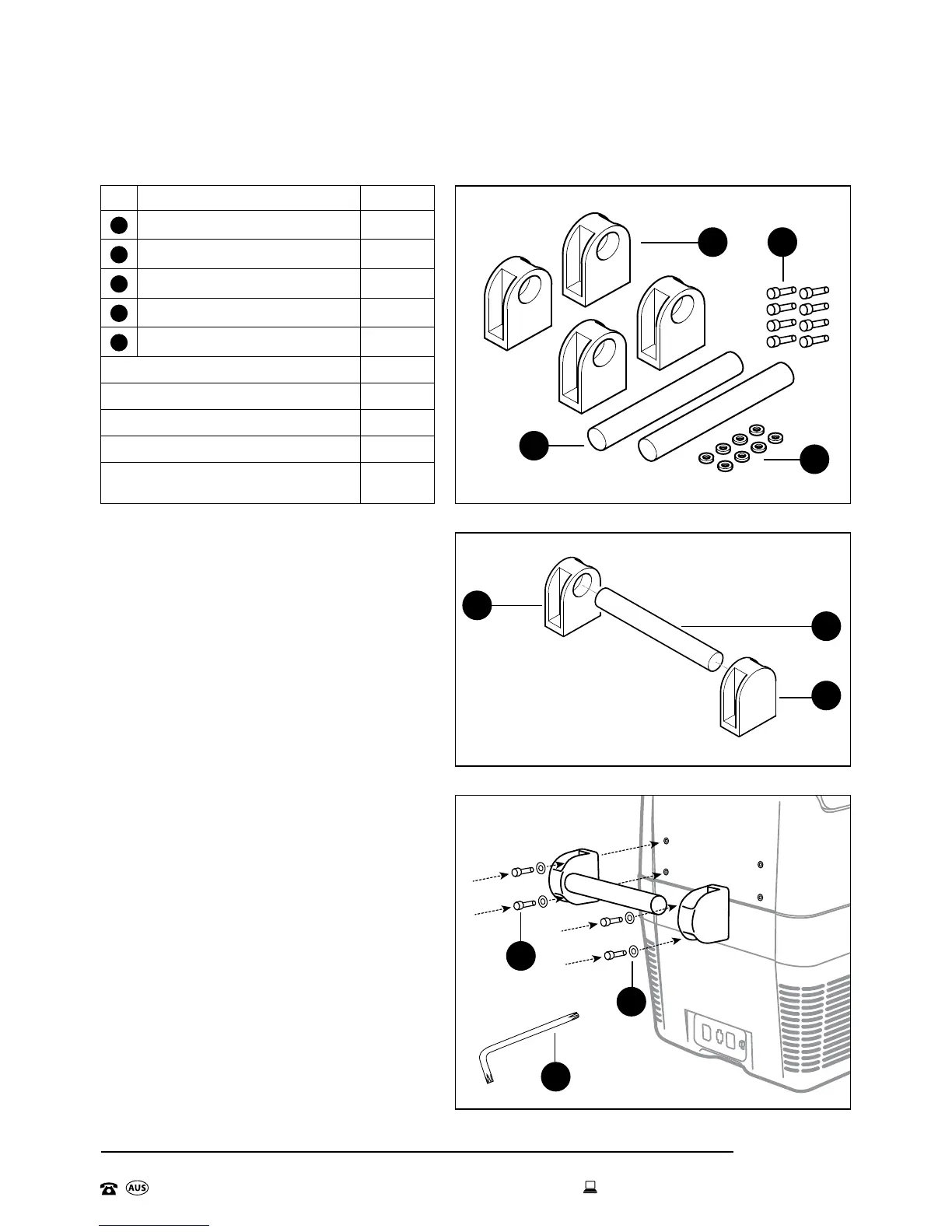

Included Parts and Tools
Handle Assembly
Kit mounting
• Mount the stands (3) on the
round tubular component (2)
Handle Installation
• Assemble the handles to the
cabinet using the screws (4),
washers (1) and Allen key (5)
provided.
• Attach one bracket, insert the
handle tube, and then attach the
second bracket.
NOTE: You are supplied with
two handle kits
No. ITEM PIECES
1
Washer 8
2
Round tubular component 2
3
Stand 4
4
Screws 8
5
Allen Key 1
Handle Assembly Kit (see below) 2
Instruction Manual (not shown) 1
Quick Start Guide (not shown) 1
Warranty Card (not shown) 1
Transit Bag: 600D Padded
(see page 7)
1
1
REFRIGERAZIONE MOBILE - FRIGOBAR
TB SERIES
18 TB_SERIES_rev. 03-2011
ENGLISH
HANDLE INSTALLATION (OPTIONAL)
TB31-TB31A-TB41-TB41A-TB51-TB51A
Handle kit
The handle installation kit consists of:
1 - washer No. 4 pcs
2 - split spring washer No. 4 pcs
3 - round tubular component No. 1 pc
4 - stand No. 2 pcs
Kit mounting
mount the stands (4) on the circular component (3)
Handle Installation
Remove the screws (5) from the trunk.
Fit washer (1) to the end of the handle (4).
Insert the screw (5) on the handle (4) and at its end insert the split spring washer (2).
Tighten the screws (5) to the trunk.
3
3
2
4
5
3 4
2
1
